Control unit
Overview
For: Air 4D / Voltage: 12V / SF / HA / Glow plug 3333
Technical

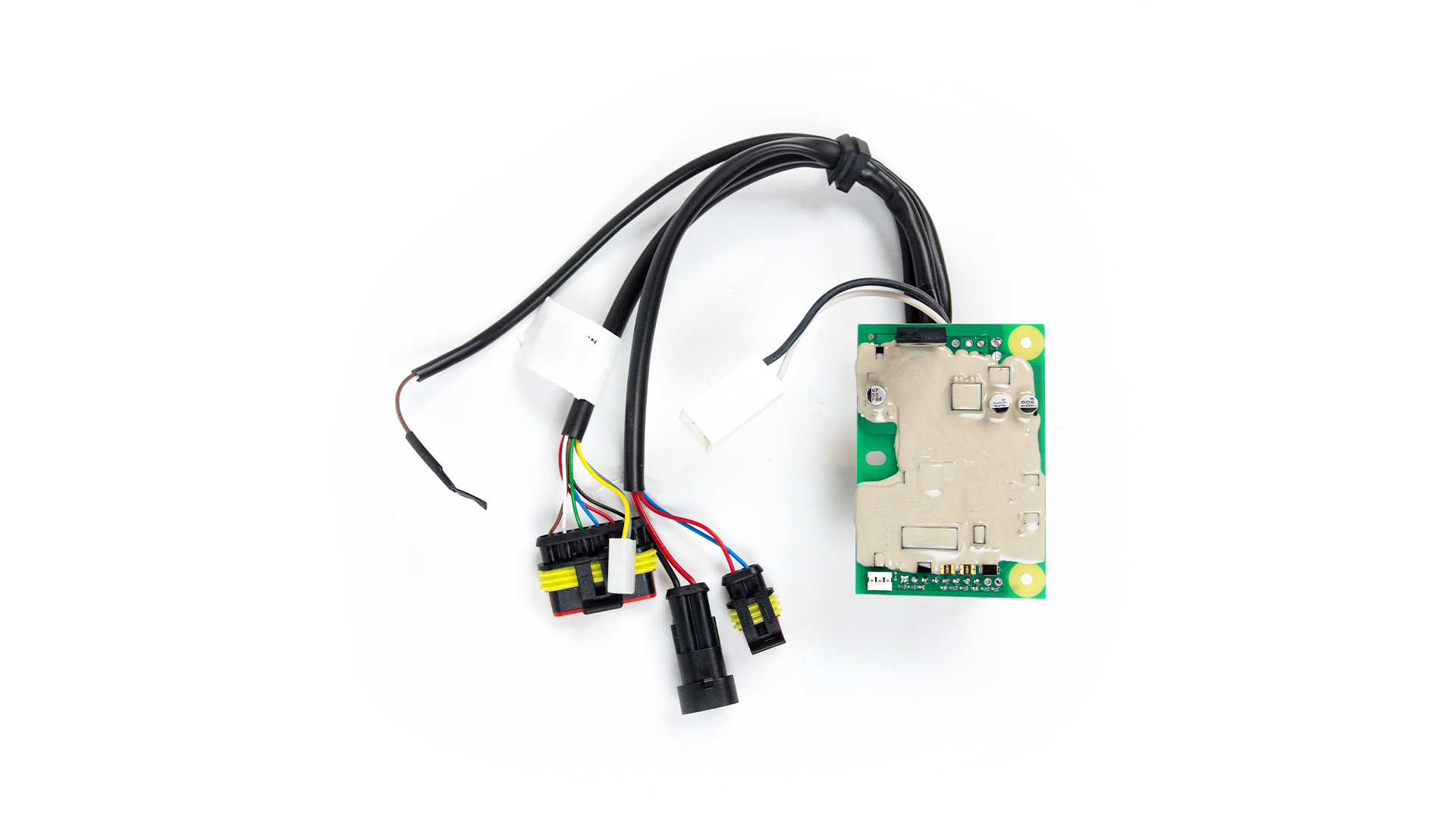

Control unit 12V, assy.6358
This 12V control unit is compatible with AUTOTERM Air 4D heaters equipped with the following air pumps (assy numbers):
Suitable for heaters with the following serial numbers:
- 5741xxxxxxx
- 6356xxxxxxx
Compatible with Glow Plug assy.3333
Compatible with Air Pump assy.5743
Please note - that this control unit has the updated work algorithm on the temperature mode. This means that in temperature mode heater will turn off when it reaches a set temperature instead of the previous version when it lowers the power.
A heater equipped with this control unit can work at altitudes up to 4200 meters above sea level (MASL).
NOTE! This is a new version of the old control unit (assy. 5744)!
Dimensions
| Weight (kg) | 0.14 |
|---|---|
| Length (cm) | 140.0 |
| Width (cm) | 120.0 |
| Height (cm) | 50.0 |
Attributes
| Voltage | 12v |
|---|---|
| Fuel | Diesel |
| Air heater | AUTOTERM Air 4D |
| Spare parts | Control units |
