Liquid heat exchanger with fan AUTOTERM CHX

Air flow: 190 m3/h / 12V / 2.5 kW / Color: Black

AUTOTERM CHX BLACK Matrix heat exchanger is designed to heat 1-2 rooms by separating the hot air with air pipes.

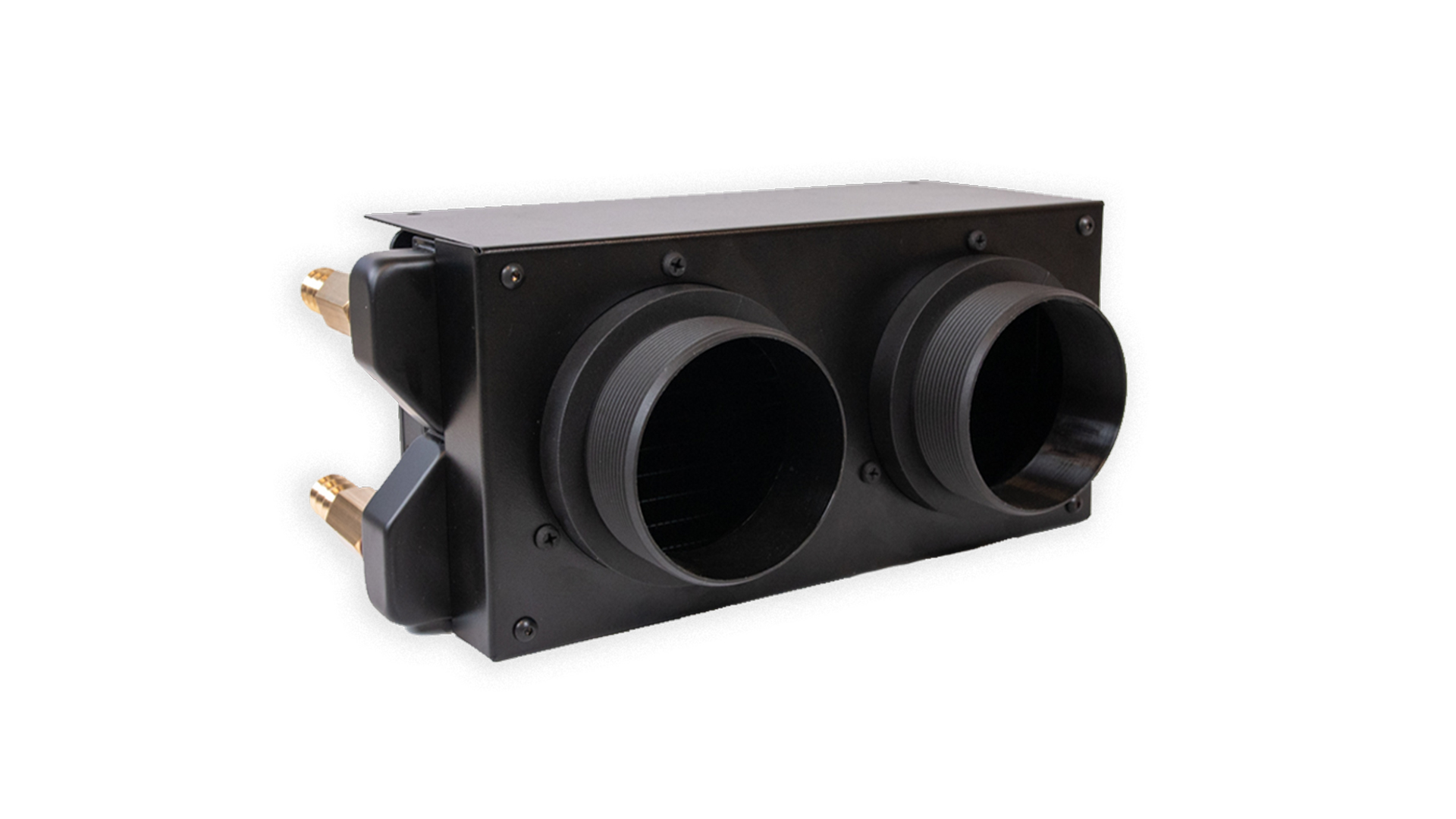

Allows to add up to 2x 75mm air pipes or can be used without them.

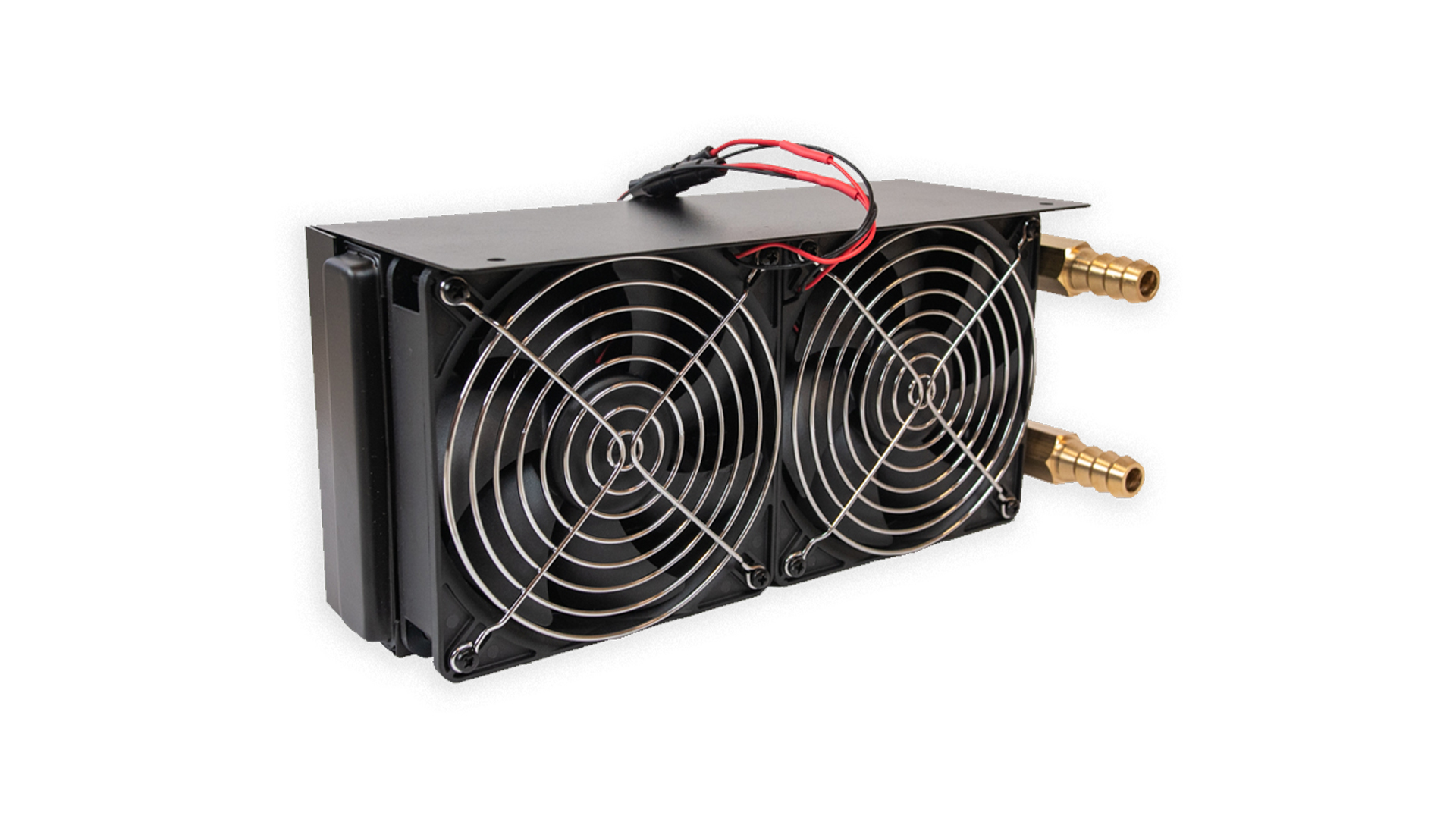

This matrix heat exchanger has 2 internal fans with a radiator. Each fan can be controlled additionally if needed or both together by a fan speed regulator.

With a heating capacity of 2,5 kW and a hot air flow rate of 190 m3/h AUTOTERM CHX is great for campervans, RV's & boats.

AUTOTERM CHX Black goes together with any AUTOTERM Flow series liquid heater.

Equipped with low noise & low power consumption fans, it is a great addition to comfort in your vehicle.

Control of AUTOTERM CHX:

• AUTOTERM FC9 - fan speed controller
• AUTOTERM CHM36 - thermal fan controller

(both controllers can be used for control of an AUTOTERM CHX Matrix heat exchanger)

Technical parameters:



Voltage:
12V
Heating capacity:
2.5 kW
Air flow rate:
190 m3/h
Air pipe connection diameter:
2x ø75
Max power consumption:
29 W
Fan motor max. speed:
3100 RPM
Number of silent fans: 2 Heating medium:
Ethylene glycol
Ethylene glycol MAX temperature
95 °C Max internal pressure:
2 bar

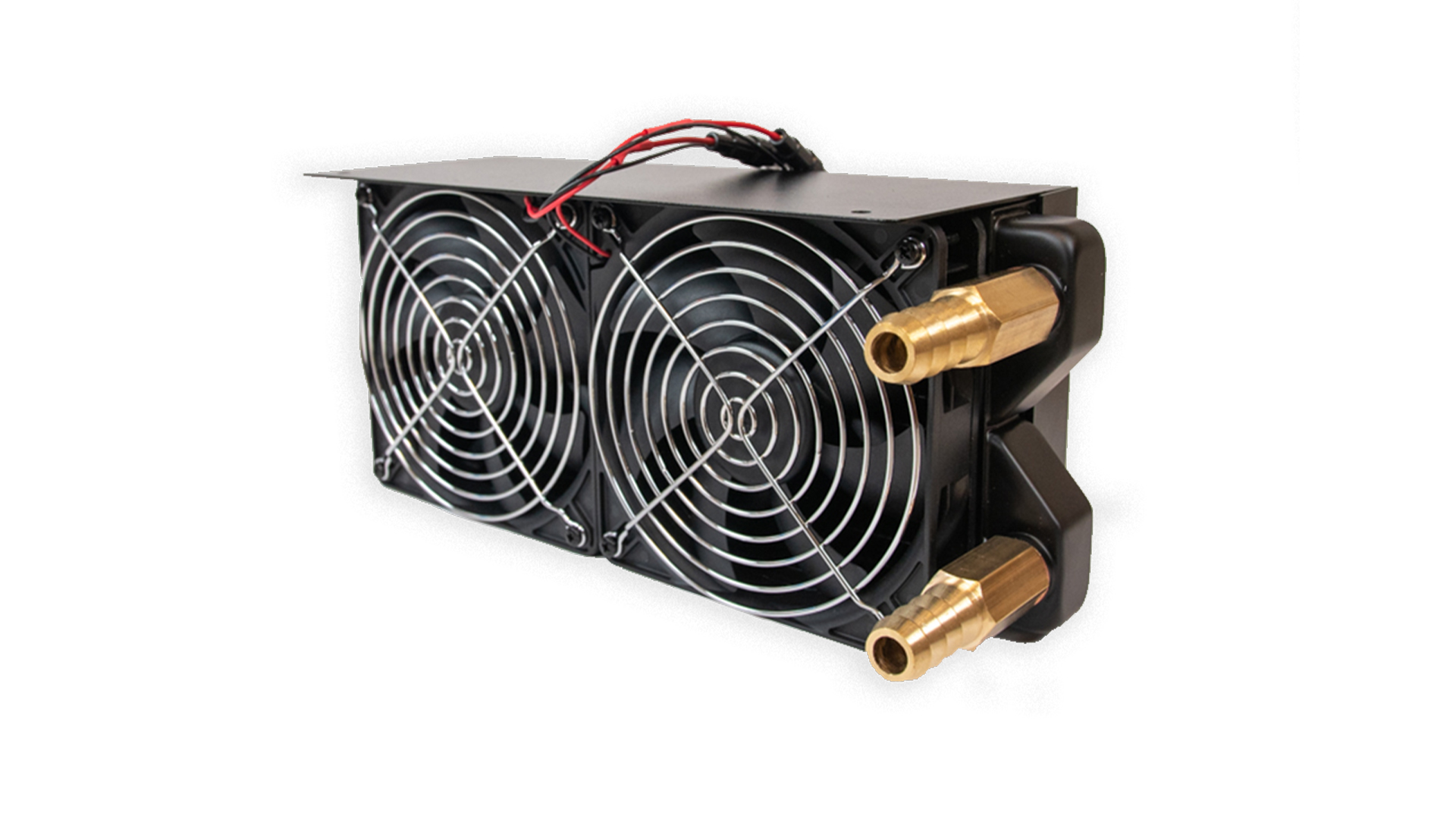

Inlet & outlet for ethylene glycol:
ø 16 mm
Front frame/body:
Powder coated metal
Weight:
1.7 kg
Dimensions:
273 x 123 x 118 mm
