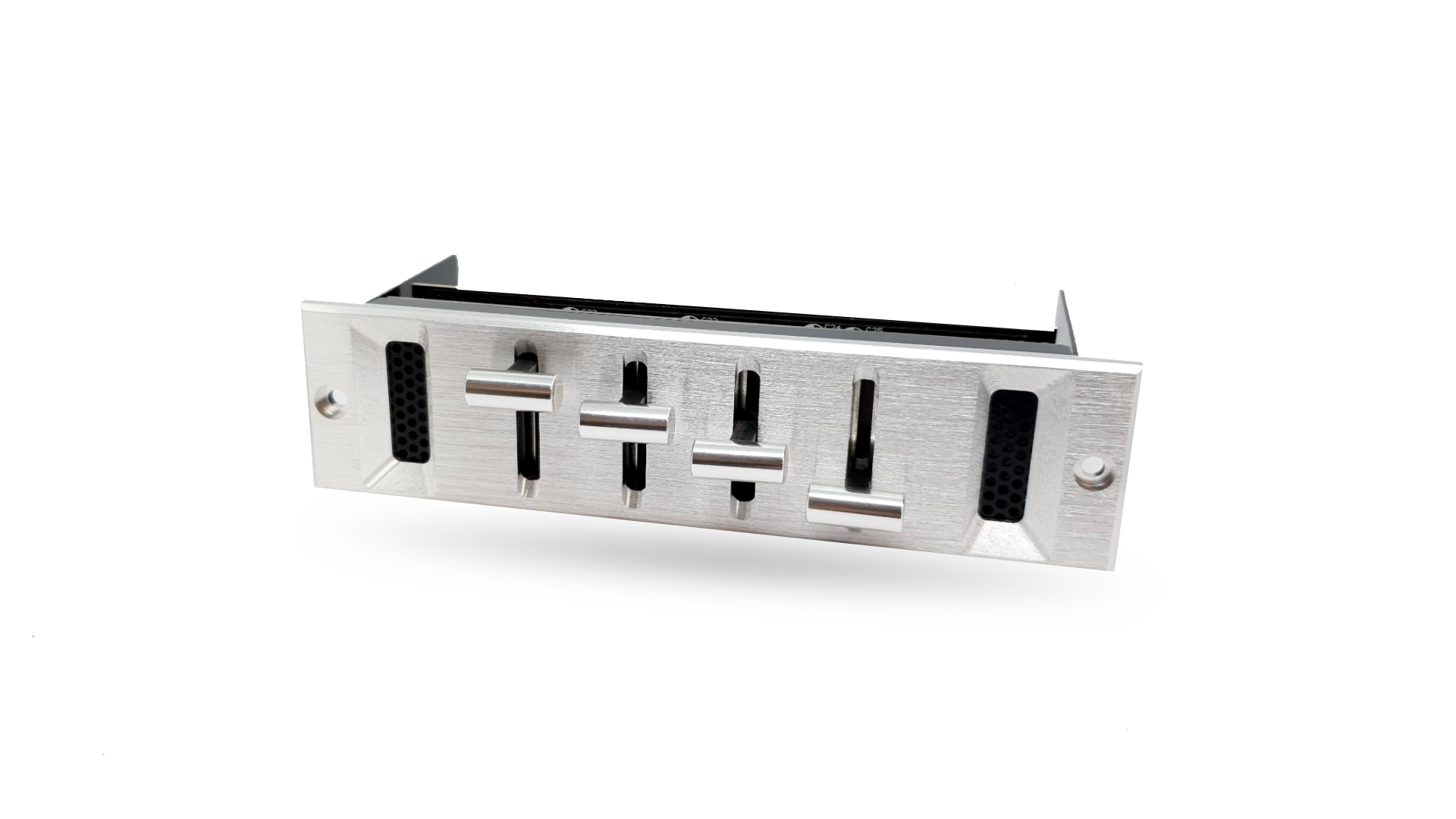

Fan speed control FC9

1-4 fan speed control /For: AUTOTERM CHX

AUTOTERM FC9 is a fan speed controller that goes perfectly together with the AUTOTERM CHX heating matrix.

FC9 is equipped with 4 sliders for smooth fan speed control. These 4 sliders can each be connected to a CHX heating matrix or each slider can be connected to an individual AUTOTERM CHX fan for even more precise control as each CHX heating matrix is equipped with 2 fans. This controller can be used together with AUTOTERM CHM36 thermal fan controller for best control of AUTOTERM CHX heating matrix.

Technical parameters:
Power output: up to 50W per channel
DC Input: +12V (standard 4-pin connector)
DC Output: 0V-12V DC
Control Channels: 4
LED Colour: White, Blue, Green,
Cyan, Red, Purple, Yellow

Dimension: 148.5 x 42.5 x 75 mm

Front body: Aluminium
