Liquid heat exchanger with fan AUTOTERM CHX

Air flow: 140 m3/h / 12V / 1.4 kW / Color: Silver

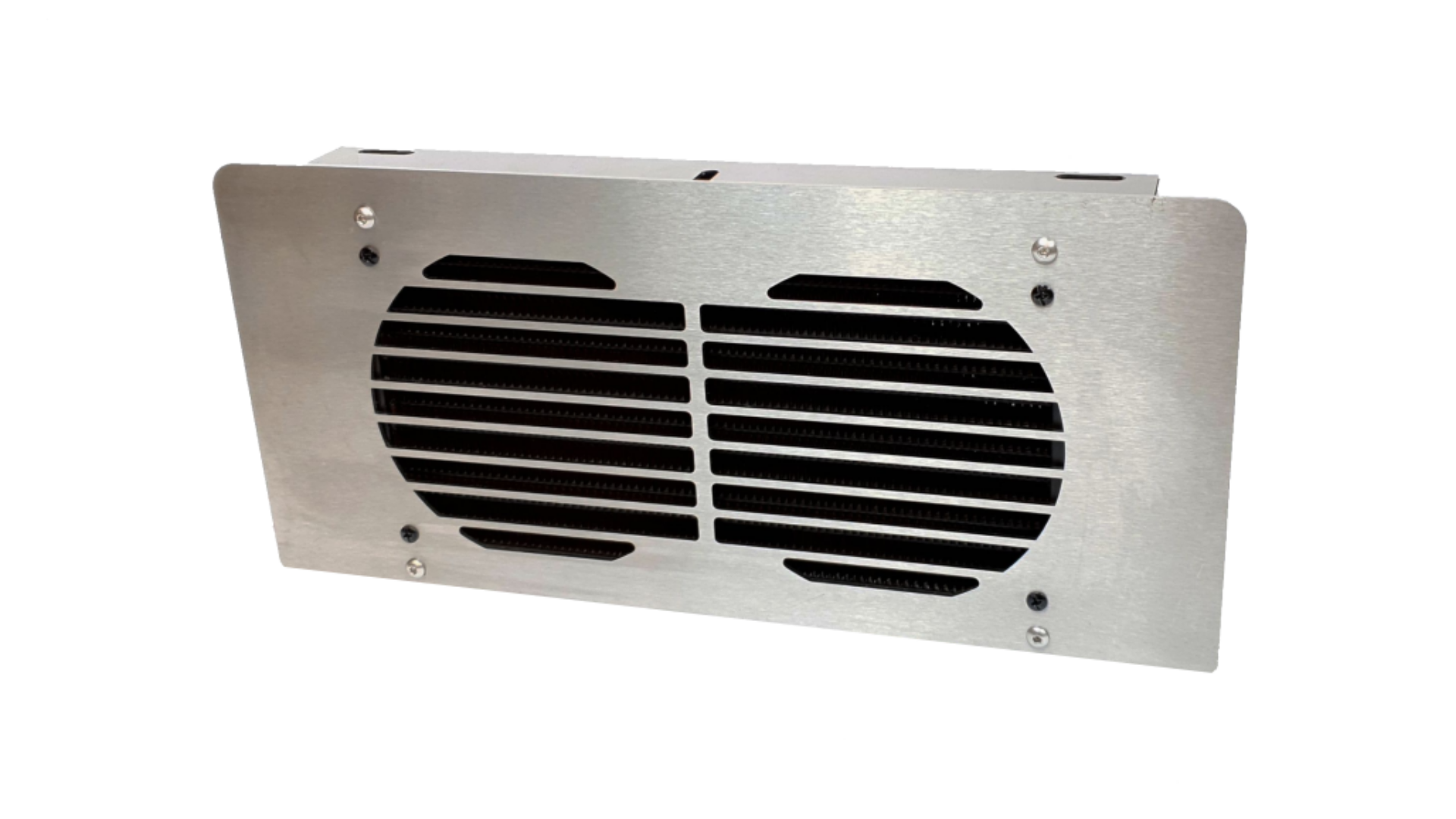

AUTOTERM CHX SILVER Matrix heat exchanger is meant for room heating.

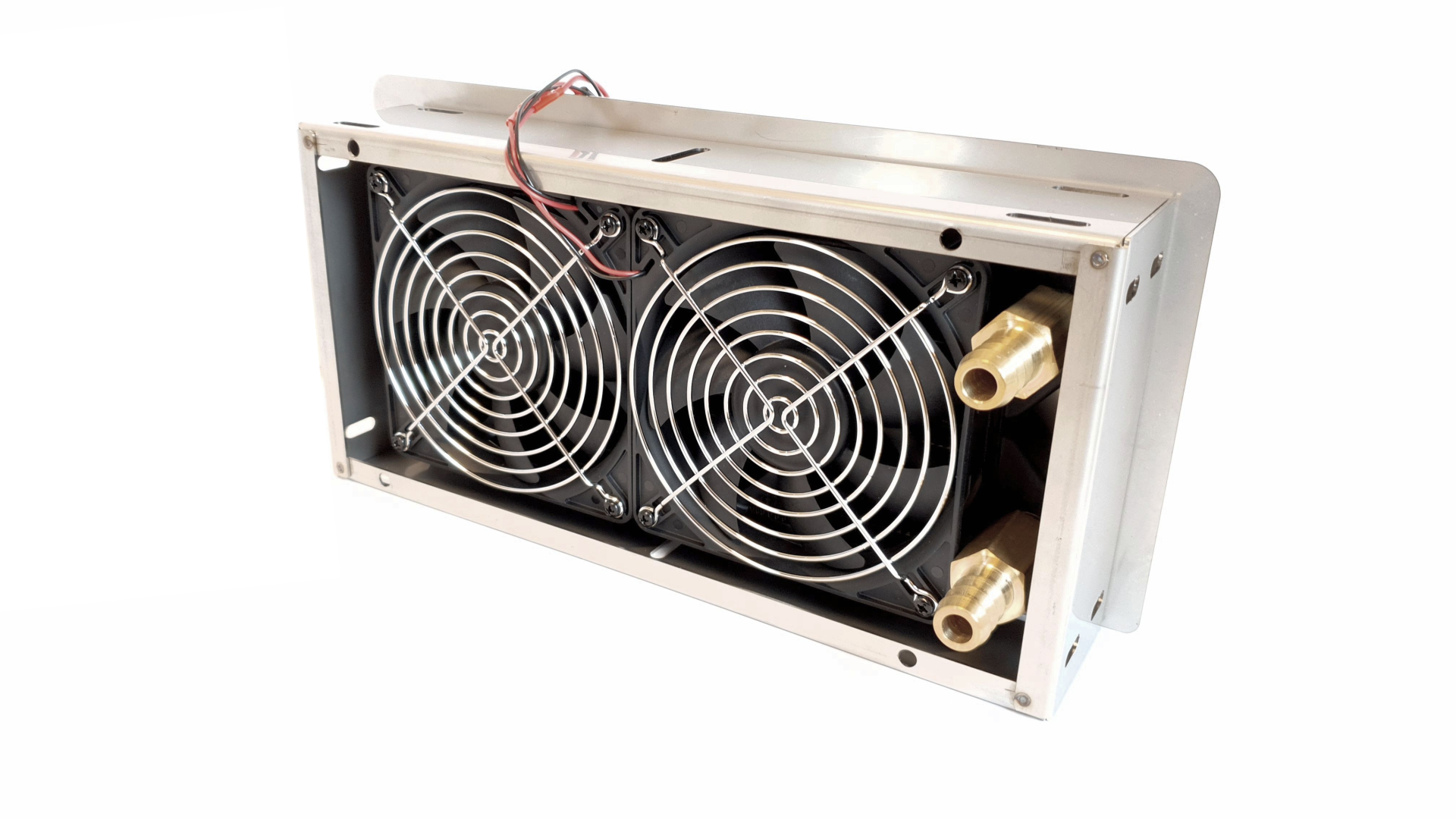

This matrix heat exchanger has 2 internal fans with a radiator. Each fan can be controlled additionally if needed or both together by a fan speed regulator.

With a heating capacity of 1,4 kW and a hot air flow rate of 140 m3/h AUTOTERM CHX is great for campervans, RV's & boats.

AUTOTERM CHX goes great together with any AUTOTERM Flow series liquid heater.

Equipped with low noise & low power consumption fans it is a great addition of comfort in your vehicle.

Control of AUTOTERM CHX:

• AUTOTERM FC9 - fan speed controller
• AUTOTERM CHM36 - thermal fan controller

(both controllers can be used for control of an AUTOTERM CHX Matrix heat exchanger)

Technical parameters:

Voltage:
12V
Heating capacity:
1.4 kW
Air flow rate:
140 m3/h
Air flow static pressure:
7.1 mm H20
Power consumption:
14 W
Fan motor max. speed:
3100 RPM
Fan noise level up to:
44.5 dB
Heating medium:
Ethylene glycol
Inlet & outlet for ethylene glycol:
ø 16 mm
Max internal pressure:
2 bar
Operating temperature range:
-10 C deg. +80 C deg.
Front frame/body:
Stainless steel (AISI 304)
Weight:
2.4 kg
Dimensions:
336.17 x 157 x 81.88 mm
