Cable wiring
Overview
For: Flow 5 / Voltage: 24V
Technical

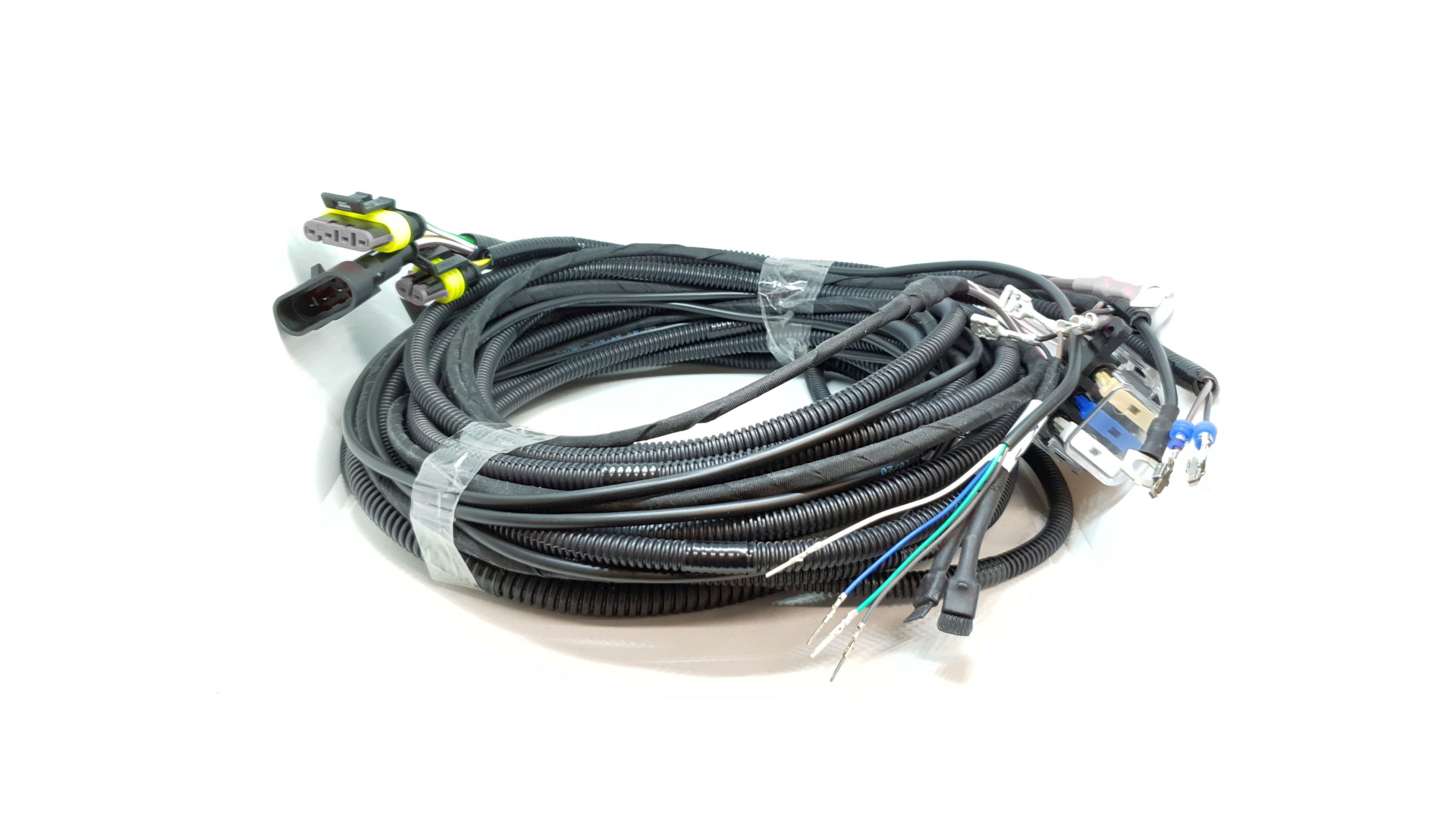

Cable wiring 24V, assy.4088
The wiring (without relay) is suitable for all 24V modifications of the liquid heater AUTOTERM Flow 5D.
Suitable with the following control panels:
- Control panel Oled Control
- Control panel Comfort Control
- Control panel Comfort Touch
This specific wiring complies with the Electrical liquid pump (assy.2763).
Dimensions
| Weight (kg) | 0.745 |
|---|---|
| Length (cm) | 230.0 |
| Width (cm) | 230.0 |
| Height (cm) | 70.0 |
Attributes
| Voltage | 24v |
|---|---|
| Category | Liquid heater |
| Liquid heaters | AUTOTERM Flow 5D/5B |
| Spare parts | Wiring |
