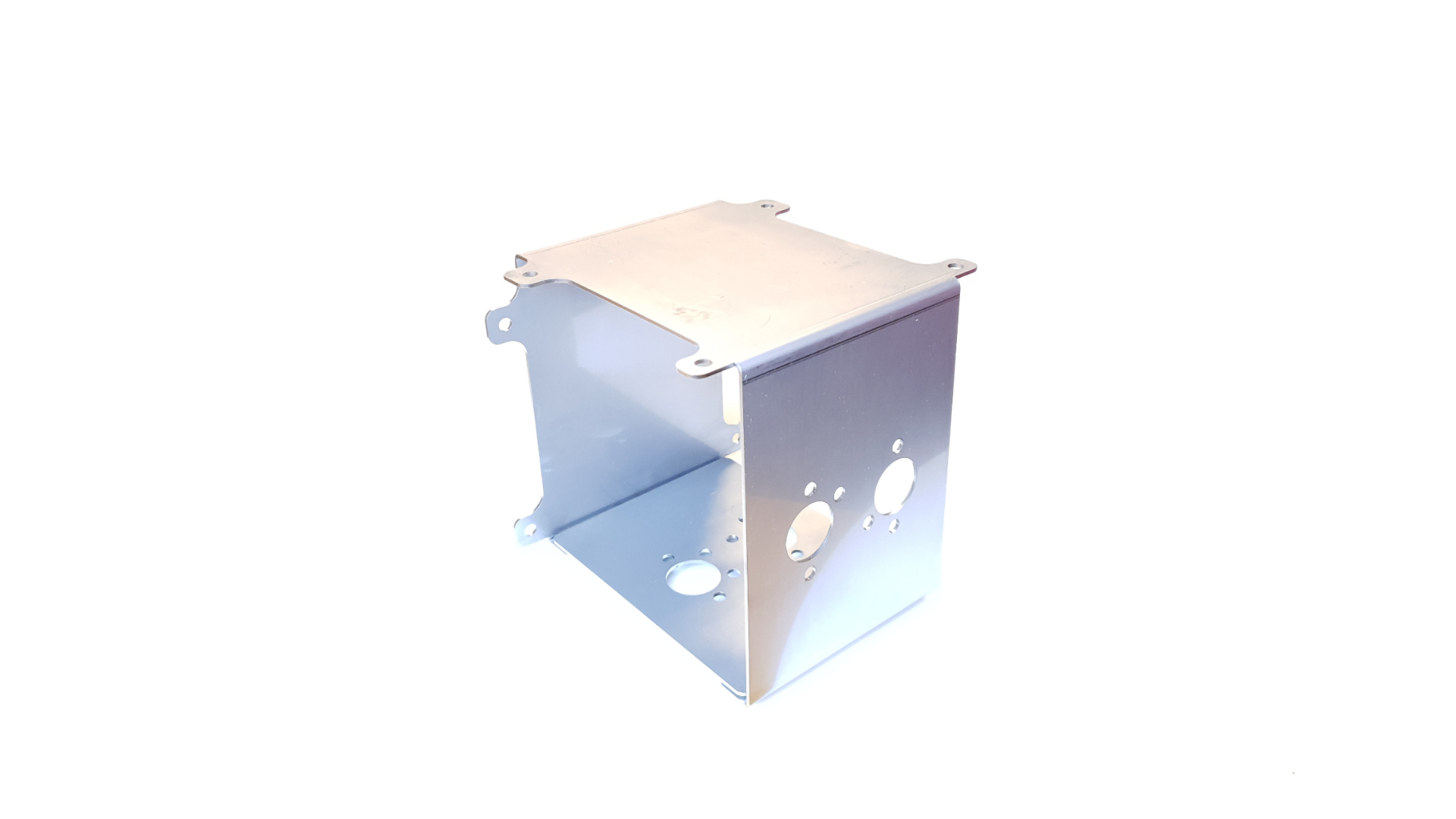

Mounting bracket, Universal

For: Air 2D; 4D / 173 x 170 x 17 / Stainless steel 316

This mounting bracket can be used as a stand-alone mounting bracket for:

AUTOTERM Air 2D

AUTOTERM Air 4D

Or as a support mounting bracket for the Mounting box (assy.AT0020), which is meant for the AUTOTERM Air 2D heater.

Material: Stainless steel (AISI 316)

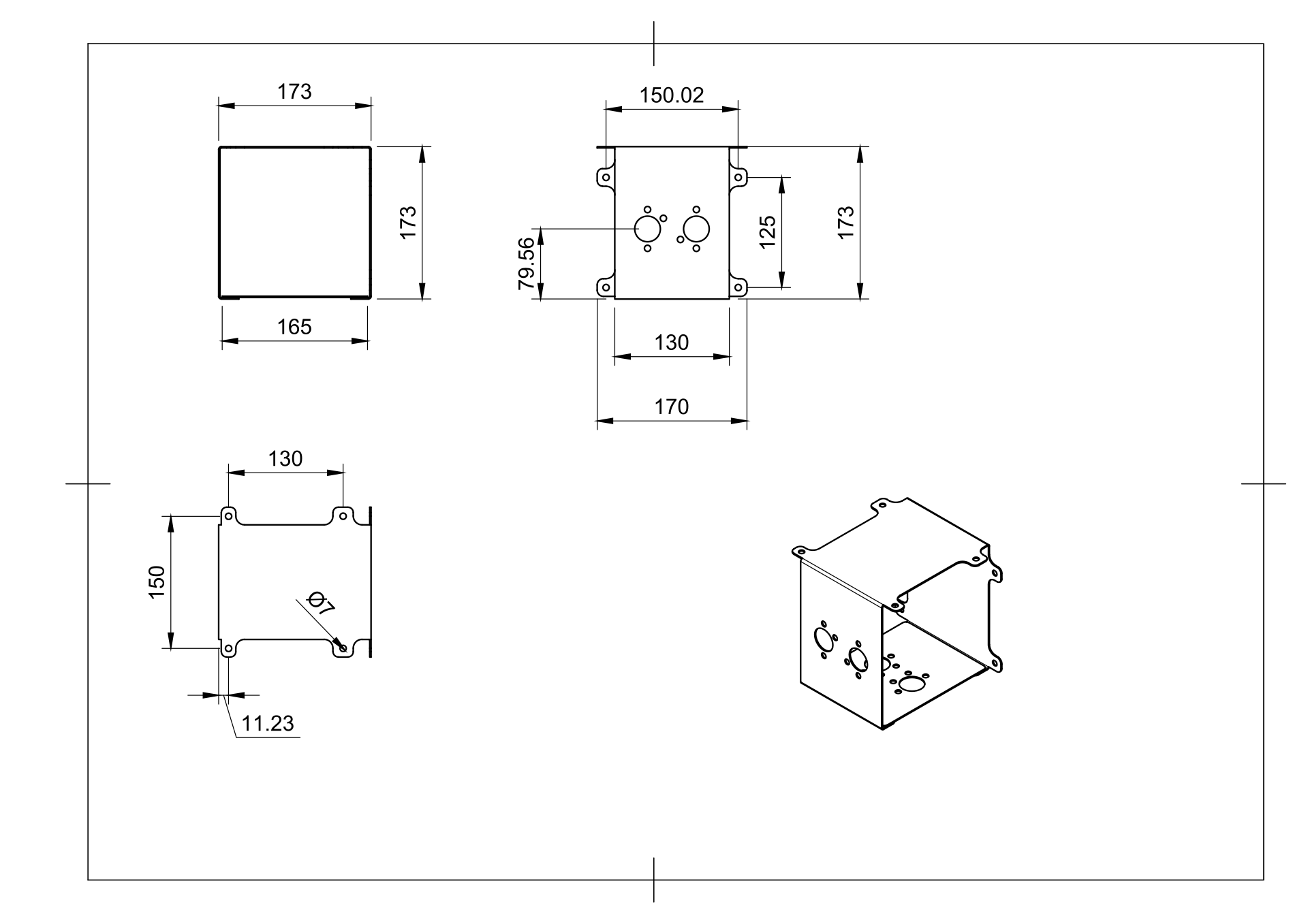

Dimensions: 173 x 170 x 170 mm

For mounting the Air 4D Mounting box (assy. AT5-0024-A24) it's necessary to choose our other mounting bracket type (assy. AT5-0025-A24).

** Please note that the heater's correct/allowed position & angle must be done according to the heater installation manual.

Note! The Assy number for this product has been changed from AT0019 to ATR5-0045-A24.

Wall installation with combustion air inlet / exhaust outlet positioned downward

Wall installation with combustion air inlet / exhaust outlet positioned to the side

Underfloor installation with combustion air inlet / exhaust outlet positioned downward

Underfloor installation with combustion air inlet / exhaust outlet positioned to the side

Installation above the floor with combustion air inlet / exhaust outlet positioned downward

Installation above the floor with combustion air inlet / exhaust outlet positioned to the side

Ceiling installation with combustion air inlet / exhaust outlet positioned downward

Ceiling  installation with combustion air inlet / exhaust outlet positioned to the side
