Liquid pump wiring, Dual type
Overview
Length 2.20 m / For: Flow 5 12V & Pierburg pump
Technical

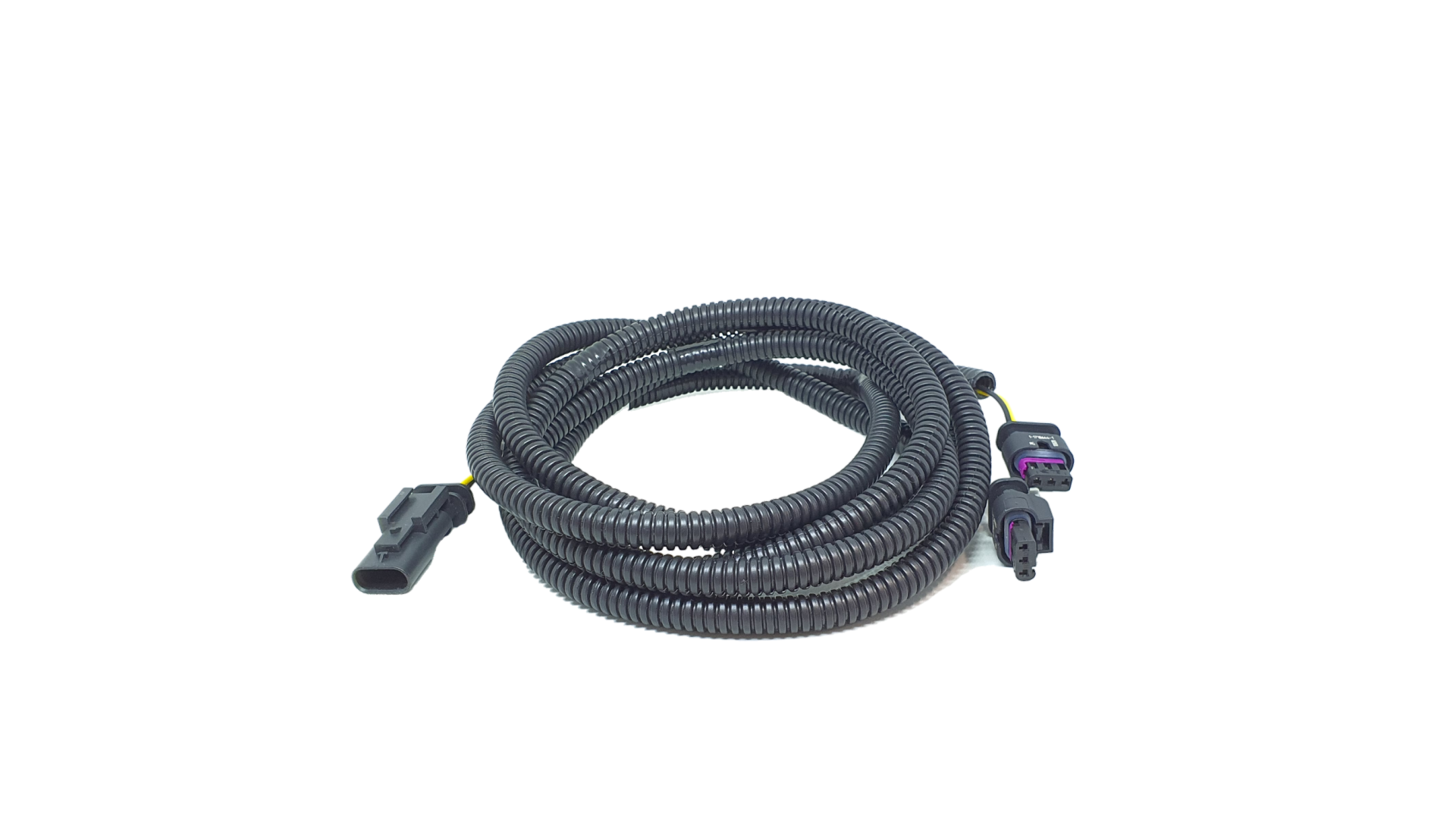

This liquid pump cable allows to connect 2 Pierburg liquid pumps to AUTOTERM Flow 5 (12V) heater.
Use of two Pierburg liquid pump connection to one AUTOTERM Flow 5 (12V) heater is used when 2 different circulations are needed.
Example:
Passive water heat exchanger linked with AUTOTERM Flow 5 heater in a motohome or boat to heat water for sink or shower. One Pump for circulation of coolant from AUTOTERM Flow 5 to heat passive water heat exchanger and second pump to circulate/heat the fresh water through the heated passive water heat exchanger.
This cable is suitable with following products:
Liquid heaters:
- AUTOTERM Flow 5 (12V versions)
Liquid pumps:
Length: 2.20 m
Dimensions
| Weight (kg) | 0.075 |
|---|---|
| Length (cm) | 15.0 |
| Width (cm) | 15.0 |
| Height (cm) | 3.0 |
Attributes
| Voltage | 12v |
|---|---|
| Category | Liquid heater |
| Liquid heaters | AUTOTERM Flow 5D/5B |
| Accessories | Electrical |
| Length | 2.20m |
