Liquid heat exchanger with fan ARIZONA 600
Overview
Technical
Voltage: 24V
Nominal air flow: 347 m3/h
This heat exchanger has a 3-speed fan
Heating capacity, Ethylene glycol: 5.9 kW
Inlet & outlet for ethylene glycol: ø16 mm
Front panel of liquid heat exchanger is heat resistant & removable
Maximum allowable inner temperature °C: 100
Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88
* 2-pin connector kit FR052 available separately - not included in kit
Liquid heat exchanger with the fan is suitable for all the following liquid heaters:
Manufacturer: SIROCO
About
It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.
As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to just to can be used to circulate air in the room.
As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.

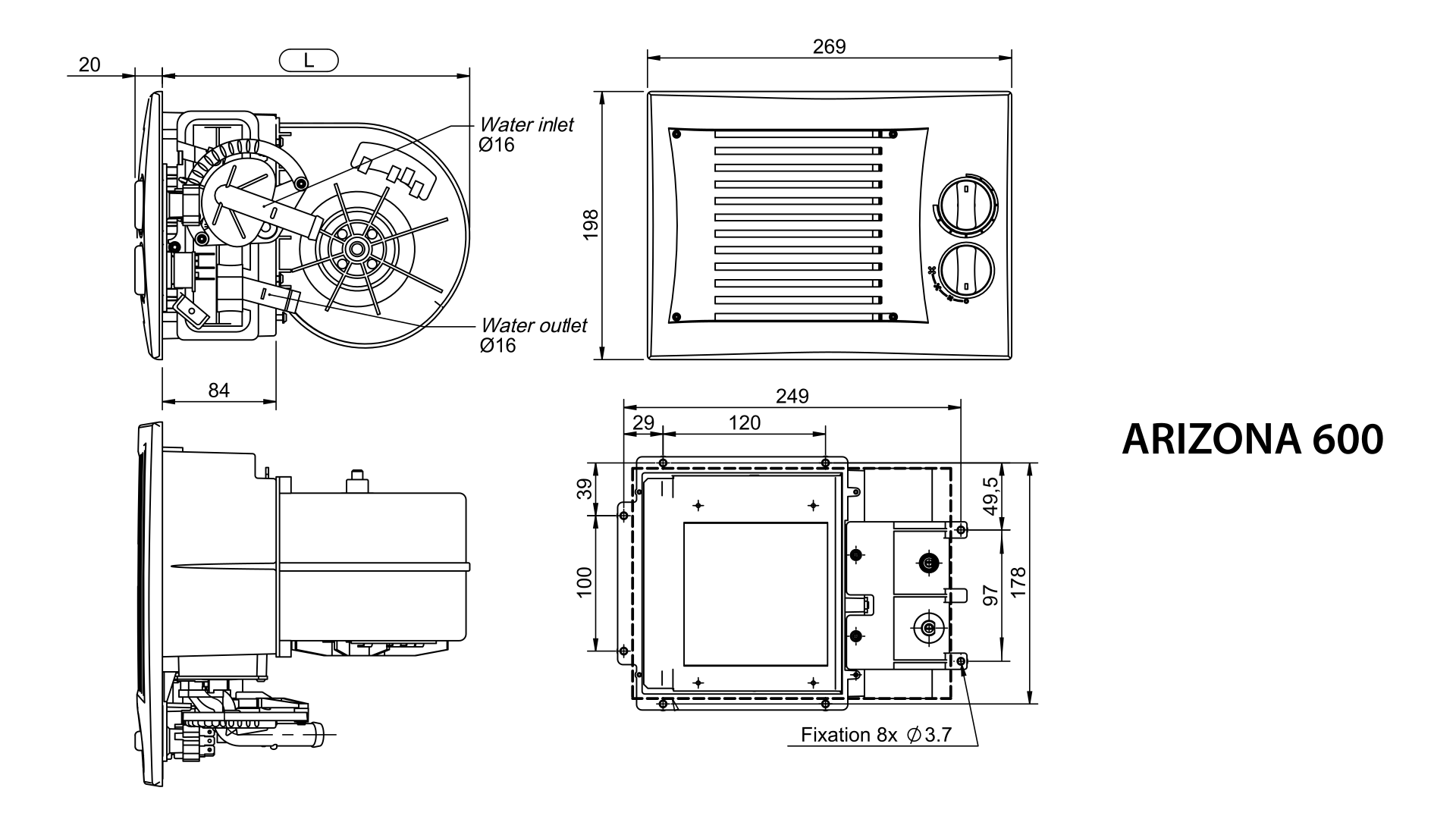

Dimensions
| Weight (kg) | 2.2 |
|---|---|
| Length (cm) | 30.0 |
| Width (cm) | 25.0 |
| Height (cm) | 22.0 |
Attributes
| Voltage | 24v |
|---|---|
| Heating power | 5.90 kW |
| Heated air volume | 347 m3/h |
| Category | Liquid heater |
| Liquid heaters | AUTOTERM Flow 5D/5B |
| Liquid heaters | AUTOTERM Flow 14D |
| Diameter | 16mm |
