Marine fuel kit

ISO 7840 – MARINE FUEL A1 standard

AUTOTERM Marine fuel kits are designed to be used only with AUTOTERM Air and AUTOTERM Flow heaters.

This fuel kit meets the requirements of ISO 7840 – MARINE FUEL A1 standard.

It applies to hoses for small craft with permanently installed fuel systems.

This fuel kit is installed and used in place of standard fuel kit supplied with AUTOTERM heaters.

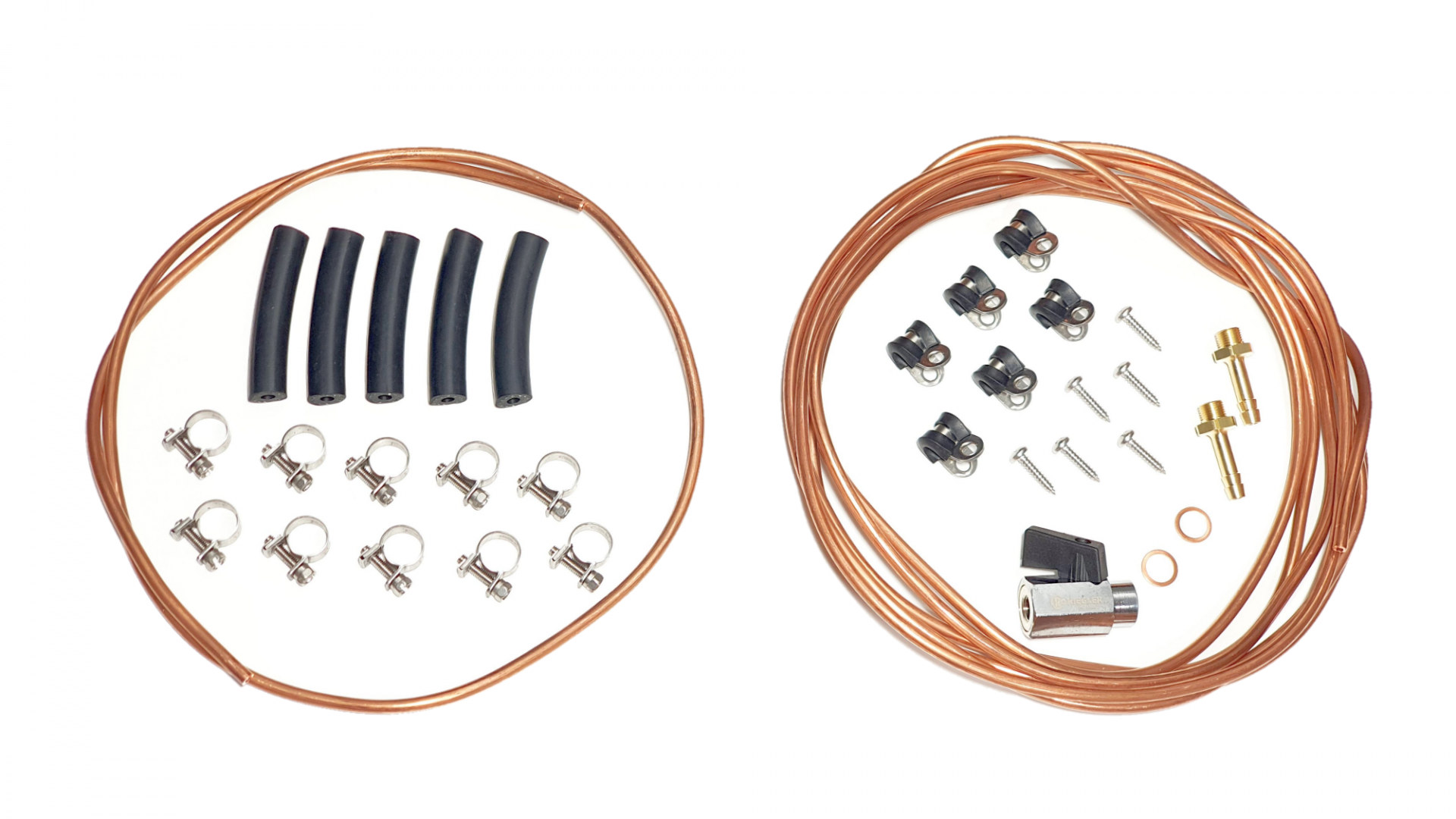

Marine fuel kit contents:

6 pcs
P-type stainless steel clamp for fuel pipe
ID: 5 mm

6 pcs
Stainless steel screws
Grade: A2

10 pcs
Stainless steel clamp
ID: 11-13 mm / Grade: A2

5 pcs
Rubber connection sleeve
ID: 5 mm / OD: 13 mm / ISO 7840

2 pcs
Fitting
OD 6 mm / AGR 1/8" / Material: Brass

2 pcs
Copper O-rings
10x14x1.5 mm

4 m
Copper pipe
ID: 3 mm / OD: 5 mm

1 m
Copper pipe
ID: 3 mm / OD: 5 mm

1 pc
Ball valve
Pmax 10bar / 1/8" SW21
