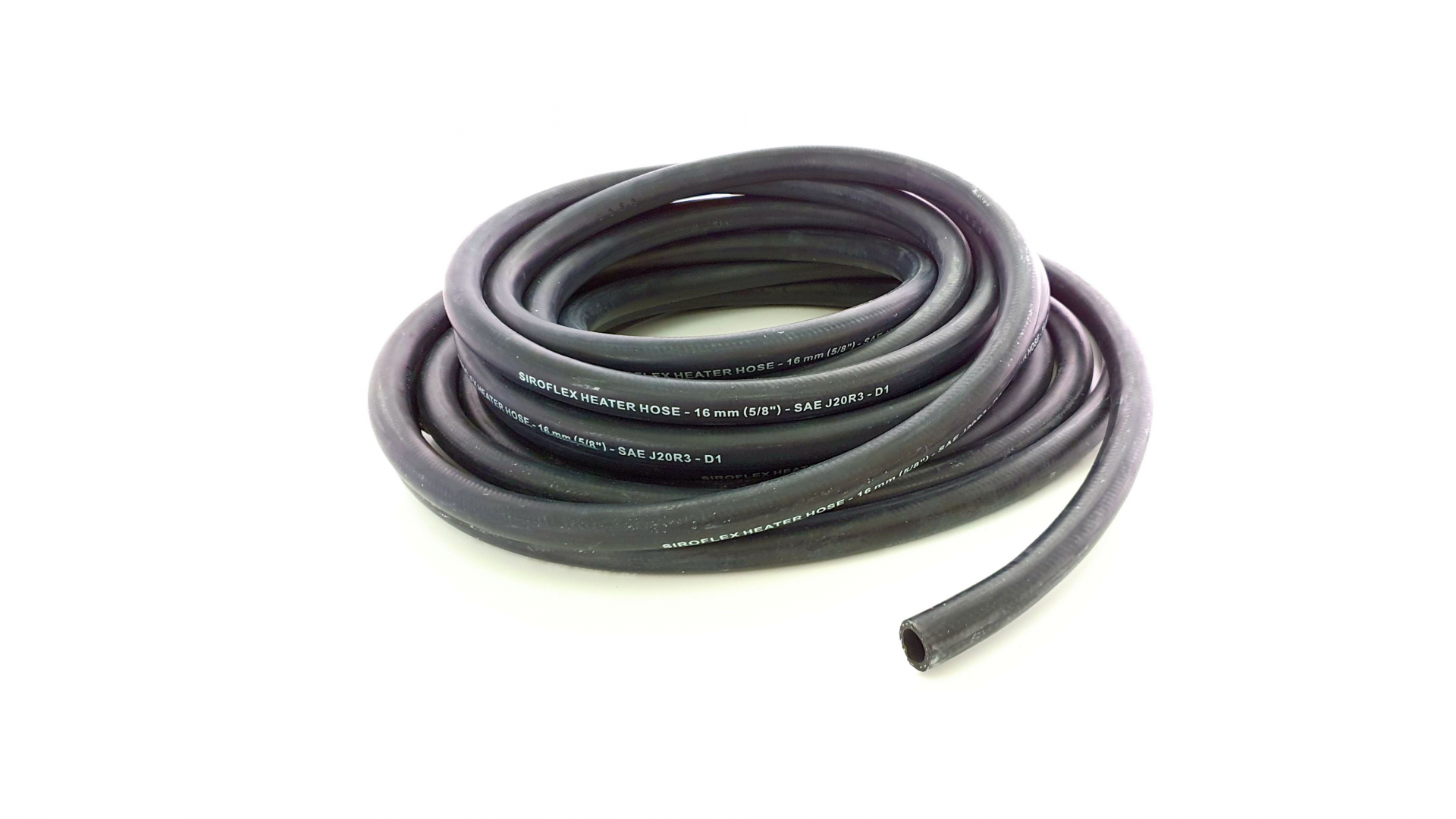

Coolant hose
Overview
ID Ø 16 mm / SAE J20R3-D1 / 6 bar / 120 C
Technical
The coolant hose is suitable for passive & active fan liquid heat exchangers.
Suitable for AUTOTERM Flow 5 liquid heaters with the coolant hose connector from Ø 18 mm to Ø 16 mm.
Suitable with following connectors & valve:
- 90° coolant hose connector - assy.FR031
Diameter: Ø 16 mm - Straight coolant hose connector - assy.FR028
Diameter: Ø 18 mm / Ø 16 mm. - Straight coolant hose connector - assy.FR030
Diameter: Ø 16 mm - Straight coolant hose connector - assy.FR034
Diameter: Ø 20 mm / Ø 16 mm - Straight hose connection - assy.FR020
Diameter: Ø 16 mm - T-shaped coolant hose connector - assy.FR032
Diameter: Ø 16 mm - T-shaped metal pipe connector - FR021
Diameter: Ø 20x16x20 mm - Bleeding valve - FR022
Diameter: Ø 16 mm - Plastic electrovalve - FR019
Diameter: Ø 16 mm / Voltage: 12V
*Price per 1 meter
ID: 16mm
OD: 23 mm
Internal material: black EPDM
Internal structure: textile
External material: black EPDM
Standard: SAE J20R3-D1
Operation pressure: 6 bar
Operation temperature (Min/Max): -35 C / +120 C
Dimensions
| Weight (kg) | 0.32 |
|---|---|
| Length (cm) | 100.0 |
| Width (cm) | 2.5 |
| Height (cm) | 2.5 |
Attributes
| Diameter | 16mm |
|---|---|
| Accessories | Coolant system |
