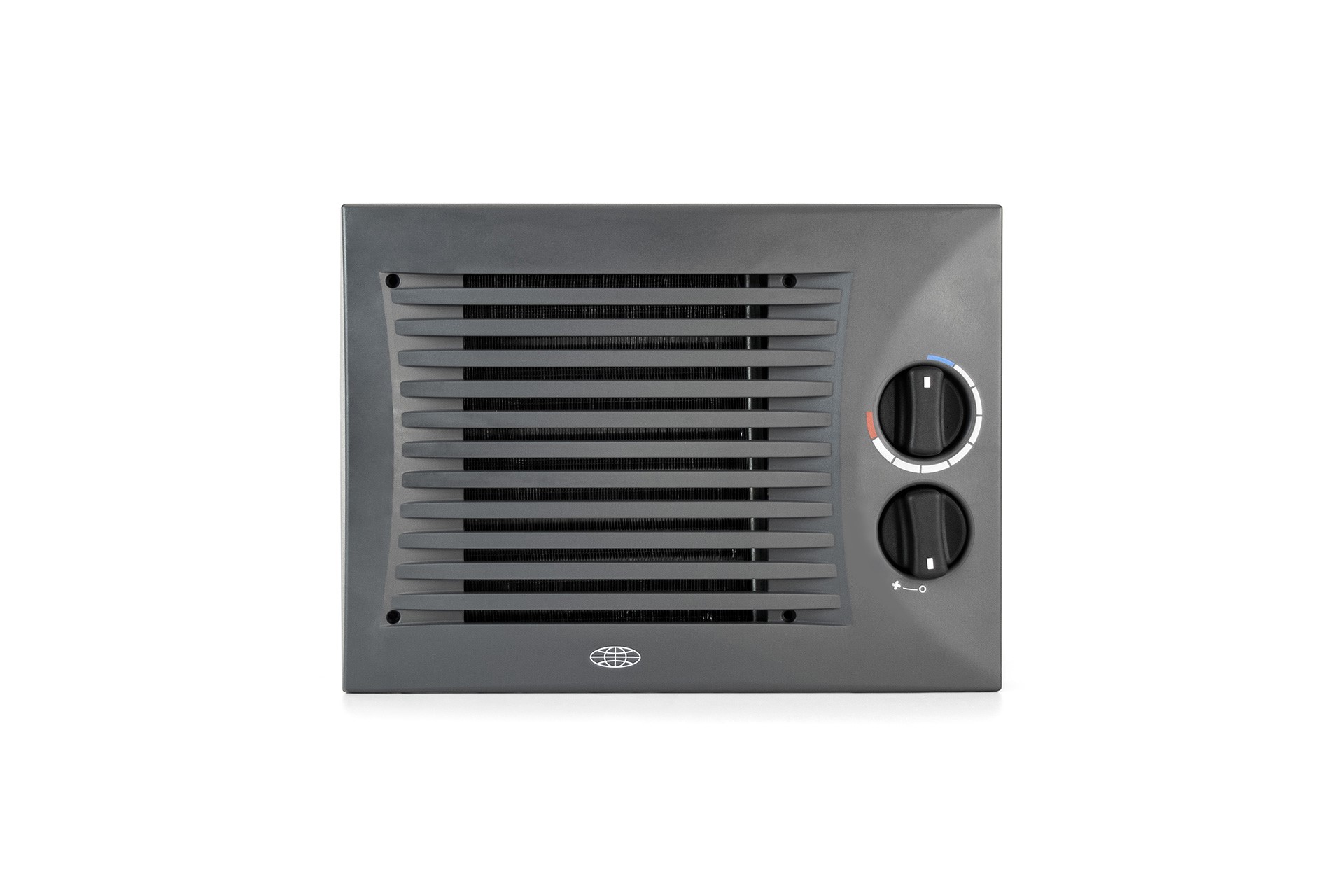

Liquid heat exchanger with fan ARIZONA LN

Air flow: 110 m3/h / 12V / 2.75 kW

Voltage: 12V

Low noise fan

Nominal air flow: 110 m3/h

This heat exchanger has a 1-speed fan

Heating capacity, Ethylene glycol: 2.75 kW

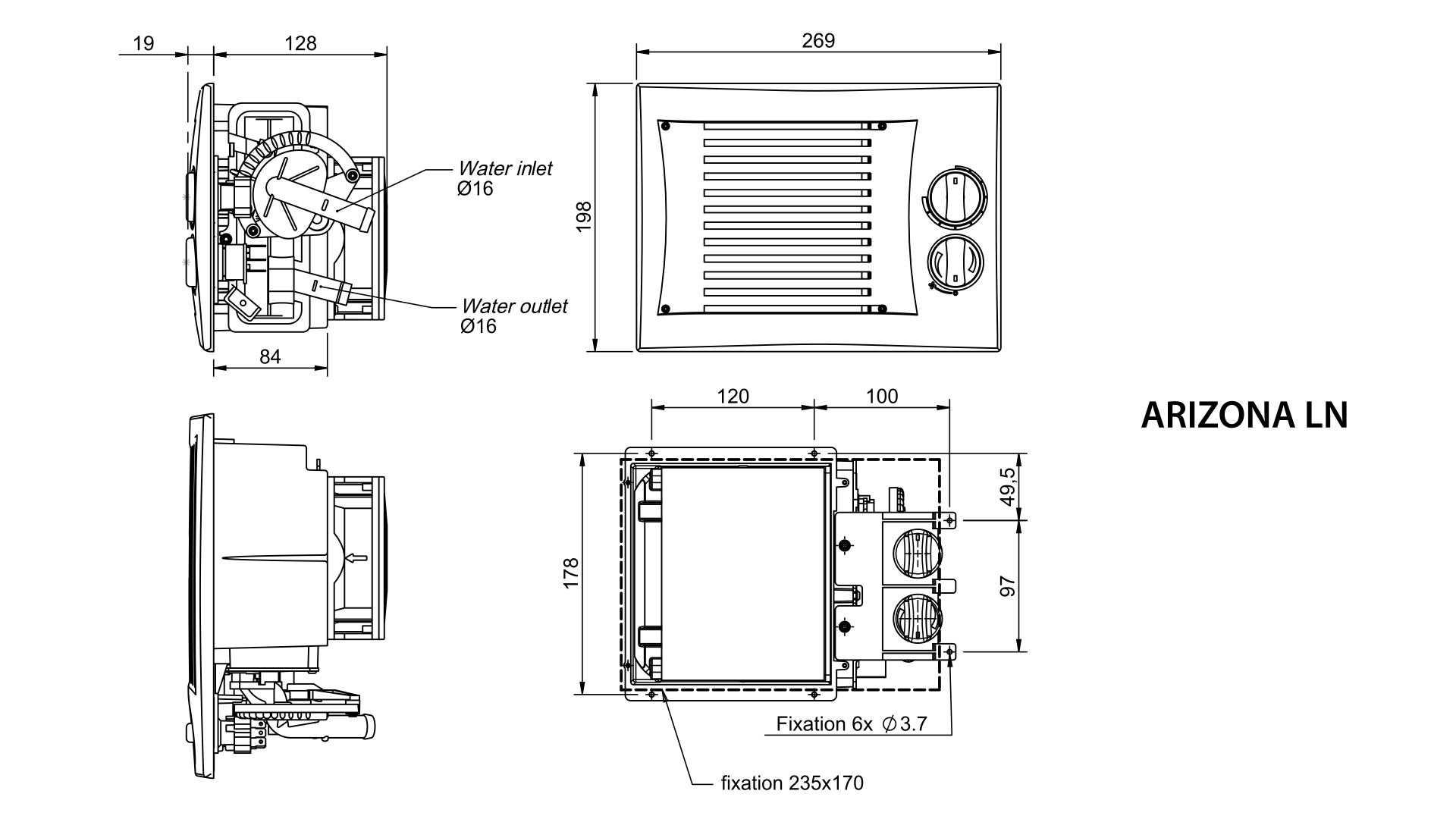

Inlet & outlet for ethylene glycol: ø16 mm

Front panel of liquid heat exchanger is heat resistant & removable

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88

* 2-pin connector kit FR052 available separately - not included in kit

Liquid heat exchanger with the fan is suitable for all the following liquid heaters:

• AUTOTERM Flow 5 D / B
• AUTOTERM Flow 14D

Manufacturer: SIROCO

*Pictures shown are for illustration purposes only. Actual product may vary in colour.

It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.

As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to just to can be used to circulate air in the room.

As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.
