Extension wiring for control panel
Overview
Length 2.6 m / For: all AUTOTERM heaters
Technical

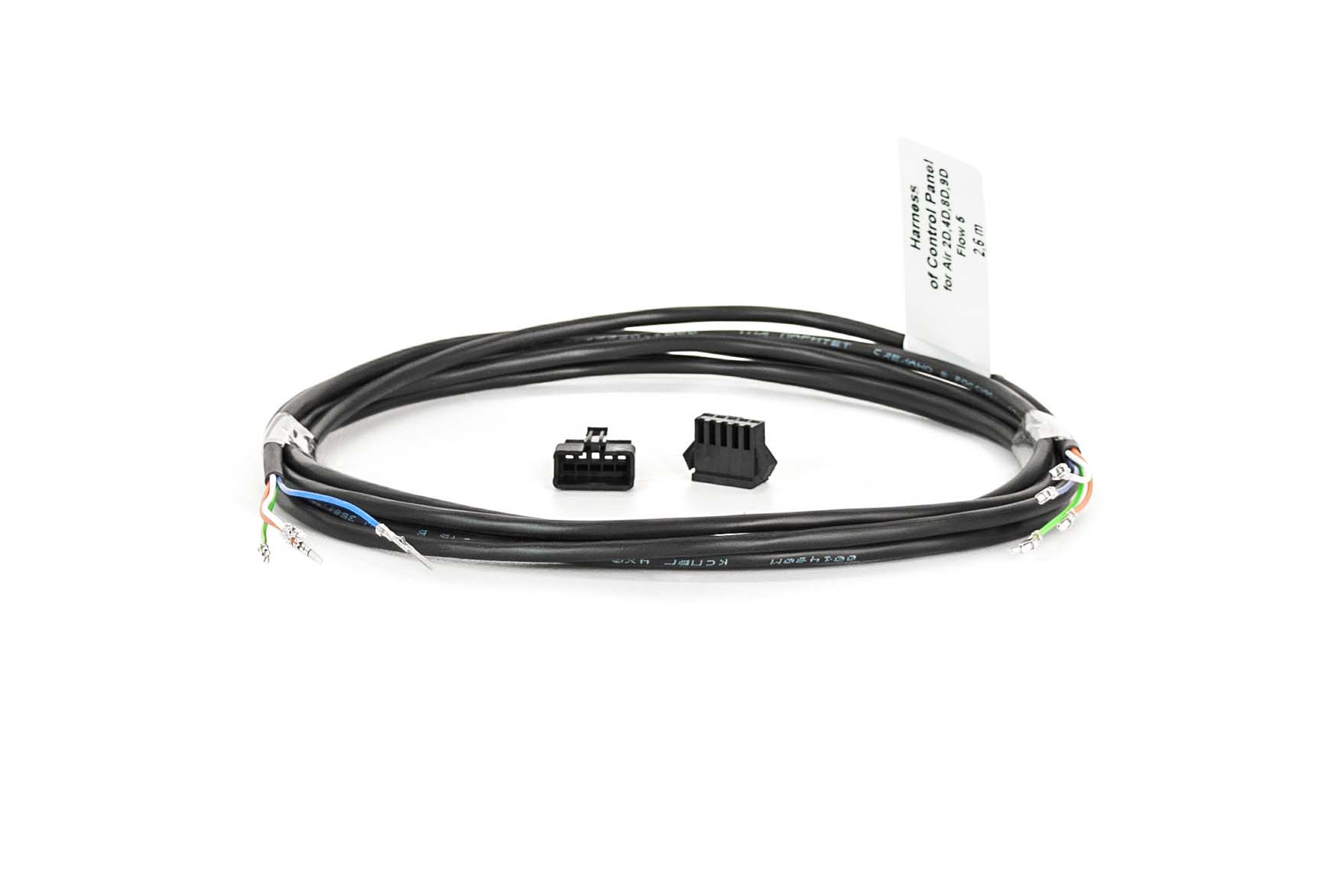

Extension wiring for control panels, assy.4269
This extension wiring is intended to increase distance between control panel & modem or to increase control panel wire length.
The extension wiring for control panels is suitable with following heaters:
Air heaters:
Liquid heaters:
- AUTOTERM Flow 5
- AUTOTERM Flow 14D (if equipped with control panel wire assy.4394)
Wiring can be connected with following control wires:
- Simple Control (assy. AT0030)
- OLED Control (assy.4725)
- Comfort Control (assy.AT0050)
- Comfort Touch
- Comfort Boiler Control (AT0050/BC)
Wiring can be connected with following modems:
Extension wiring can be connected with following control panel wiring:
- Control panel wire (assy.2067) - Length 1.8 meters
- Wiring for control panel (assy.2324) - Length 5 meters
- Wiring for control panel (assy.3298) - Length 7 meters
- Extension wiring for digital control panel (assy.2323) - Length 5 meters
Length - 2.6 meters
Dimensions
| Weight (kg) | 0.04 |
|---|---|
| Length (cm) | 17.0 |
| Width (cm) | 20.0 |
| Height (cm) | 0.5 |
Attributes
| Voltage | 12v |
|---|---|
| Voltage | 24v |
| Category | Air heater |
| Category | Liquid heater |
| Liquid heaters | AUTOTERM Flow 5D/5B |
| Liquid heaters | AUTOTERM Flow 14D |
| Air heater | AUTOTERM Air 2D |
| Air heater | AUTOTERM Air 4D |
| Air heater | AUTOTERM Air 8D |
| Air heater | AUTOTERM Air 9D |
| Accessories | Electrical |
| Length | 2.60m |
