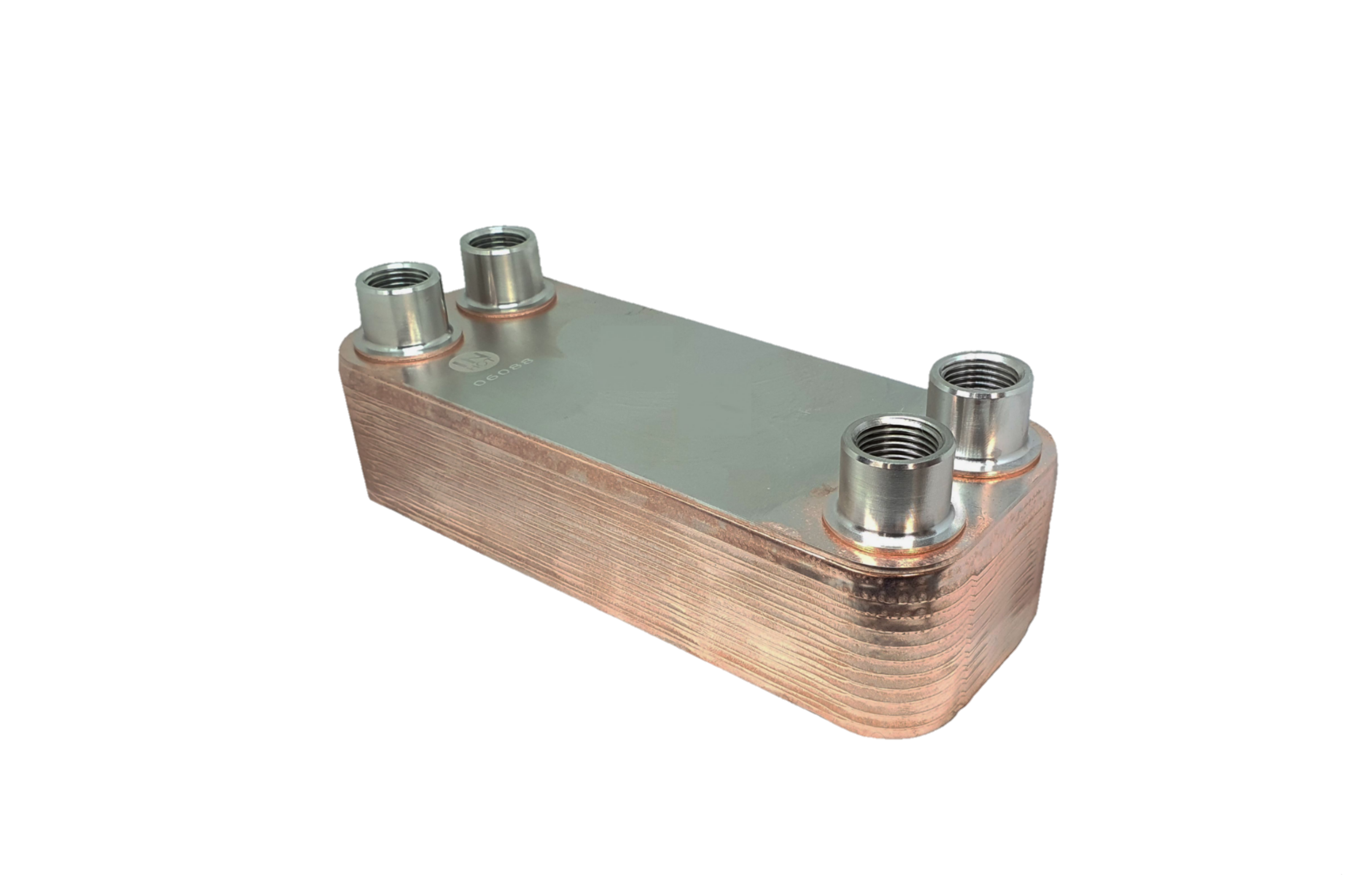

Passive liquid heat exchanger P10

SKU FR007 110.64 In Stock

Overview

Heating capacity: 10 kW / ID: Ø 1.27 cm (1/2 in)

This passive plate heat exchanger is suitable for all the following liquid heaters:

Heating capacity: +/- 10 kW (heating capacity depends on ethylene glycol flow rate & temperature)

Maximum allowable pressure PS bar: 31

Maximum allowable temperature TS °C: 220

Minimum allowable temperature TS °C: -196

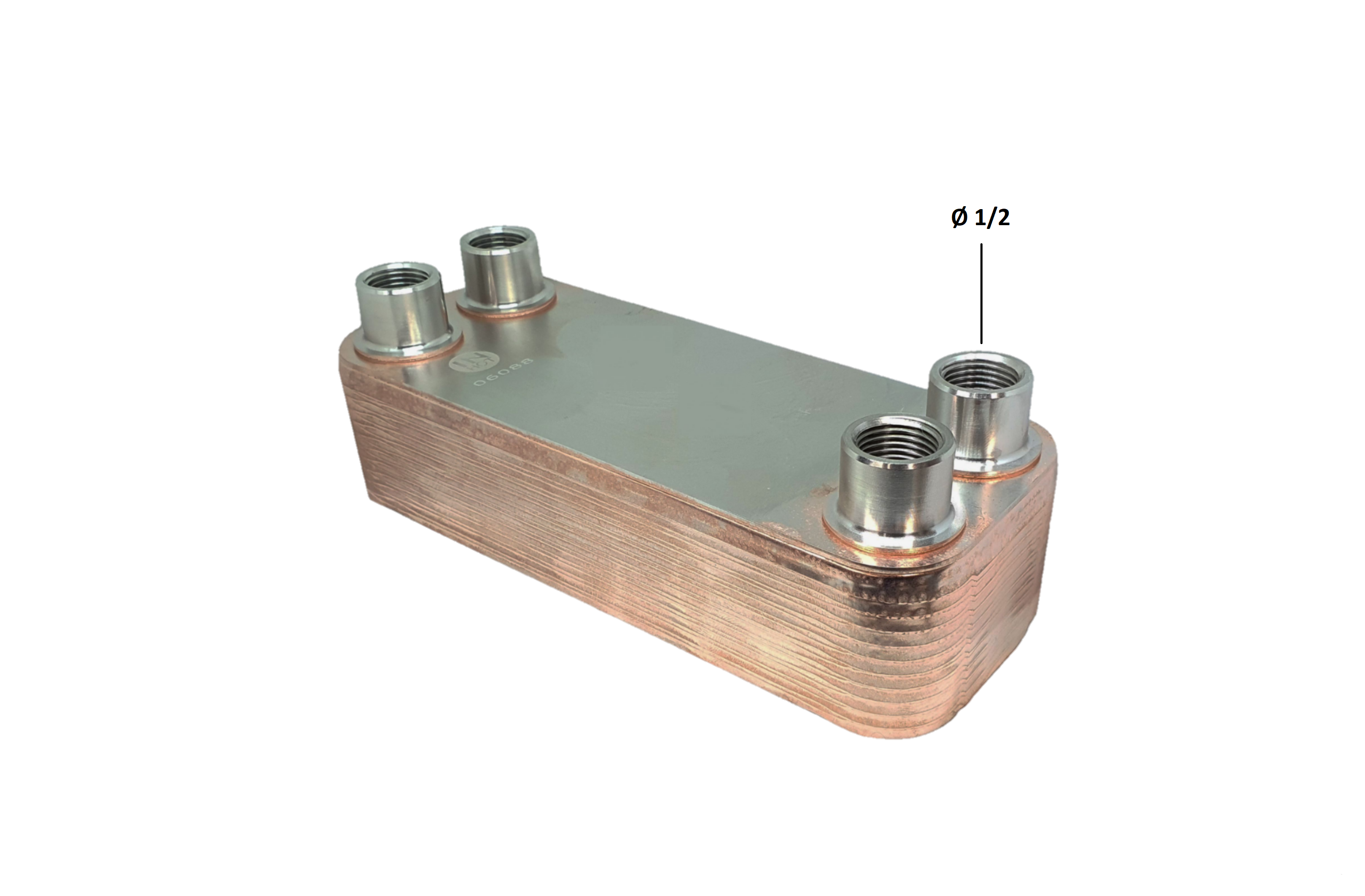

Inner diameter: Ø 1.27 cm (1/2 in)

Suitable transitions & Hoses:

AT0063
Brass hose adapter
Thread: 1/2'' / OD: 16 mm

AT0064
Brass hose adapter
Thread: 1/2'' / OD: 18 mm

AT0065
Brass hose adapter
Thread: 1/2'' / OD: 20 mm

FR025
Coolant / Liquid hose
OD: 16 mm

FR068
Coolant / Liquid hose
OD: 18 mm

Manufacturer: Eko Air

Dimensions:

240 x 90 x 55 mm
