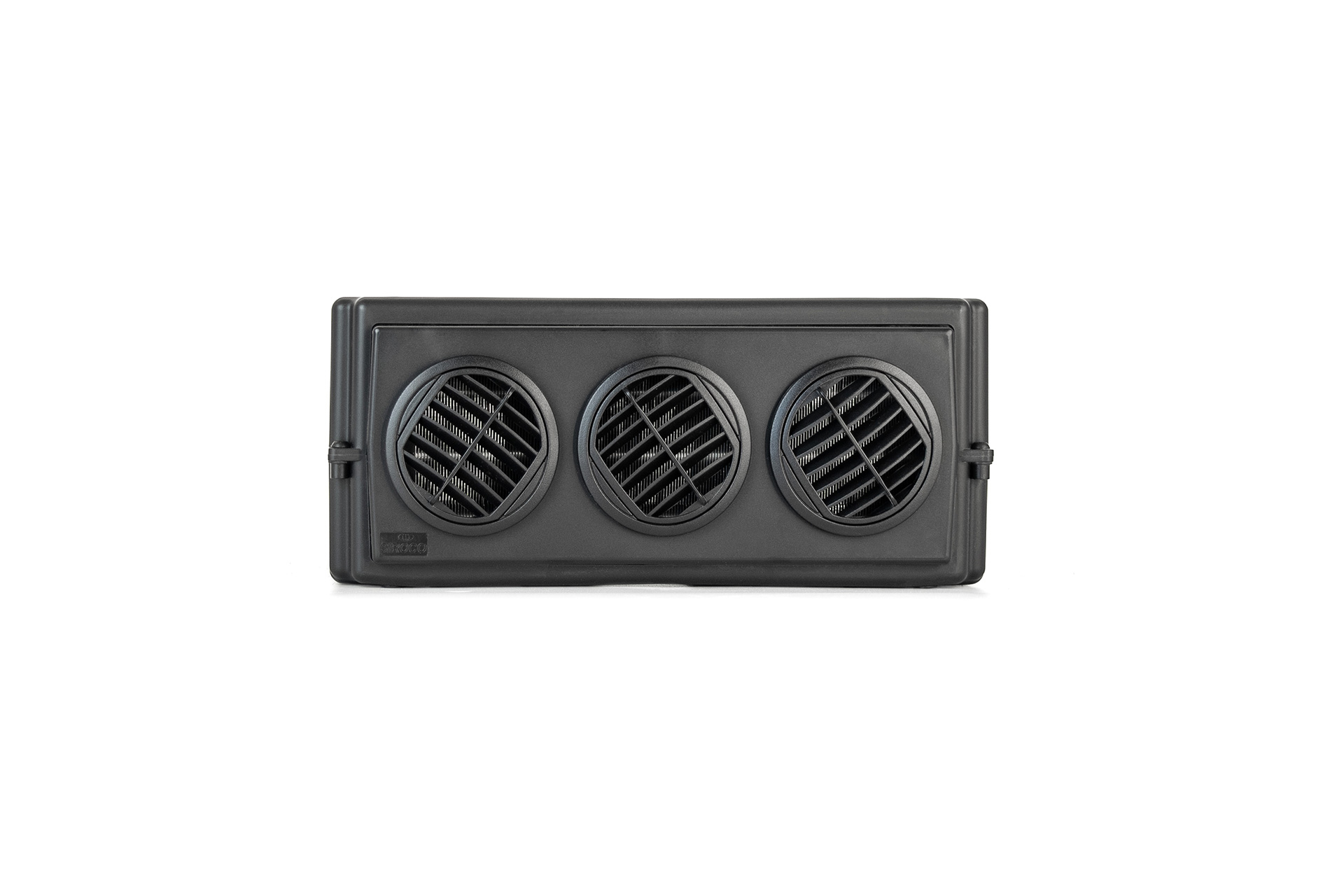

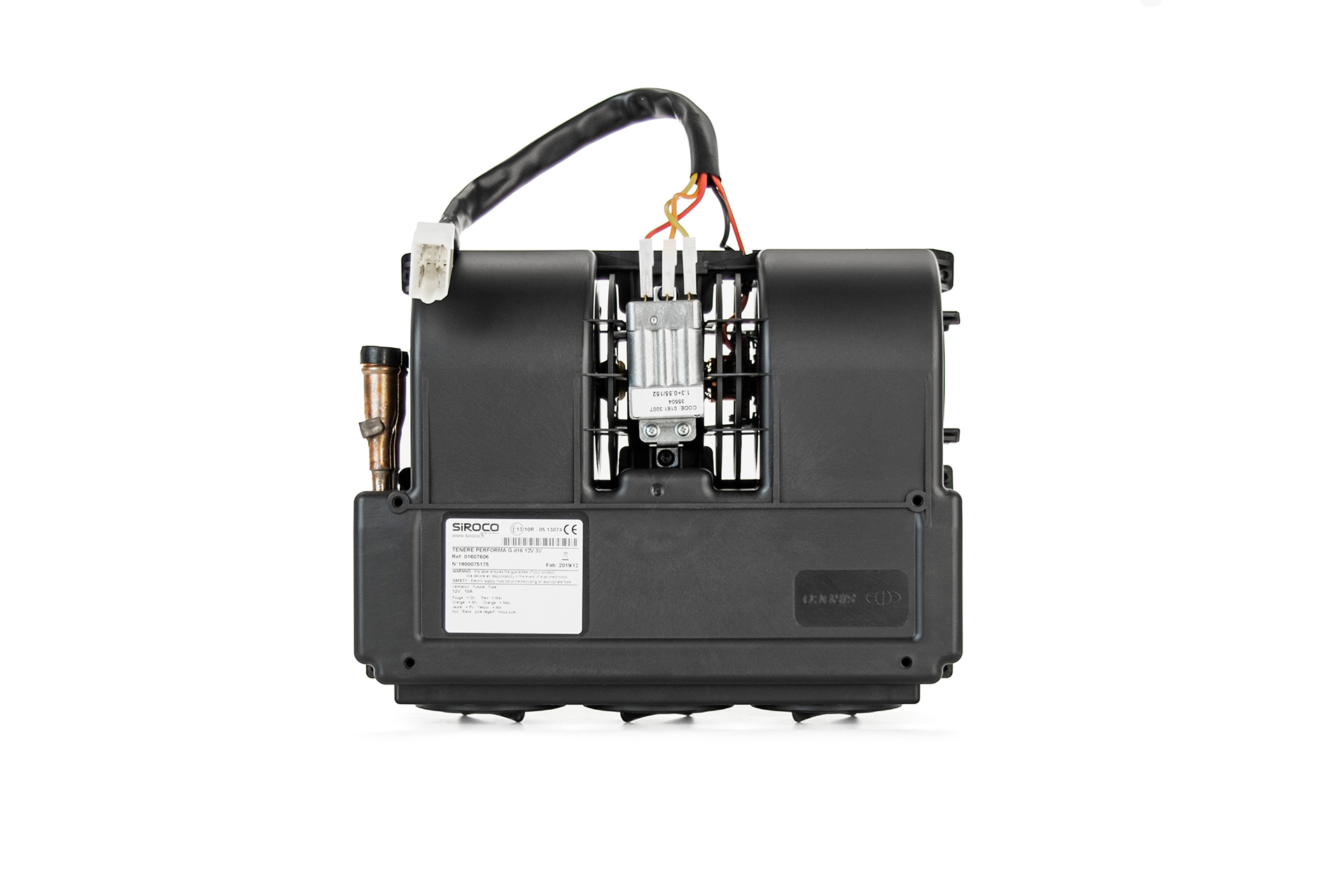

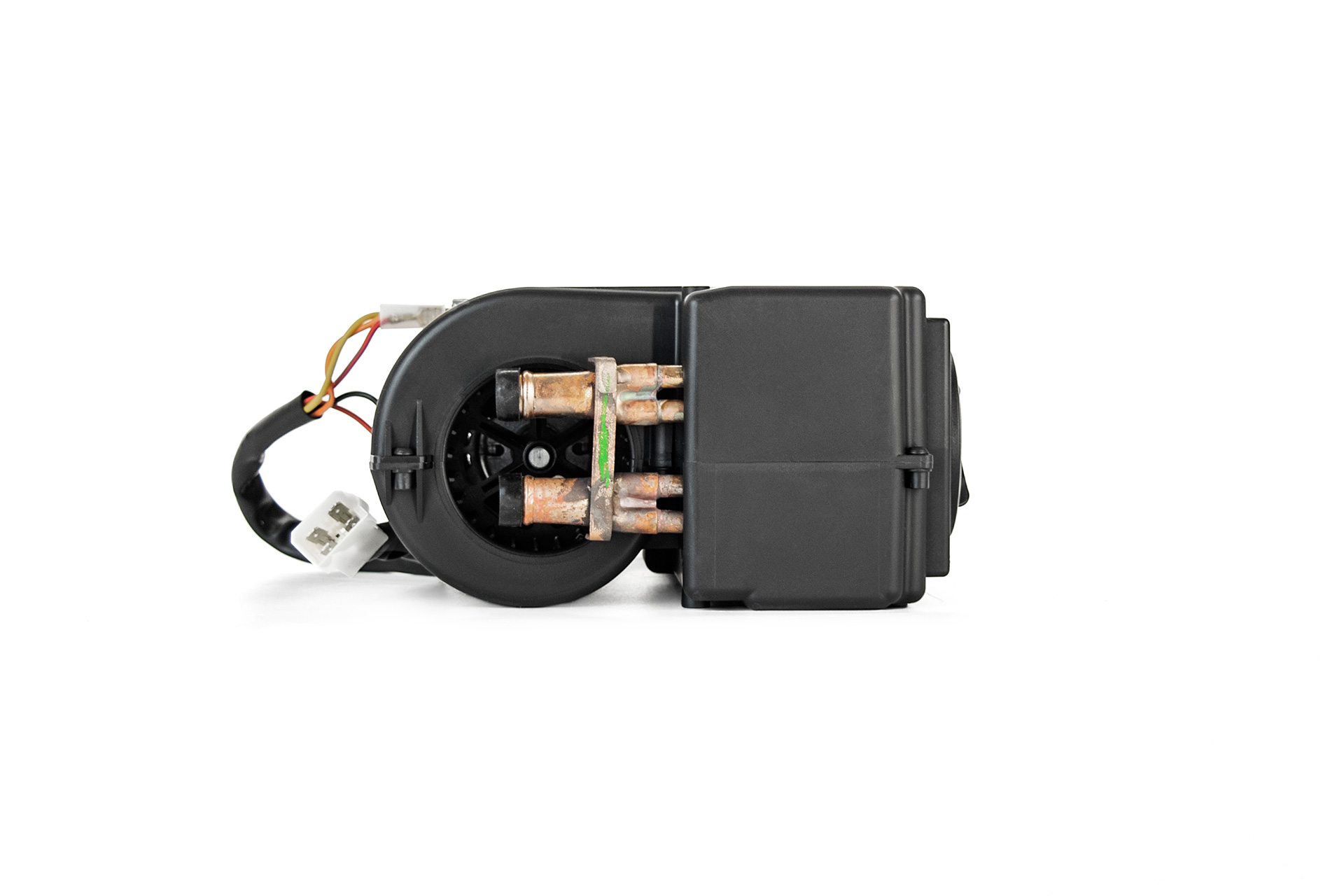

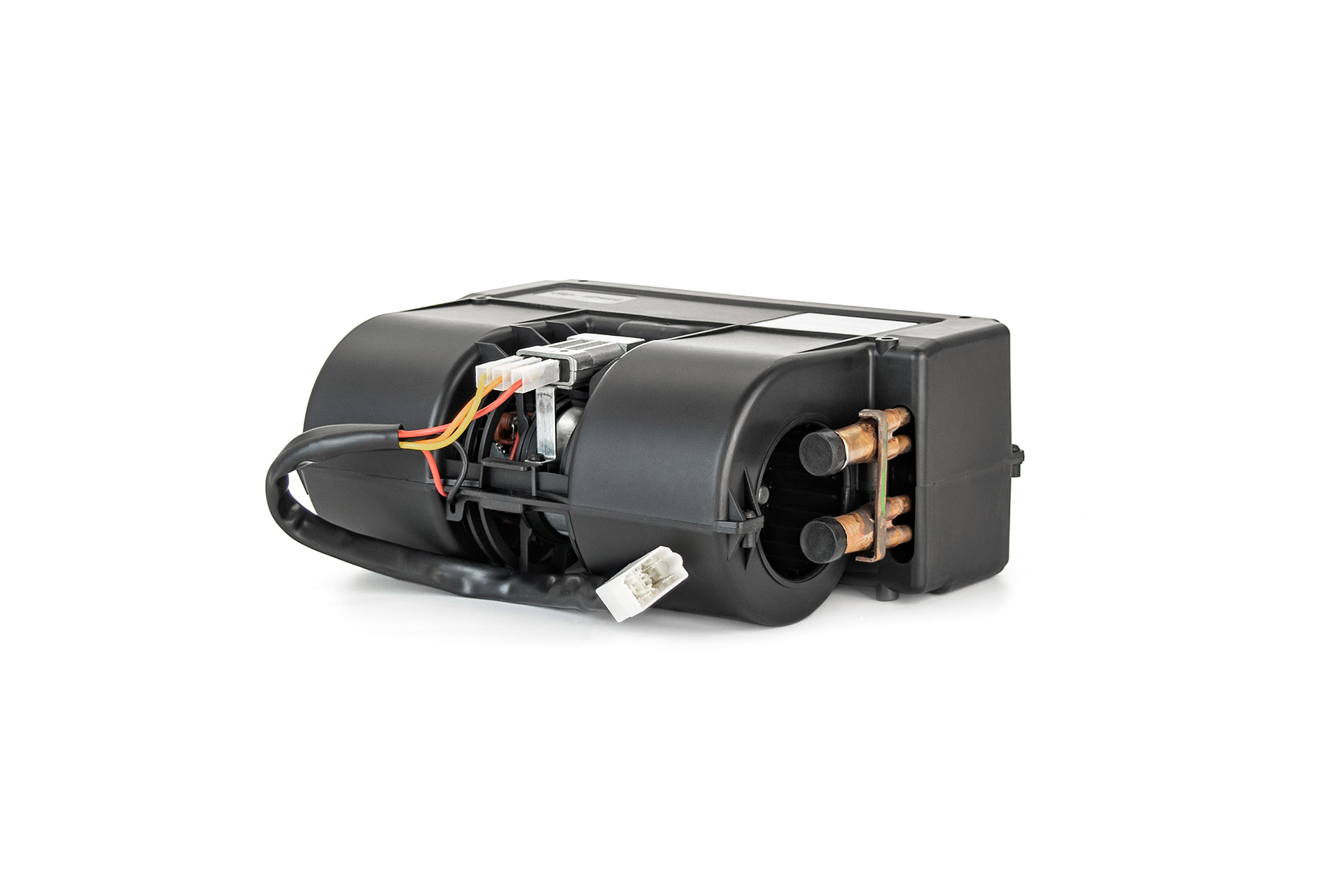

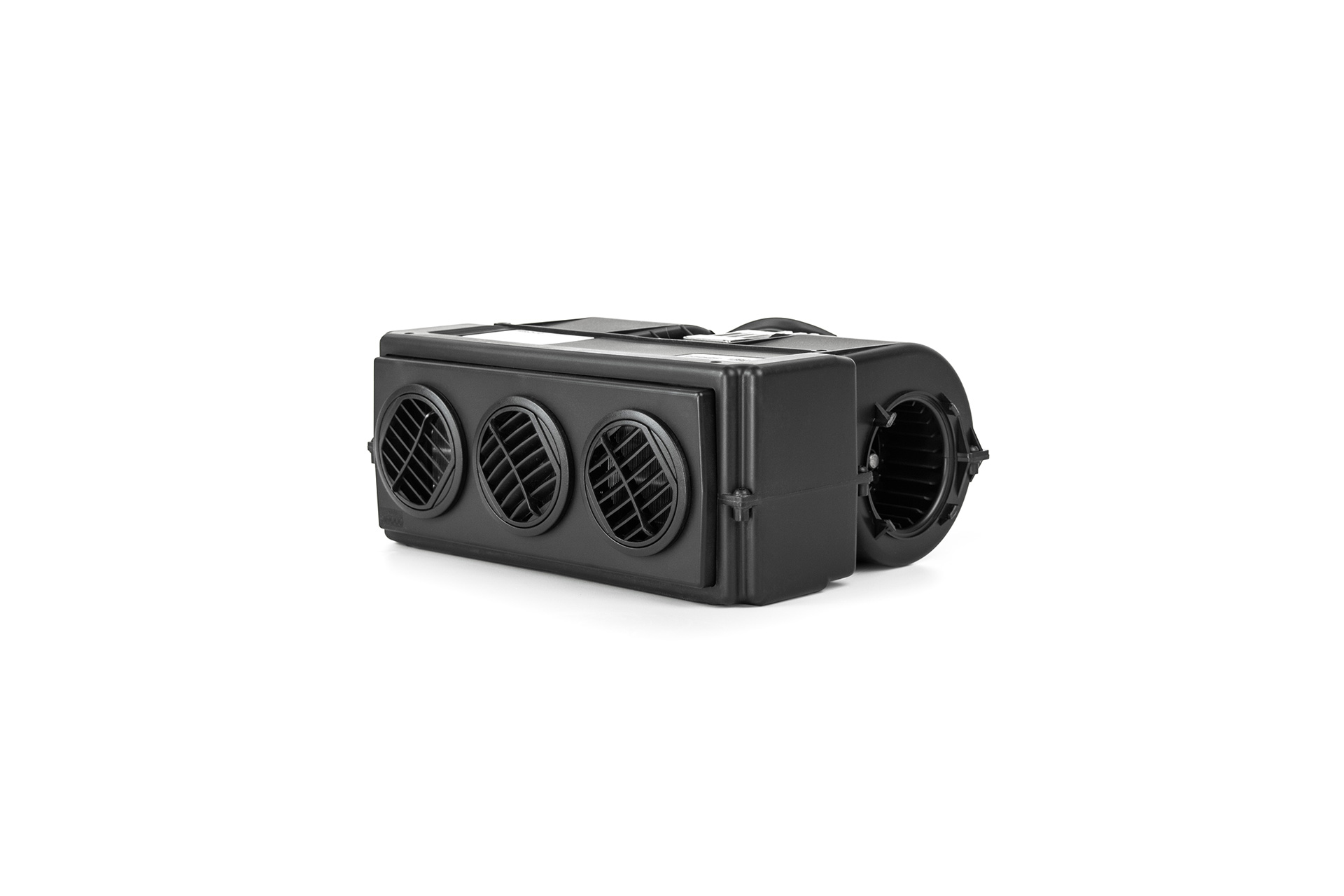

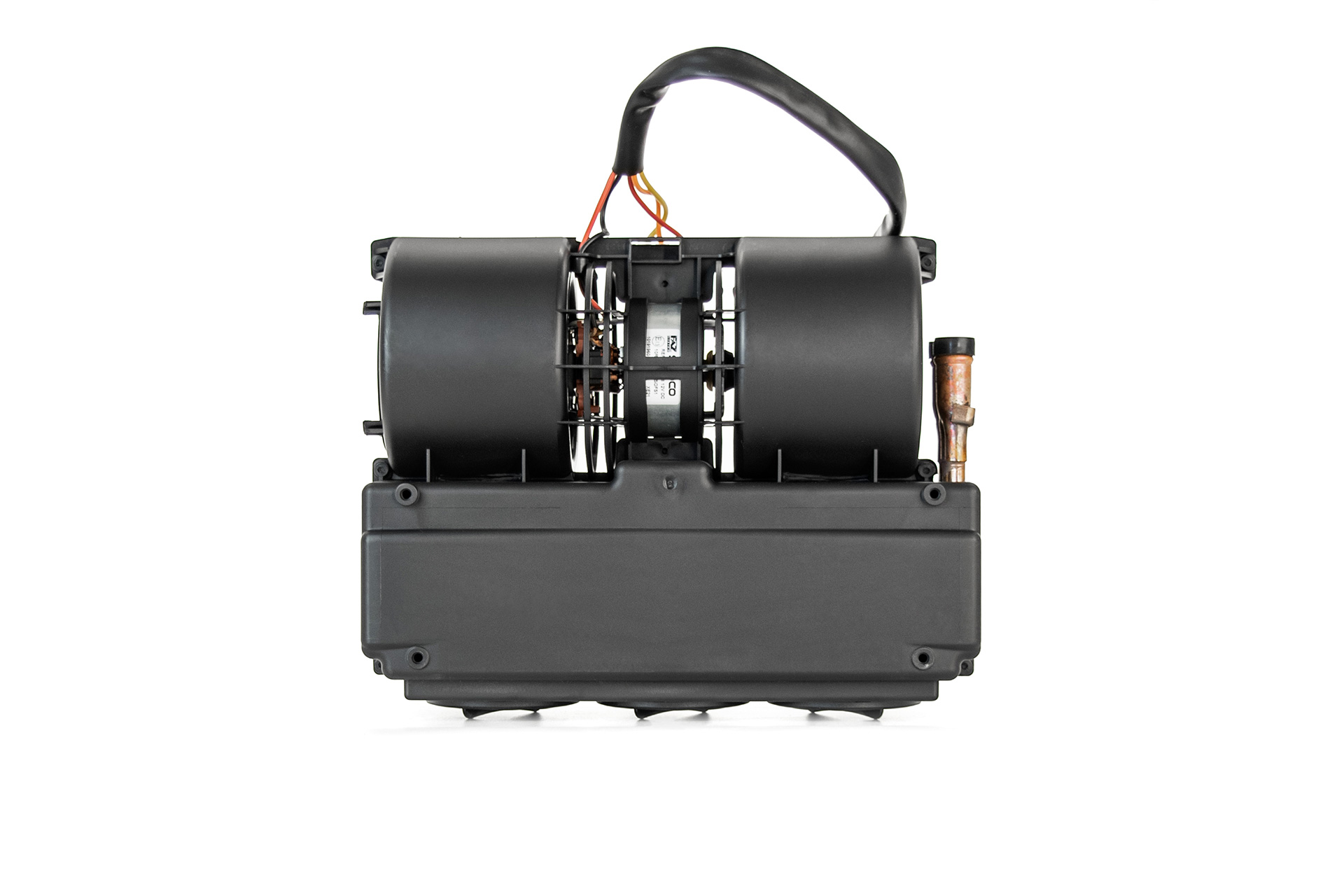

Liquid heat exchanger with fan TENERE PERFORMA G

SKU FR013 154.98 In Stock

Overview

Air flow: 220 m3/h / Ø 60 mm / 12V / 4.9 kW

Voltage: 12V

Nominal air flow: 220 m3/h

This heat exchanger has a 3-speed fan

Heating capacity, Ethylene glycol: 4.9 kW

Equipped with 3 adjustable air diffusers with grid

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88

For fan speed control optional 4 position rotary switch FR018 is required.

* 4-pin connector kit FR051 available separately - not included in kit

Compact liquid heat exchanger with the fan is suitable for all the following liquid heaters:

Manufacturer: SIROCO

It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.

As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to circulate air in the room.

The heat exchanger has rotatable fans.

As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.
