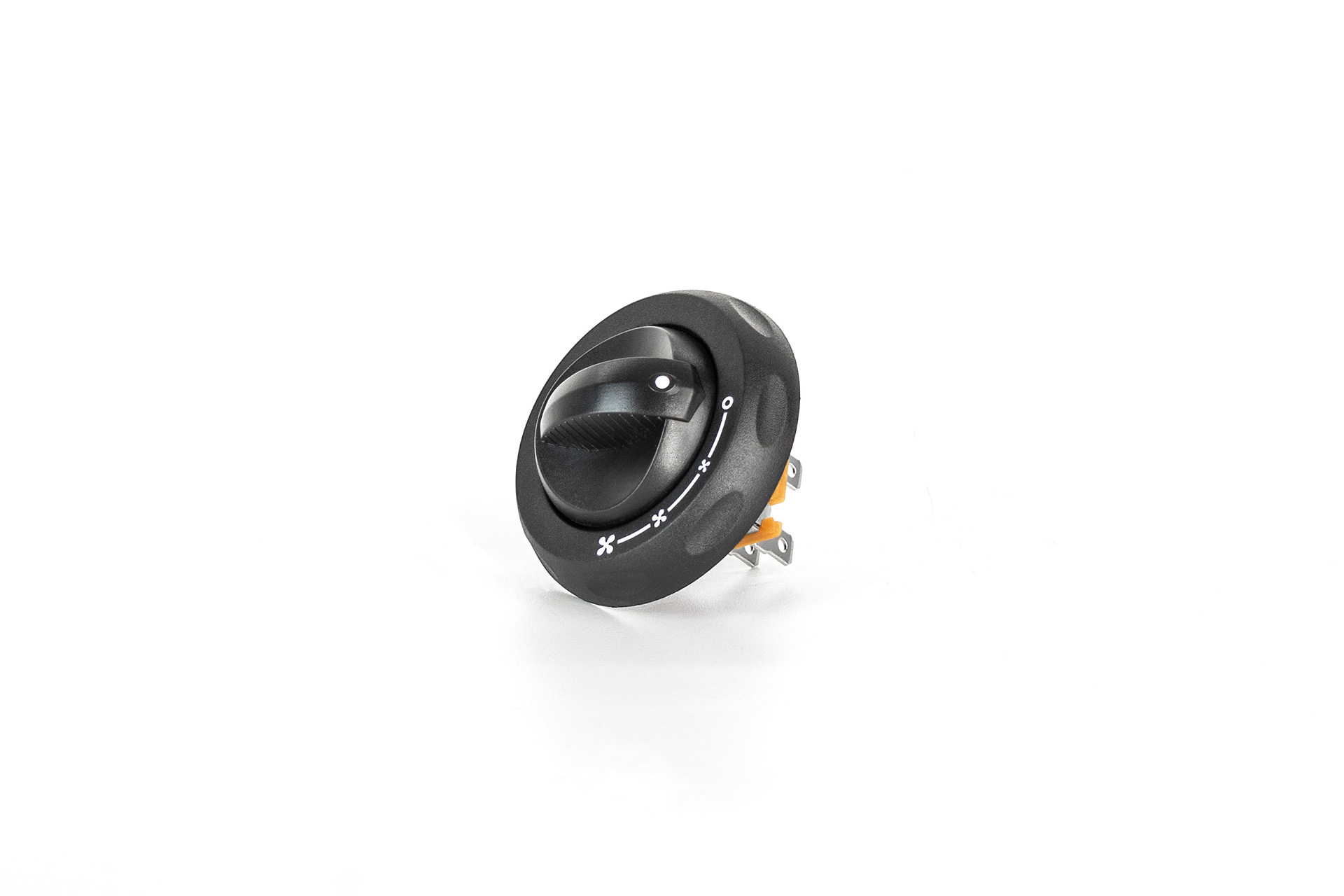

Rotary switch, 4 position
Overview
For: FR012; FR013; FR016; FR040; FR047; FR04
Technical
The rotary switch has 4 positions of work:
- 1 - Off;
- 2 - Low;
- 3 - Medium;
- 4 - High
The 4 position rotary switch is suitable for the following water heat exchangers:
The maximum intensity is 20 A.
Voltage: 12V or 24V
Dimensions
| Weight (kg) | 0.04 |
|---|---|
| Length (cm) | 13.0 |
| Width (cm) | 7.0 |
| Height (cm) | 4.0 |
Attributes
| Voltage | 12v |
|---|---|
| Voltage | 24v |
| Category | Liquid heater |
| Accessories | Electrical |
| Switch | 4 position rotary switch (FR018) |
