Exhaust silencer
Overview
OD Ø 38 / Ø 65 mm / L=300/1800 mm / Stainless steel
Technical

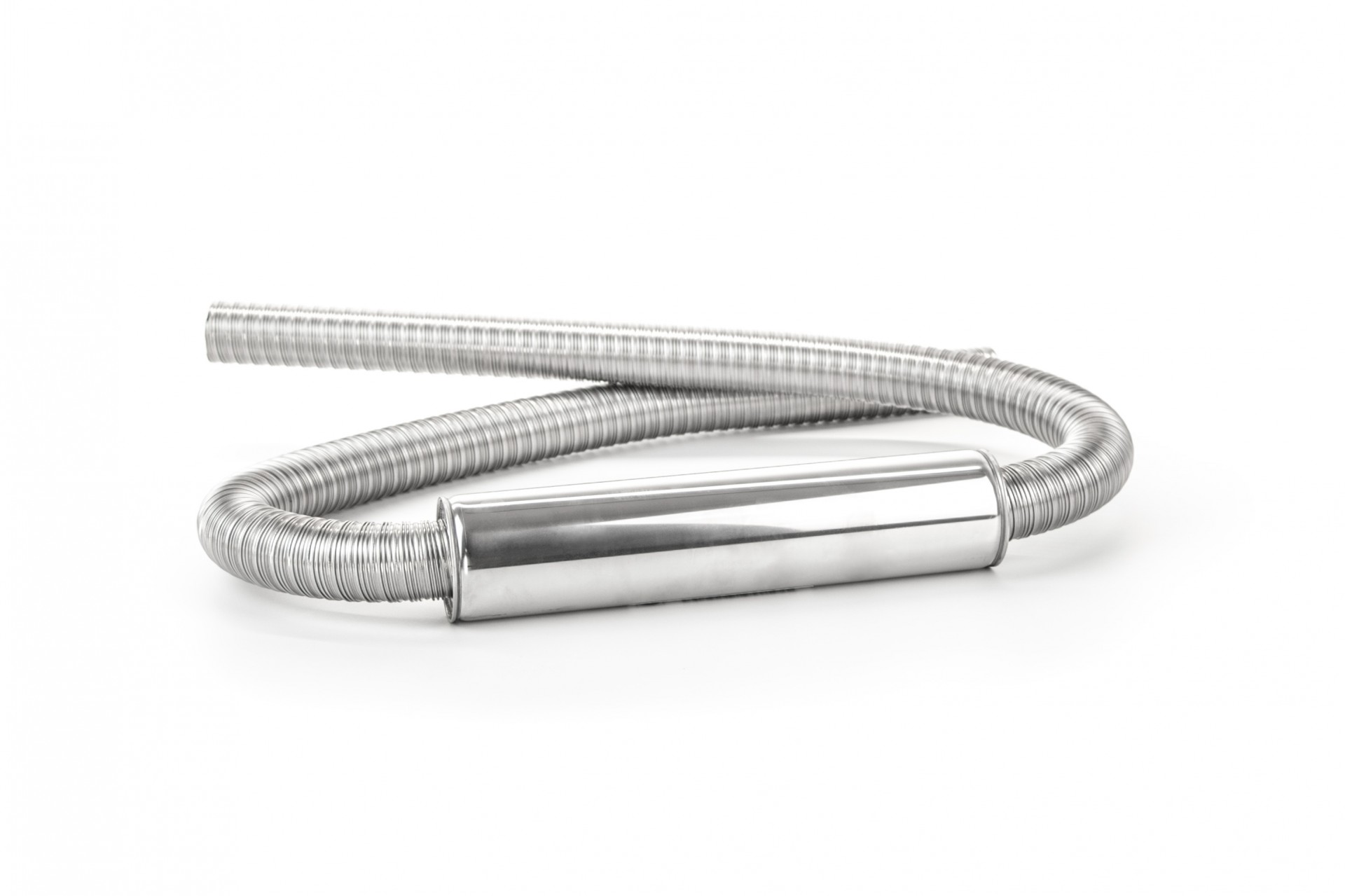

Stainless steel exhaust silencer, assy. DE044
The stainless steel exhaust silencer is suitable for all the following heaters modifications:
Air heaters:
Engine liquid heaters:

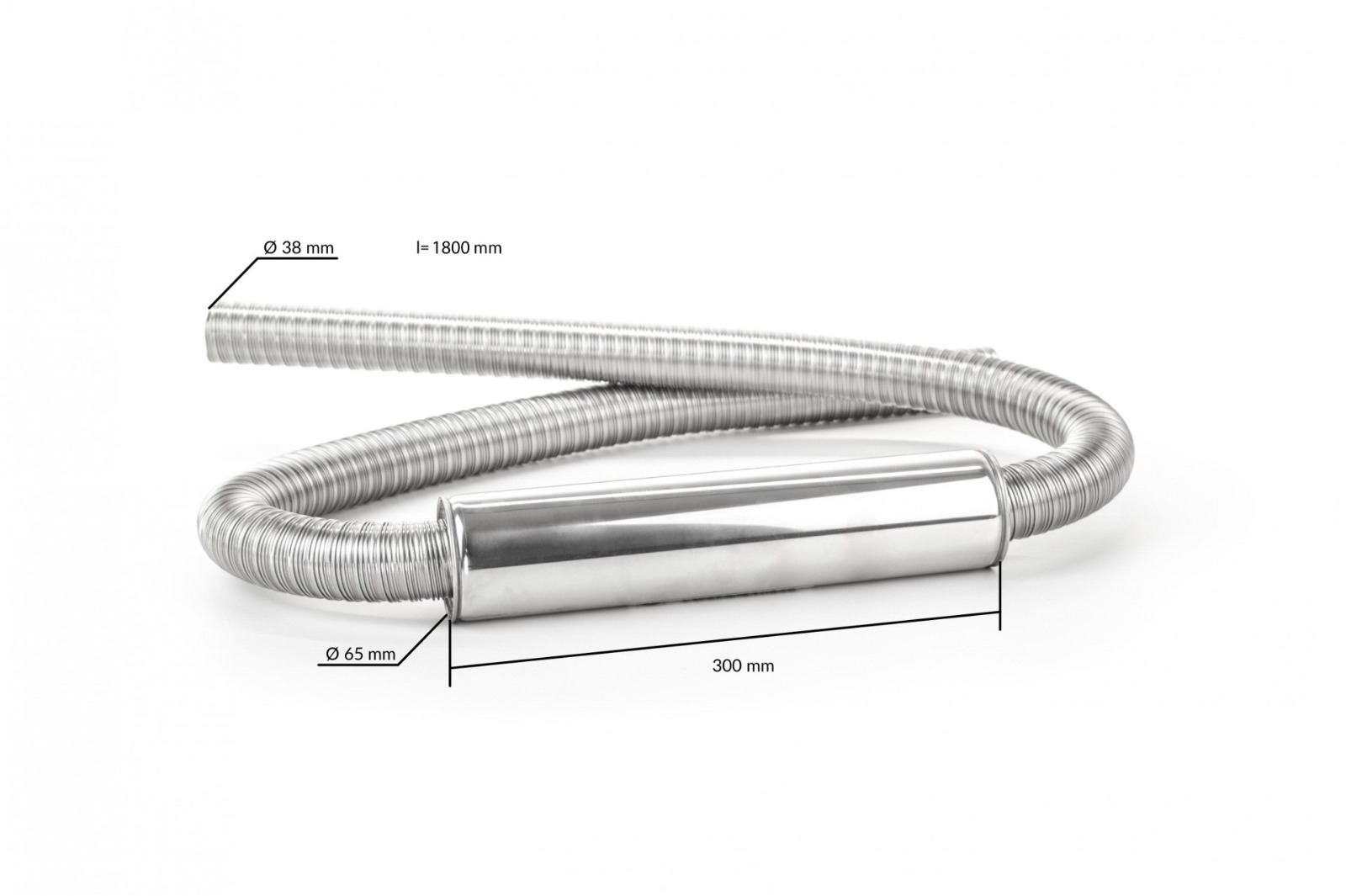

Dimensions:
- Total Length: 1800mm
- Length of silencer: 300mm
- Length of exhaust pipe till silencer:
- right side: 750mm
- left side: 750mm
- The internal diameter of exhaust pipe: Ø 38mm
- The diameter of silencer: Ø 65mm
Dimensions
| Weight (kg) | 0.97 |
|---|---|
| Length (cm) | 1820.0 |
| Width (cm) | 65.0 |
| Height (cm) | 65.0 |
Attributes
| Category | Air heater |
|---|---|
| Category | Liquid heater |
| Liquid heaters | AUTOTERM Flow 14D |
| Air heater | AUTOTERM Air 8D |
| Air heater | AUTOTERM Air 9D |
| Diameter | 38mm |
| Accessories | Exhaust / Intake |
| Length | 2.20m |
