Cable wiring
Overview
For: Flow 5D / Voltage: 12V / Bosch pump
Technical

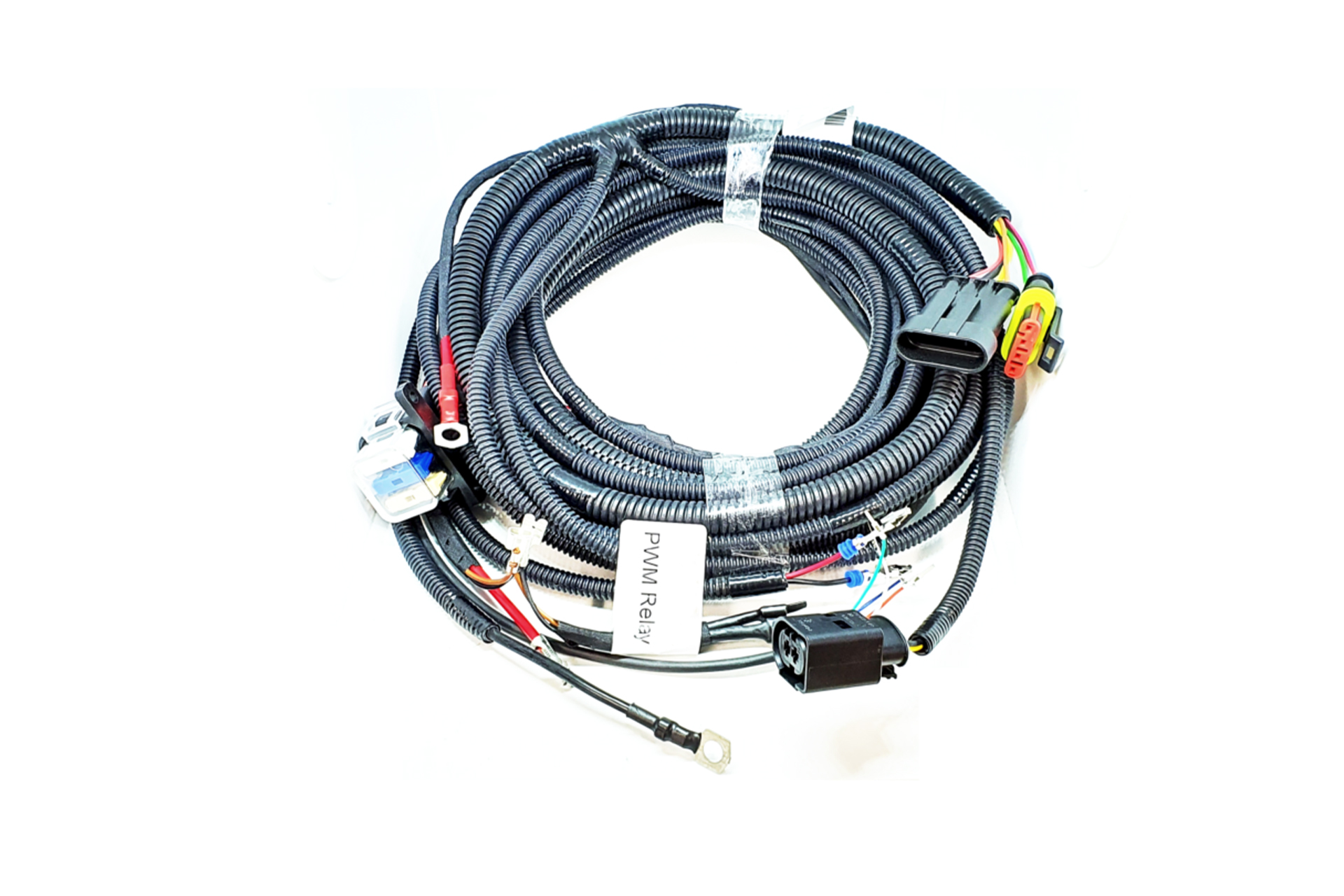

Cable wiring 12V, assy.4044
The wiring (without relay) is suitable for all 12V modifications of the liquid heater AUTOTERM Flow 5D / 5B.
Suitable with the following control panels:
- Control panel Oled Control
- Control panel Comfort Control
- Control panel Comfort Touch
This specific wiring ensures work for Bosch PAD-1 (assy.901) liquid pump.
Dimensions
| Weight (kg) | 0.745 |
|---|---|
| Length (cm) | 230.0 |
| Width (cm) | 230.0 |
| Height (cm) | 70.0 |
Attributes
| Voltage | 12v |
|---|---|
| Category | Liquid heater |
| Liquid heaters | AUTOTERM Flow 5D/5B |
| Spare parts | Wiring |
