Narrow Diffuser Straight
Overview
Ø 60mm / Straight
Technical
The Narrow Diffuser is perfect for installation in compact spaces where standard air grilles or deflectors won’t fit.
Ideal for under-window placement, it ensures efficient defrosting and fog prevention.
With a 60mm connection, it easily connects directly to Air 2D heaters.
For Air 4D heater installations, using a Y-shape adapter (Assy DE041) is recommended to connect at least two Narrow Diffusers or a combination of one Regular Grille (Assy AT2-G30D60-BK), plus Flange (Assy ATR2-FD60-BK) and one Narrow Diffuser, ensuring proper airflow and preventing overheating.

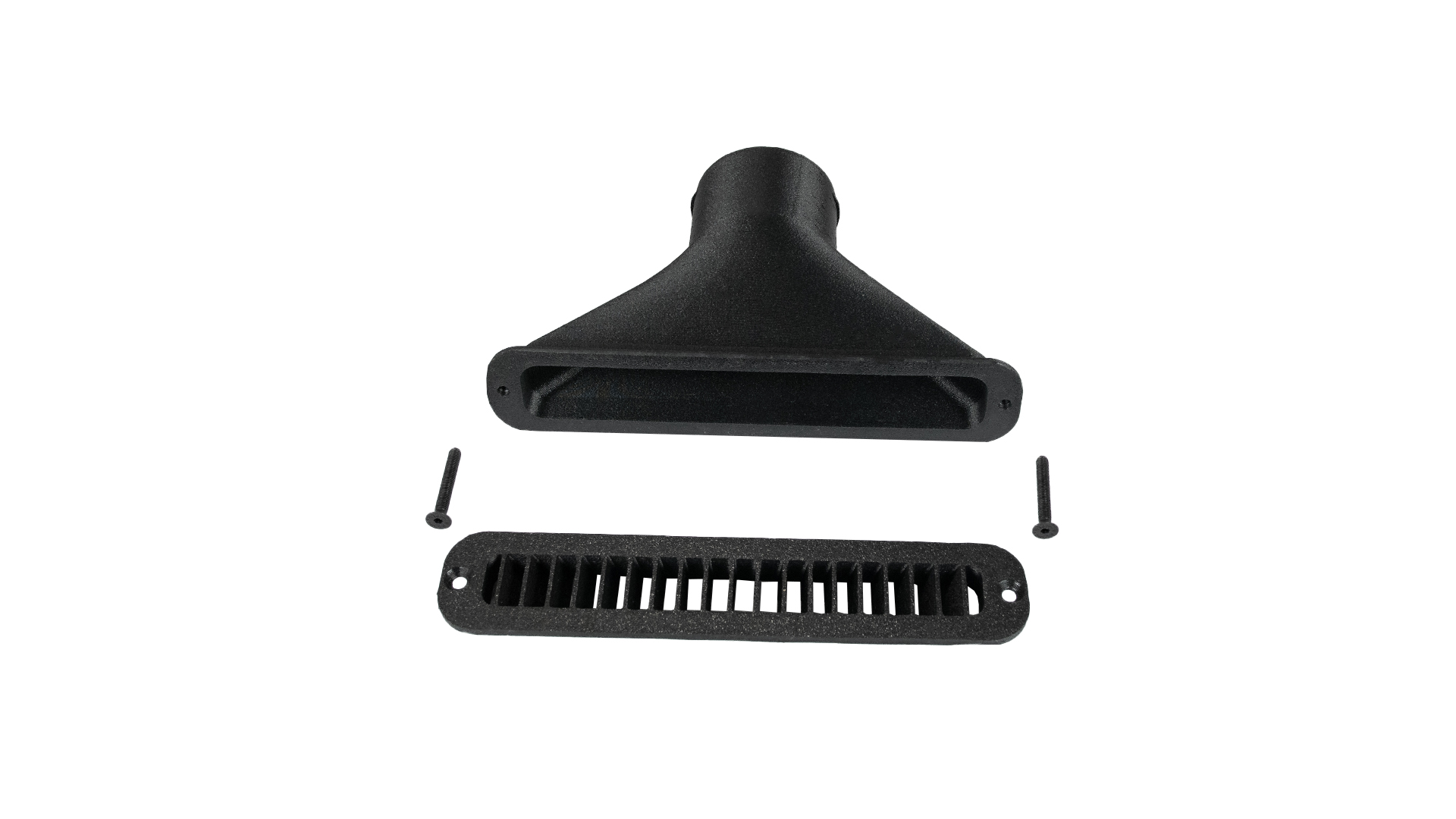

The kit includes:
• Body;
• Front Grill;
• 2x M5x35 Screws DIN 7991;
• Cutout Template;
• Guideline sheet.
Dimensions
| Weight (kg) | 0.0 |
|---|---|
| Length (cm) | 0.0 |
| Width (cm) | 0.0 |
| Height (cm) | 0.0 |
Attributes
| Category | Air heater |
|---|---|
| Air heater | AUTOTERM Air 2D |
| Air heater | AUTOTERM Air 4D |
| Diameter | 60mm |
| Accessories | Air Ducting |
