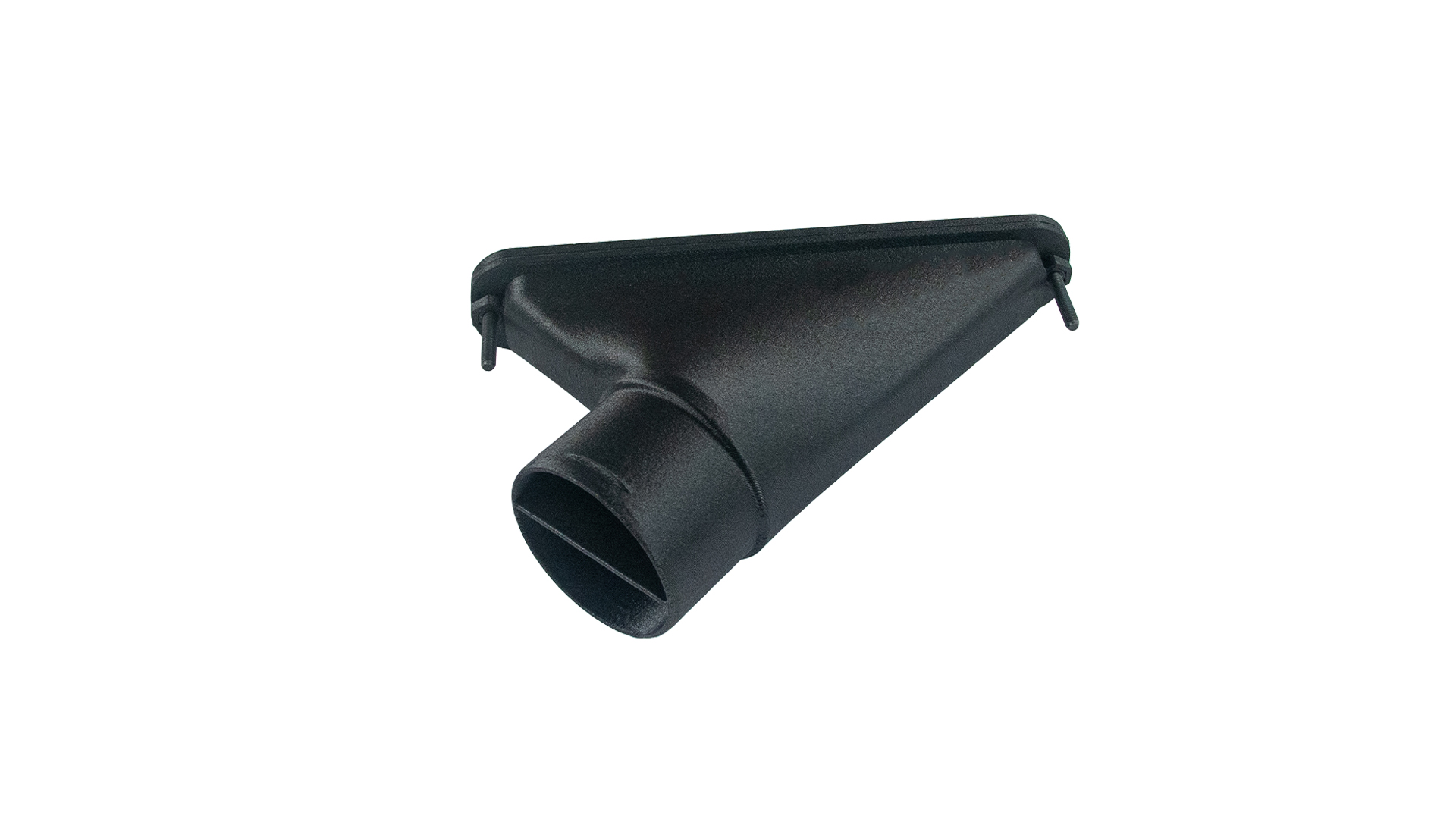

Narrow Diffuser

The Narrow Diffuser is perfect for installation in compact spaces where standard air grilles or deflectors won’t fit.

Ideal for under-window placement, it ensures efficient defrosting and fog prevention.

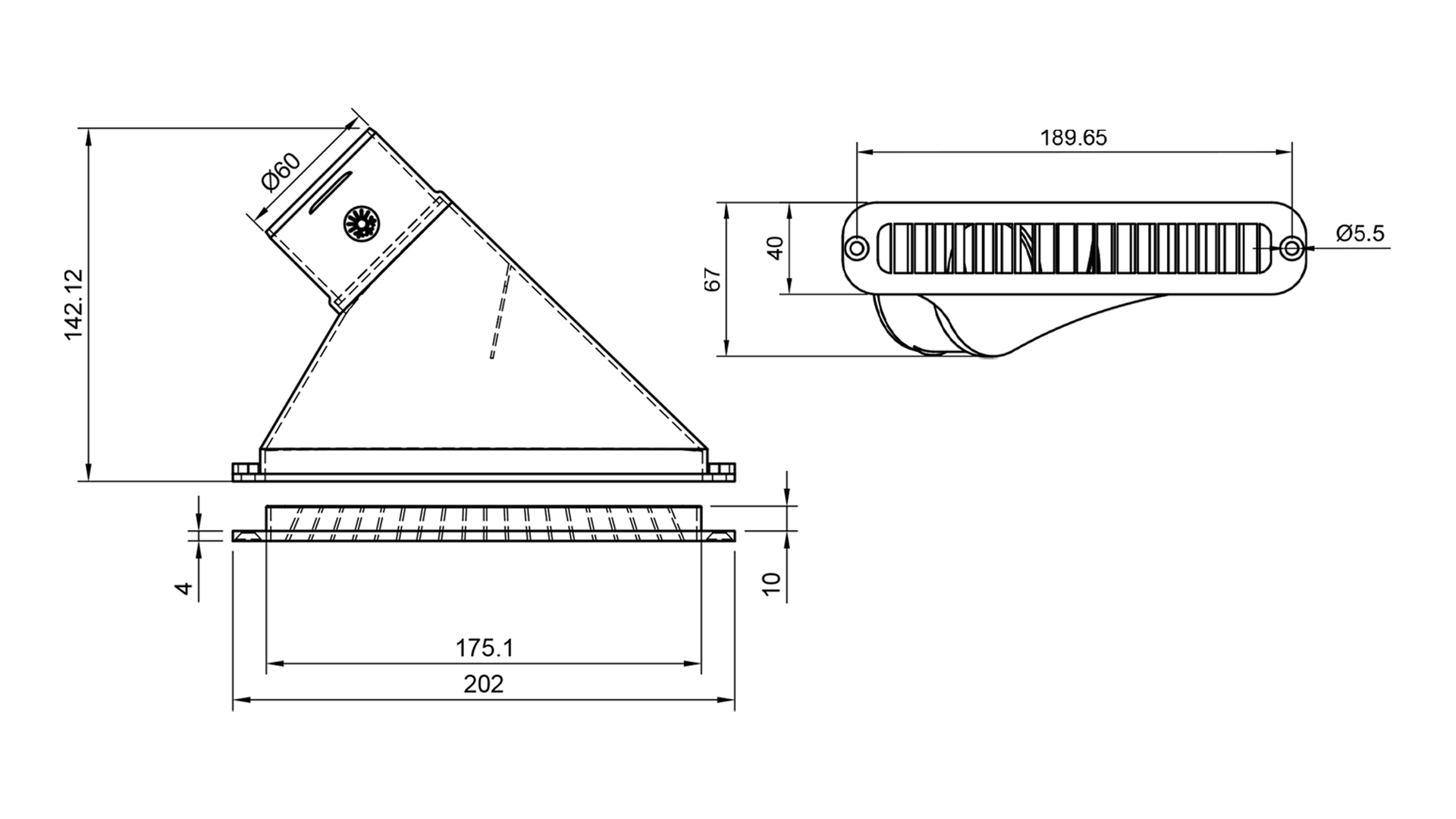

With a 60mm connection, it easily connects directly to Air 2D heaters.

For Air 4D heater installations, using a Y-shape adapter (Assy DE041) is recommended to connect at least two Narrow Diffusers or a combination of one Regular Grille (Assy AT2-G30D60-BK), plus Flange (Assy ATR2-FD60-BK) and one Narrow Diffuser, ensuring proper airflow and preventing overheating.

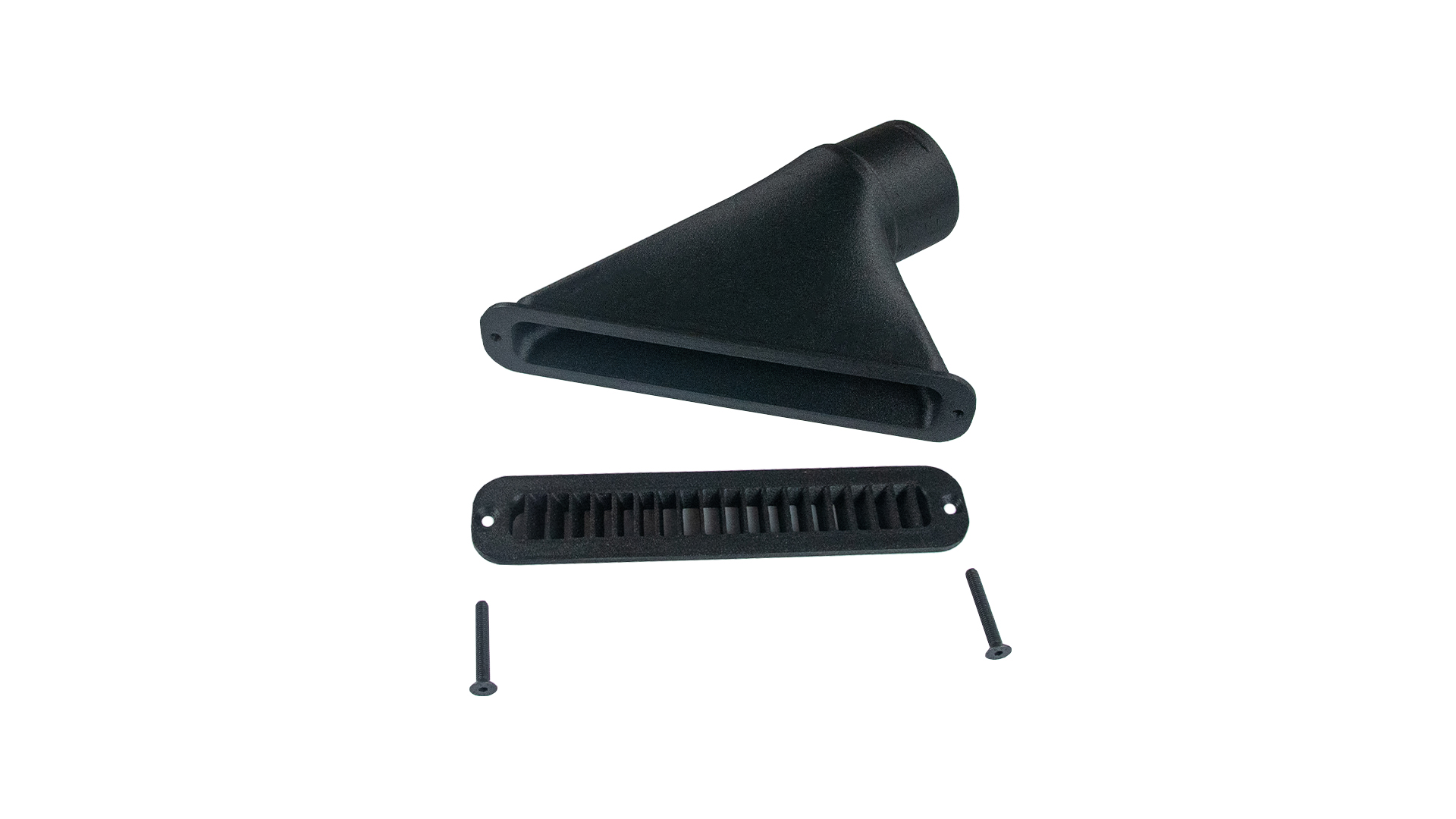

The kit includes:

• Body;

• Front Grill;

• 2x M5x35 Screws DIN 7991;

• Cutout Template;

• Guideline sheet.

This diffuser comes with DIN 7991 M5x35 screws for mounting surfaces from 0,5 to 24mm in thickness. For thicker surfaces, longer DIN 7991 M5 screws can be used.
