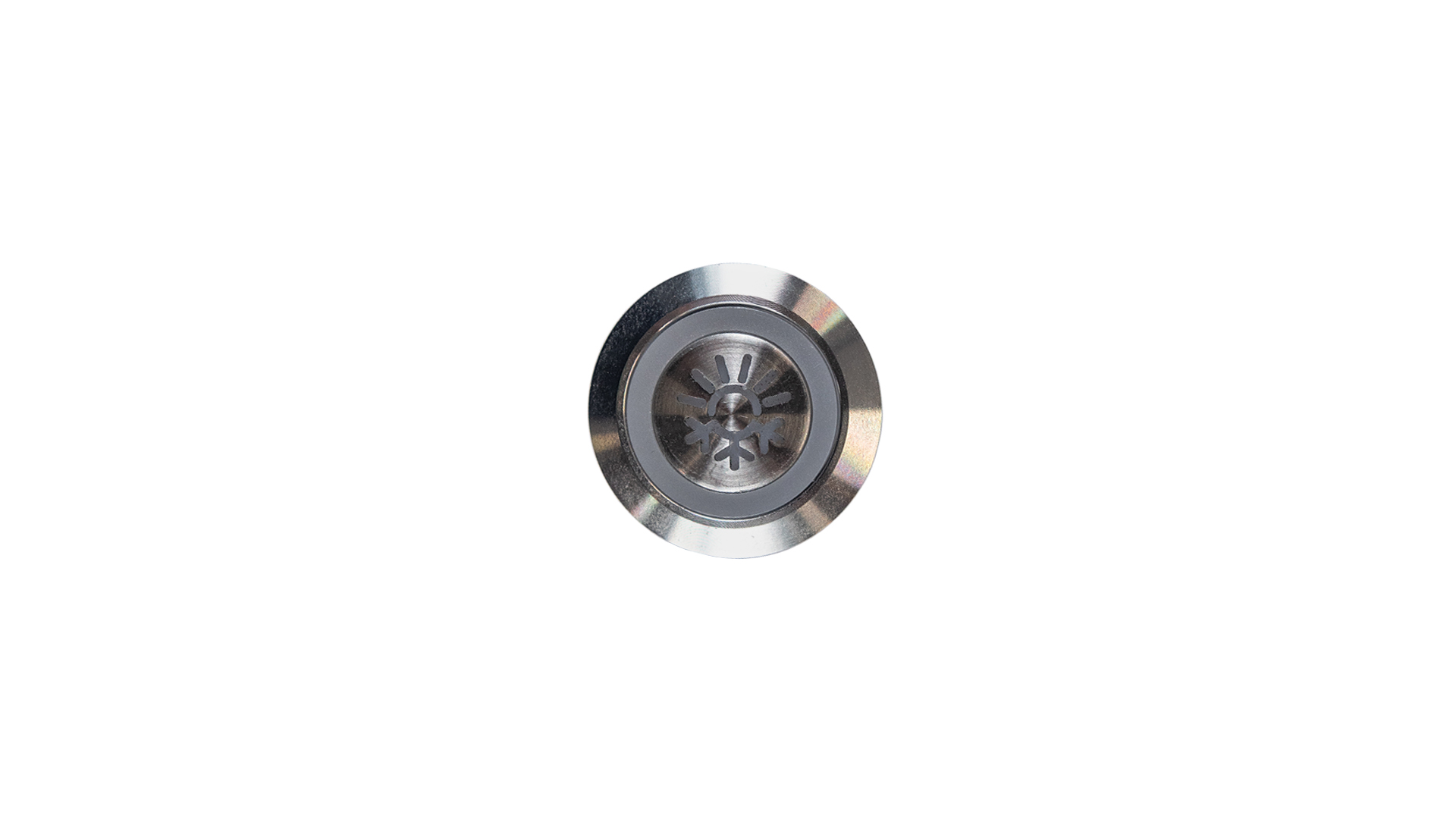

Push Control L

For AUTOTERM Air and Flow heaters

The AUTOTERM Push Control is a compact and user-friendly device designed for operating AUTOTERM heaters with various operation modes and features, depending on the specific heater model. It comes together with a control module and wire to connect to the heater.

Featuring an IP67-grade specification and a Stainless Steel body, it is waterproof and durable even in the harshest weather conditions.

With its easy-to-operate design, managing your Autoterm heaters has never been simpler.

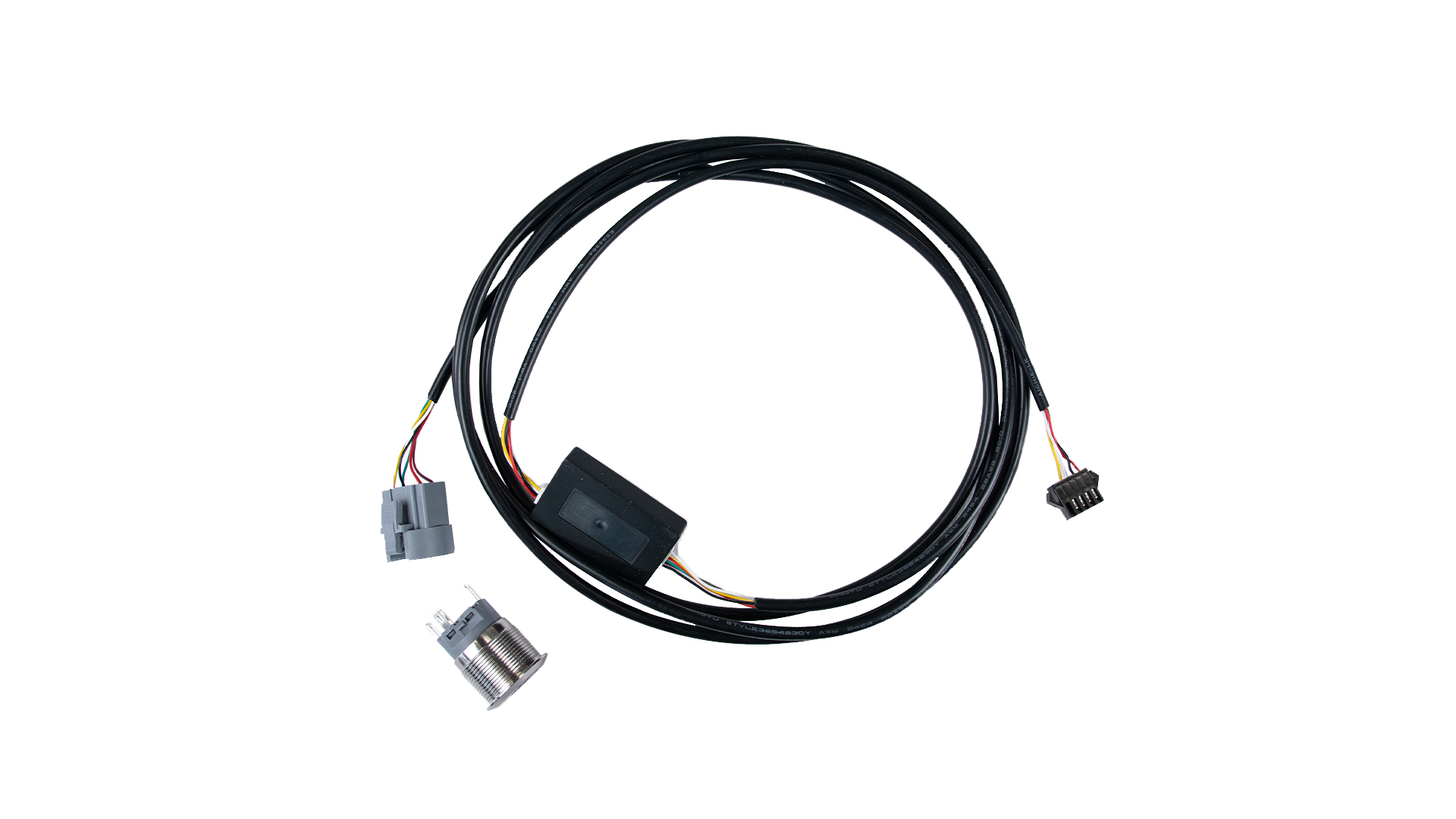

It pairs with AUTOTERM Comfort Control to provide dual control for a single heater system. Note that a Push Module Wire (assy. AT4-0014-AF0), which is sold separately, is necessary to connect them!

Support for additional panels will be added soon!

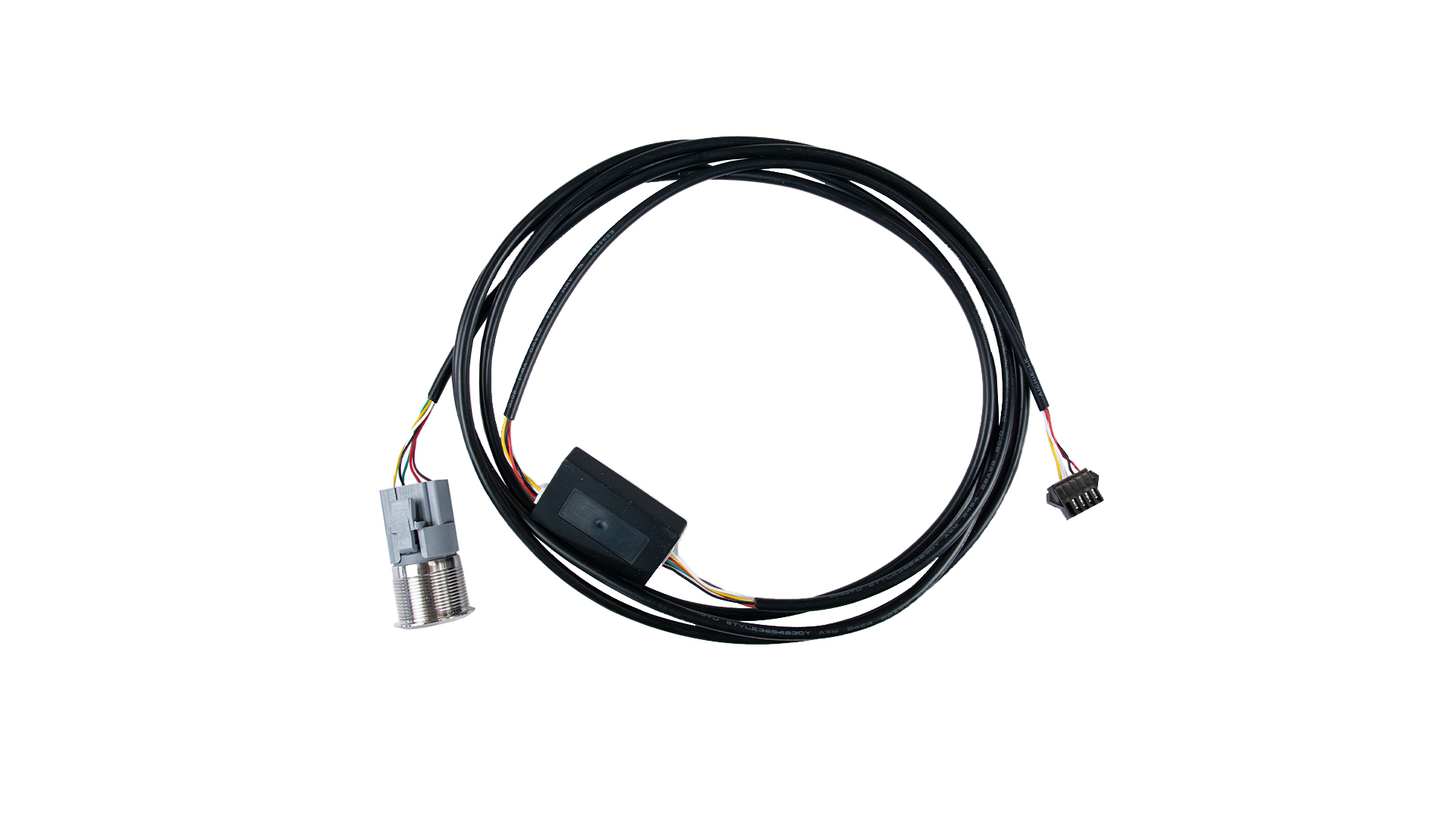

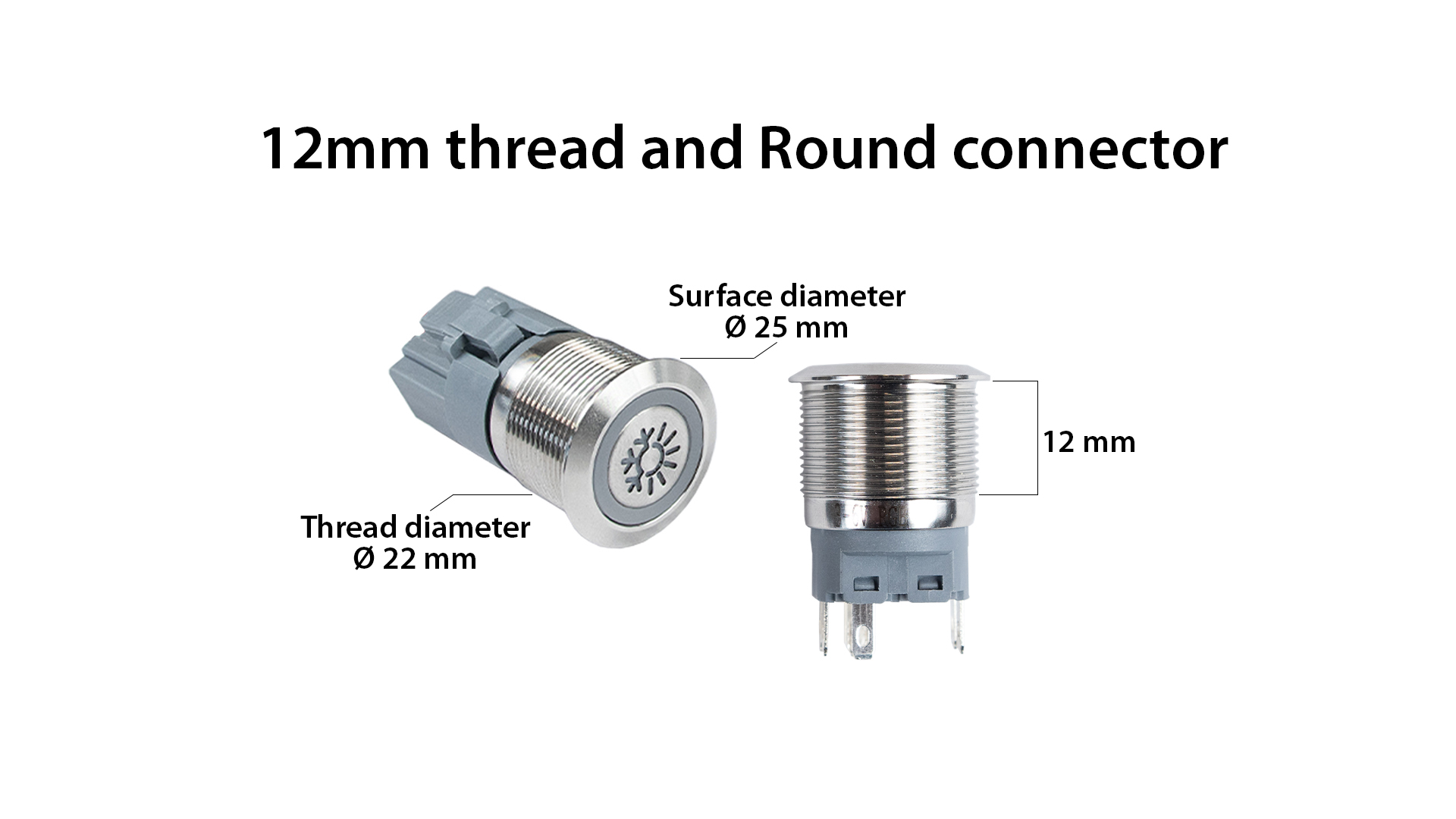

This Push Button has a 12mm thread and Round connector but there is also a second modification with 6mm thread and Molex connector!

     Heating modes for Air heaters

POWER MODE:

• The default heating mode for the Push Control button.

TEMPERATURE MODE (Works only with a connected external temperature sensor):

• Designed to heat the space to the required temperature;
• Heat output decreases as the difference between the desired temperature and the temperature in the space decreases.

* The temperature mode for Air 2D 12/24V and 4D 12/24V heaters in the 6355, 6350, 6260, and 6265 series versions have a new algorithm. In this mode, the heater acts normally by lowering power when it gets near the set temperature. However, if it goes past the temperature setpoint, the heater will turn off and wait until the temperature drops by 3 degrees below the temperature setpoint before starting again.

     Heating modes for Liquid heaters
PRE-HEATING MODE:

The heater will operate till the certain coolant temperature is reached then shuts off the combustion process. After the temperature of the coolant drops heating will start again.
     Temperature sensor
Custom calibrated digital sensor with +/- 1.5 degree offset.
        Status display

• MIN= Blue

• LOW= Purple

• MED= Green

• High= Yellow

• MAX= RED

• Blinking RED - error code

• Blinking Red/Blue - switching off

     Wiring compatibility

• assy.2067 -  Wiring for control panel (1.8 m)
• assy.2324 - Wiring for control panel (5.0 m)
• assy.3298 - Wiring for control panel (7.0 m)
• assy.4269 - Extension wiring for control panel (2.6 m)
• assy.4366 - Cable wiring for AUTOTERM Flow 5D (12V)
• assy.4044 - Cable wiring for AUTOTERM Flow 5D / 5B (12V)
• assy.4394 - AUTOTERM Flow 14D wiring harness for control panel (1.8 m)

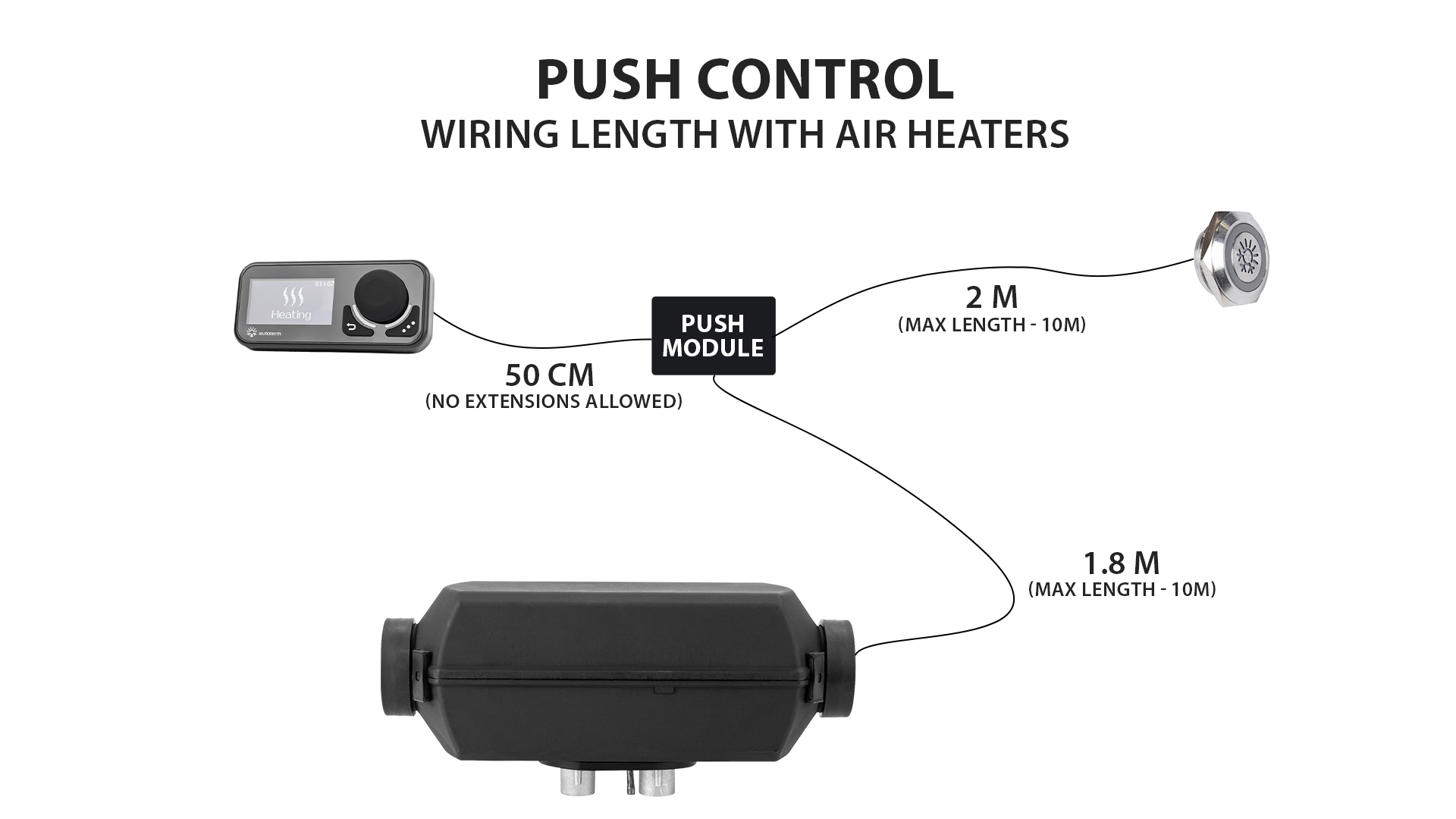

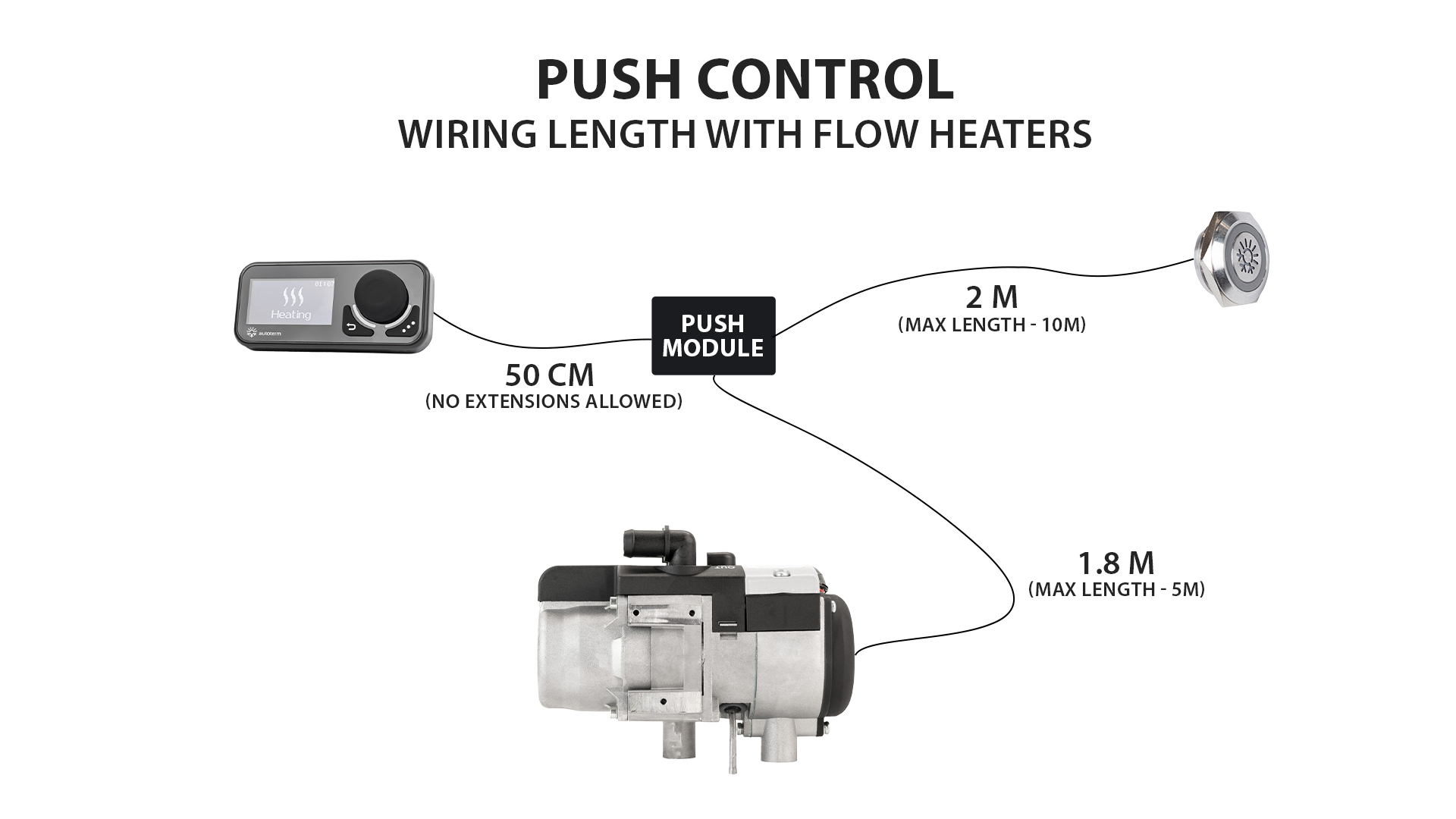

Maximum allowed cable wiring length with Comfort Control - 10 m

     AUTOTERM heater compatibility

AUTOTERM air heaters:

• AUTOTERM Air 2D
• AUTOTERM Air 4D
• AUTOTERM Air 8D
• AUTOTERM Air 9D

AUTOTERM liquid heaters:

• AUTOTERM Flow 5D / 5B
• AUTOTERM Flow 14D

(for verification of compatibility for older heaters sold by AUTOTERM, please contact us at service@autoterm.com)
     Button surface diameter (mm)
25
     Button thread diameter (mm)
22
