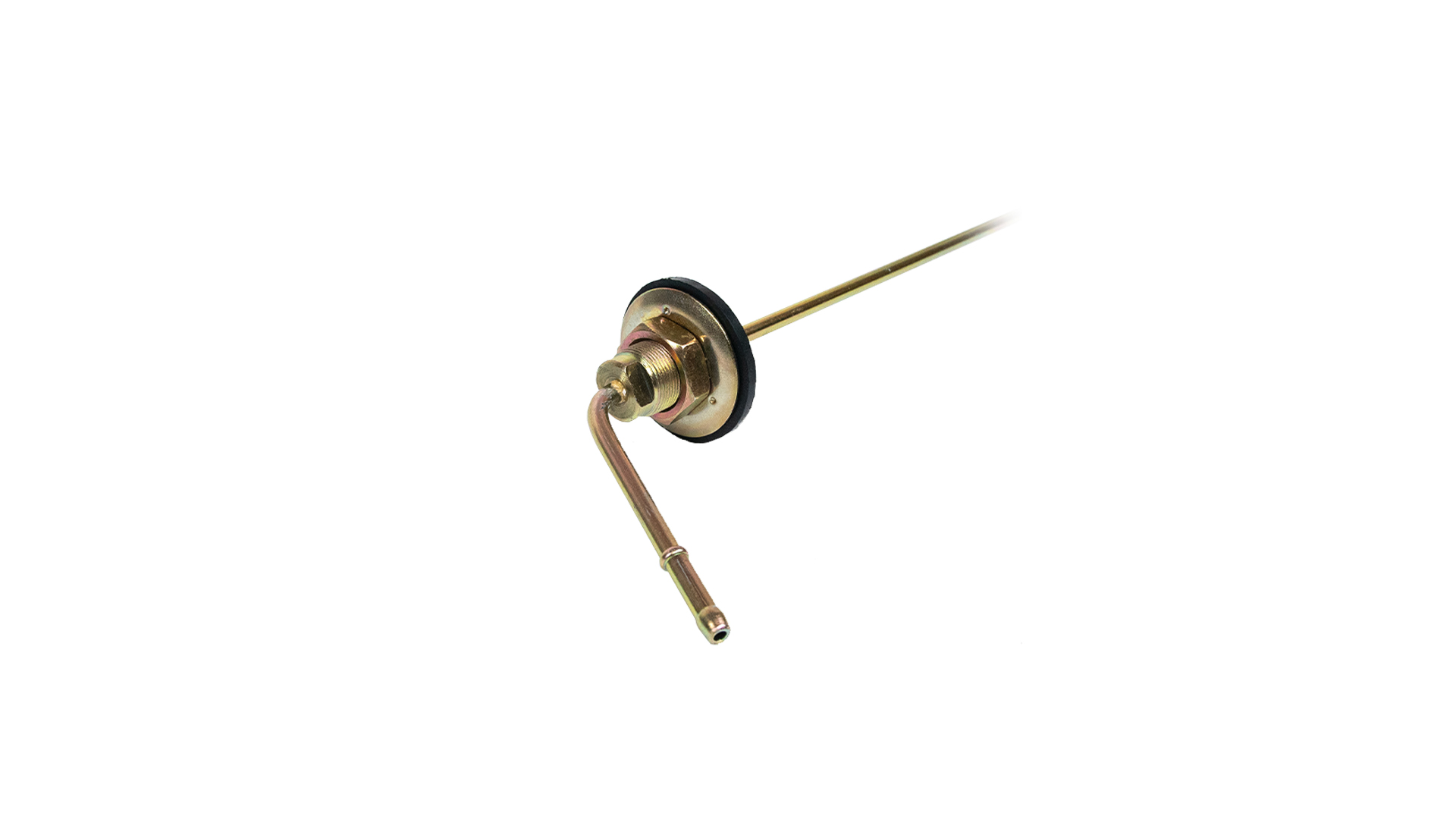

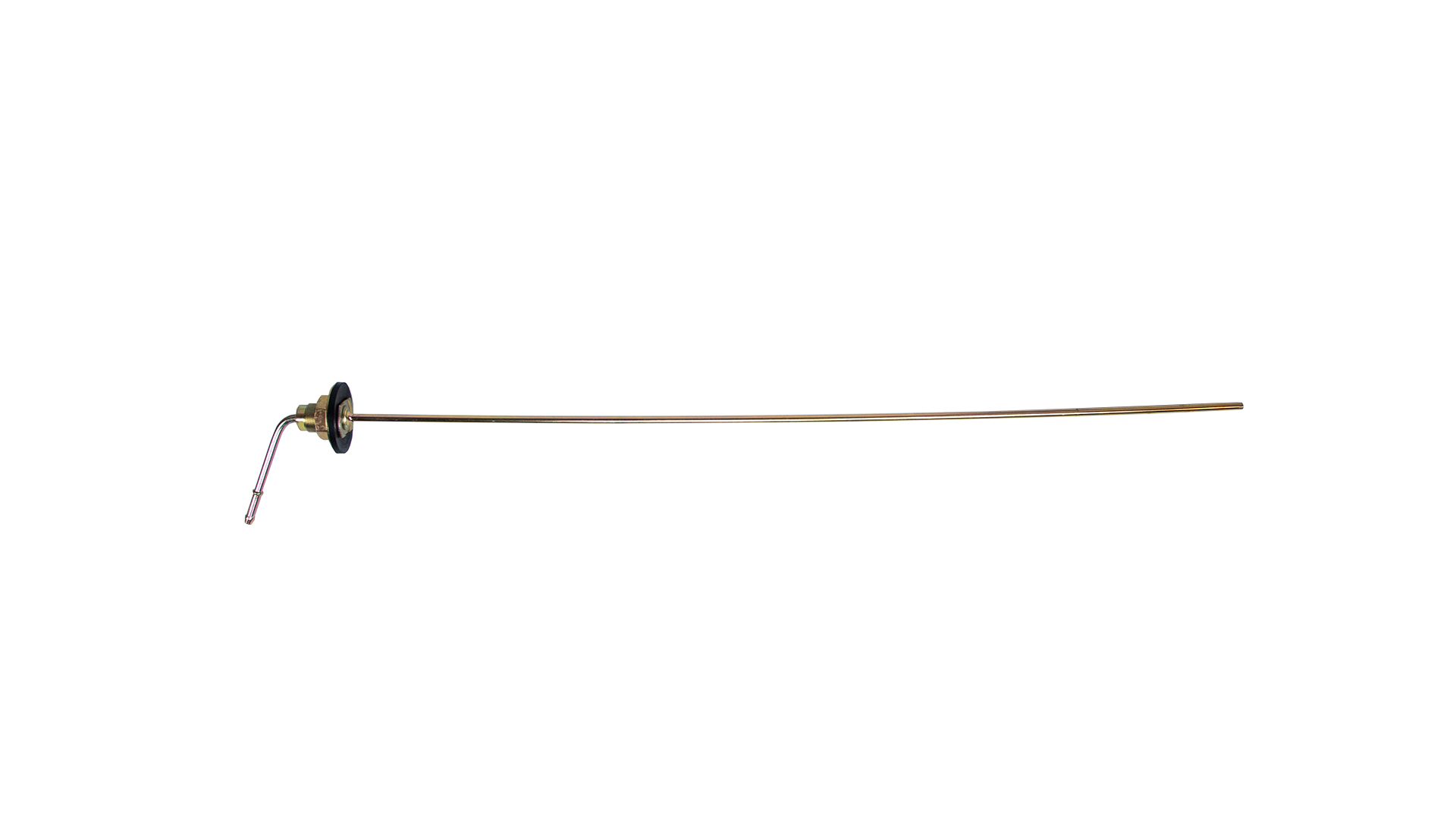

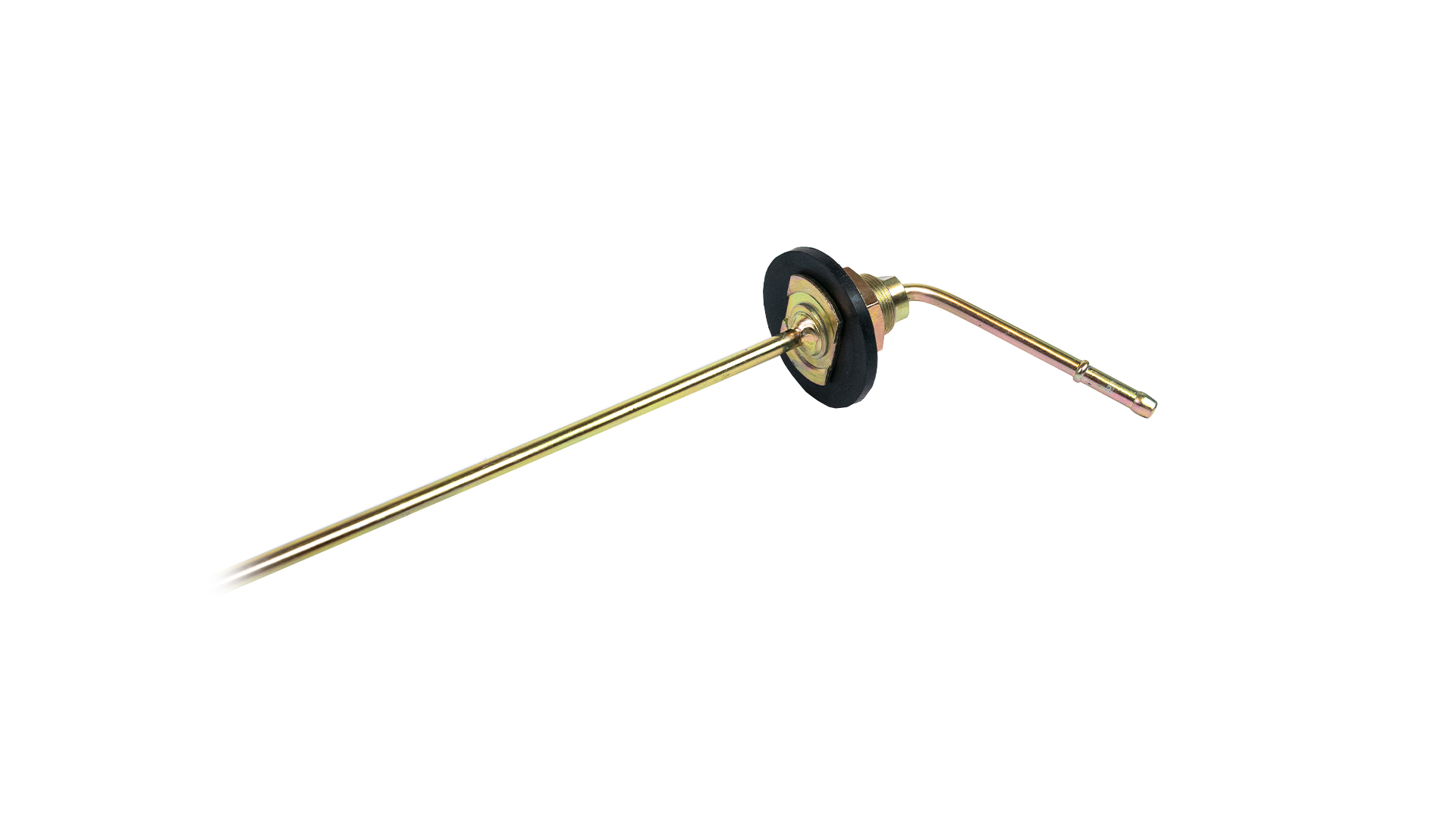

Fuel stand pipe
Overview
For: all AUTOTERM heaters / Length: 65 cm
Technical
The fuel standpipe is suitable for the following AUTOTERM heaters:
Air heaters:
Liquid heaters:
This fuel standpipe is included in AUTOTERM Air 9D and Flow 14D heater basic sets.

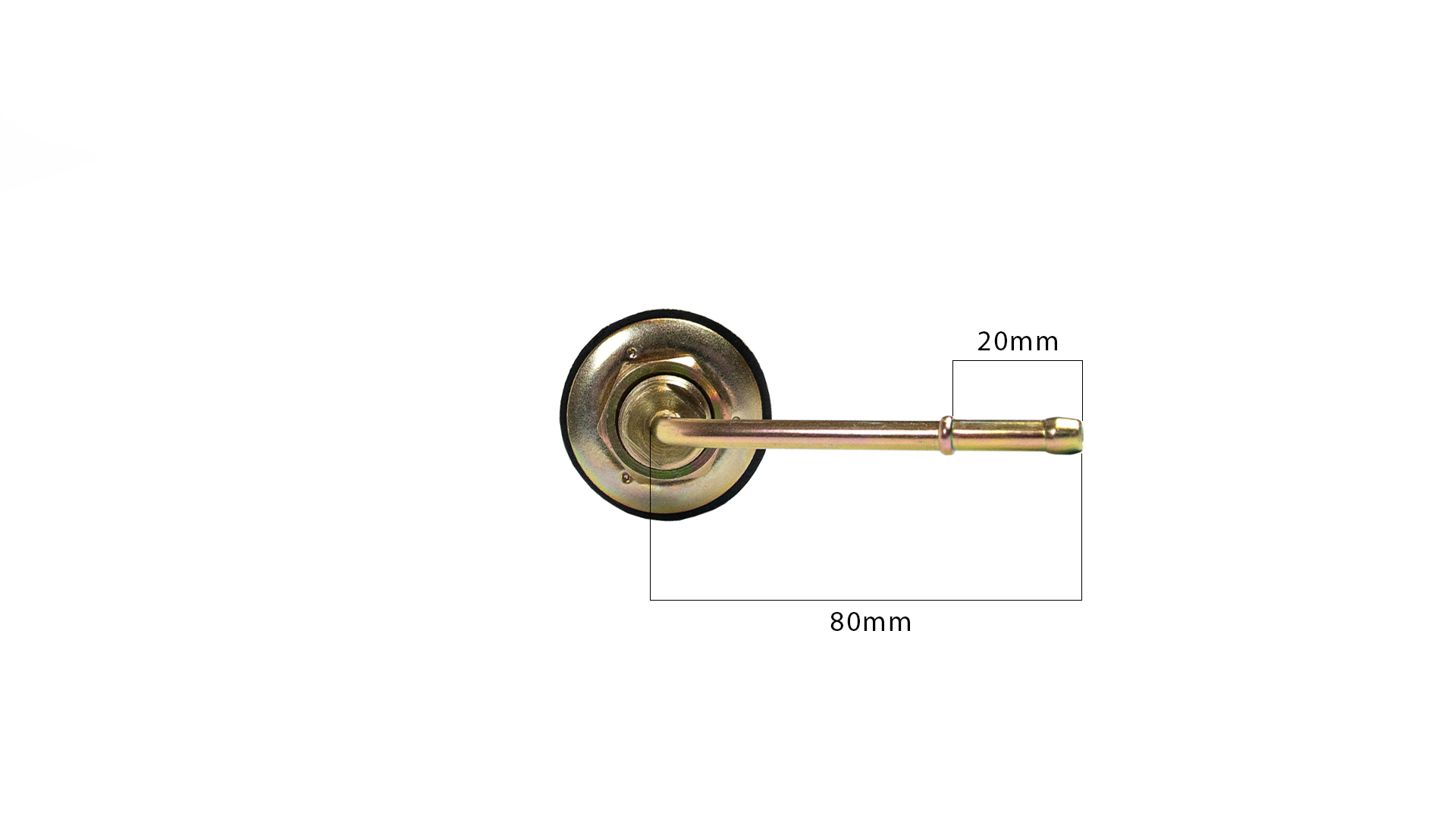

Dimension:

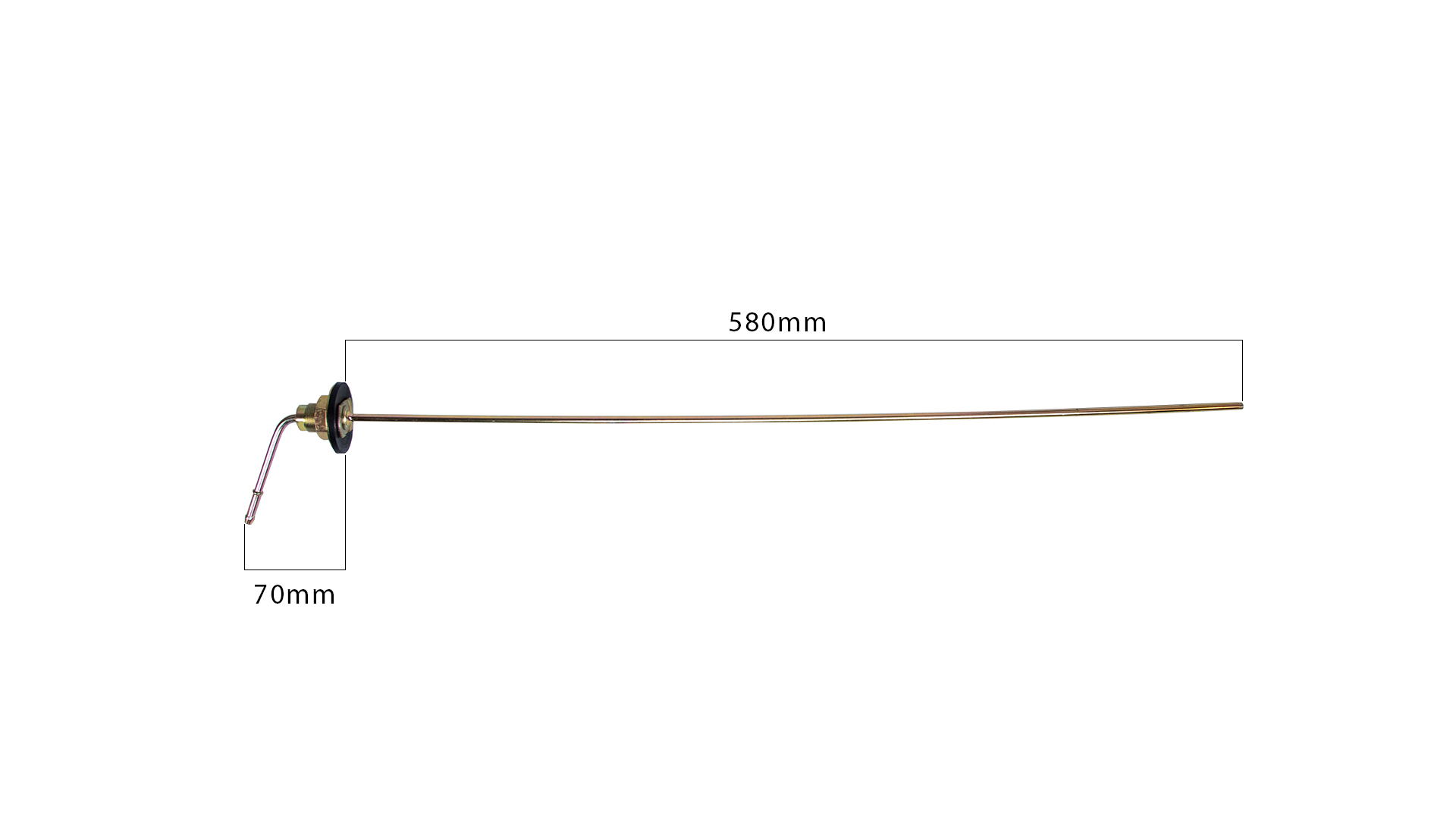

Pipe length: 650 mm
Pipe diameter: 5 mm

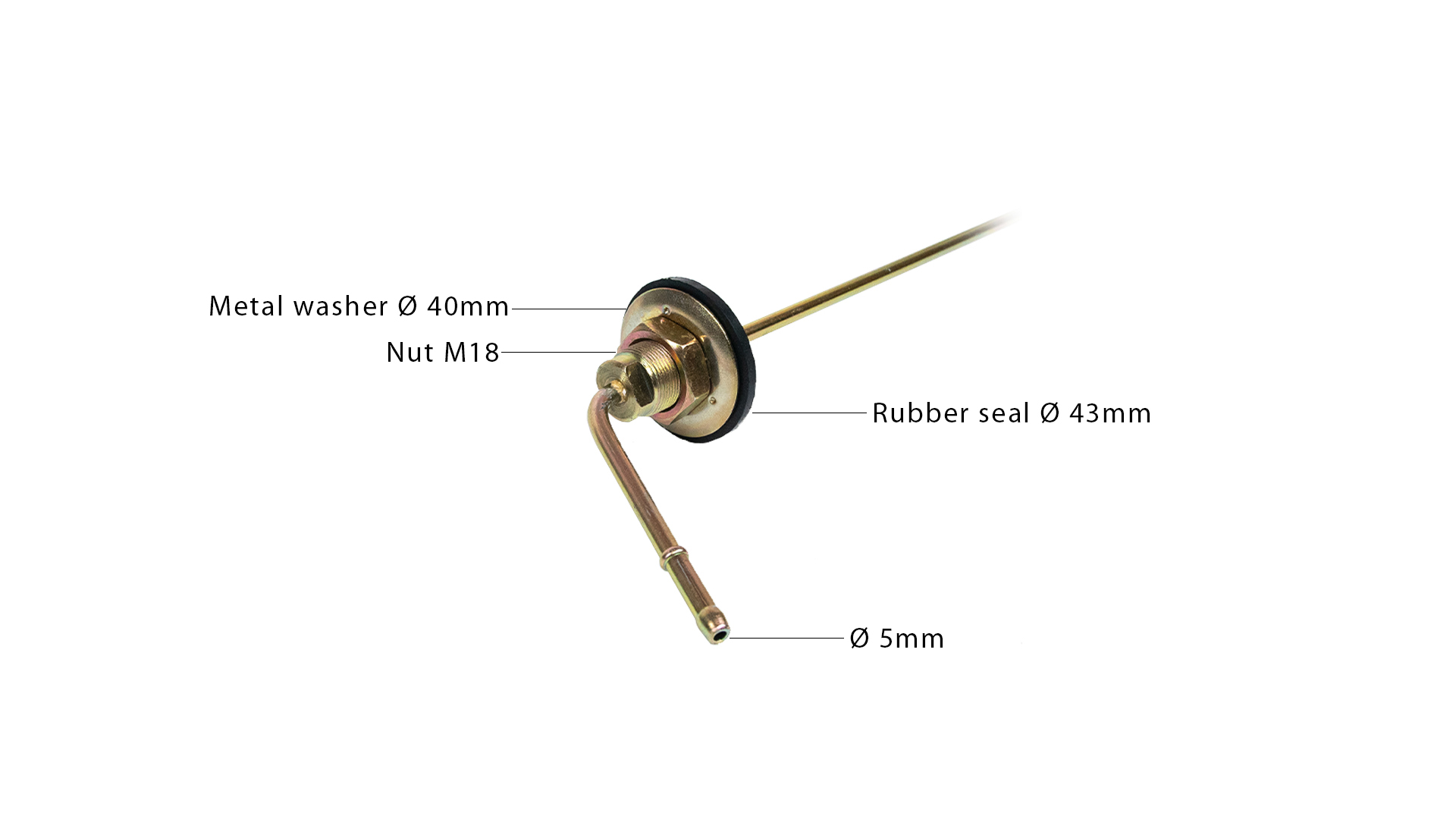

Includes:
Metal washer Ø40 mm
Rubber seal Ø43 mm
Nut - M18
Dimensions
| Weight (kg) | 0.0 |
|---|---|
| Length (cm) | 0.0 |
| Width (cm) | 0.0 |
| Height (cm) | 0.0 |
Attributes
| Category | Air heater |
|---|---|
| Category | Liquid heater |
| Liquid heaters | AUTOTERM Flow 14D |
| Air heater | AUTOTERM Air 9D |
| Spare parts | Fuel system |
| Accessories | Fuel |
