Mounting bracket for VW T5/T6 buses
Overview
For: Air 2D / 300 x 271 x 175 mm / Stainless steel 316
Technical

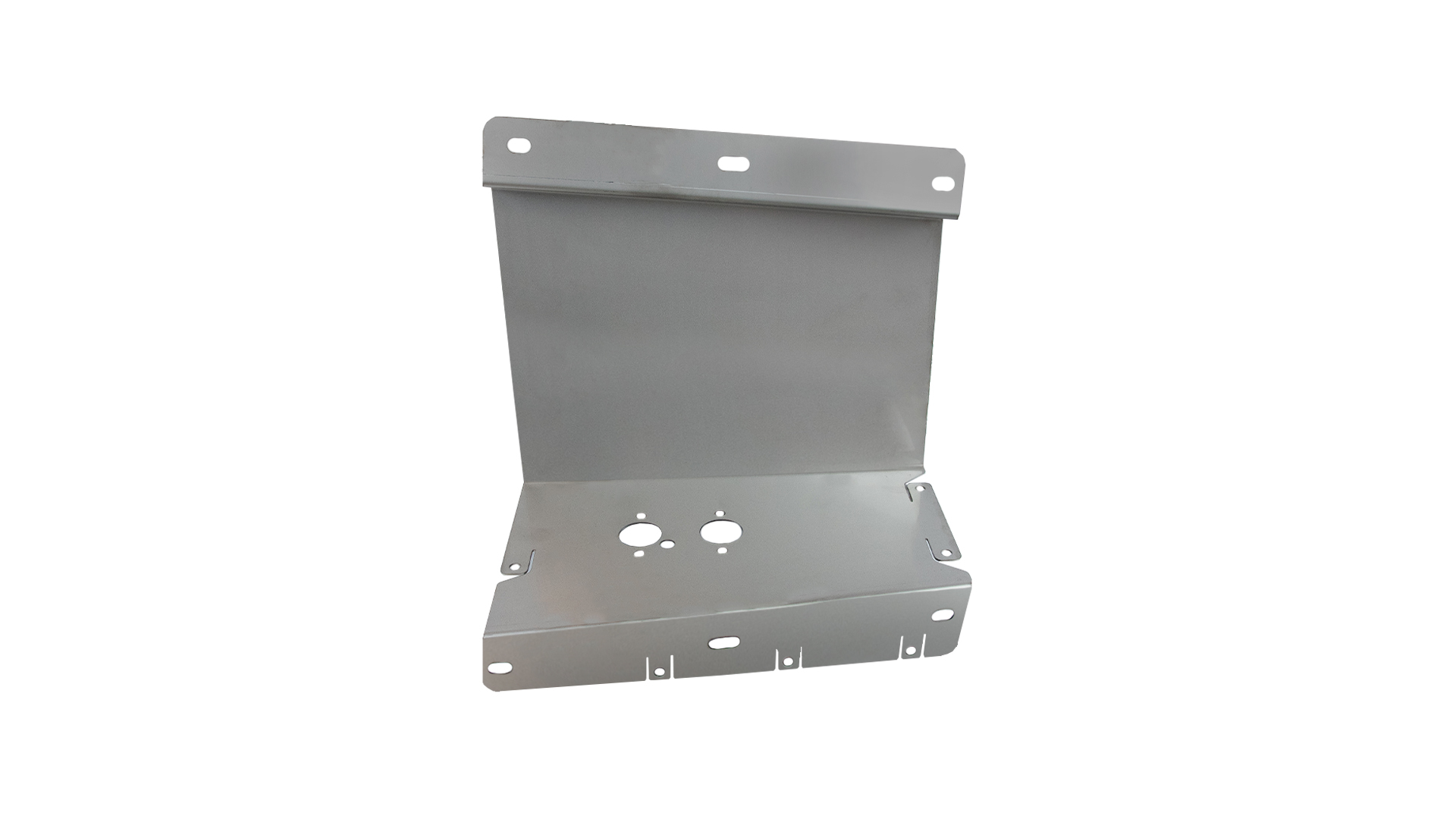

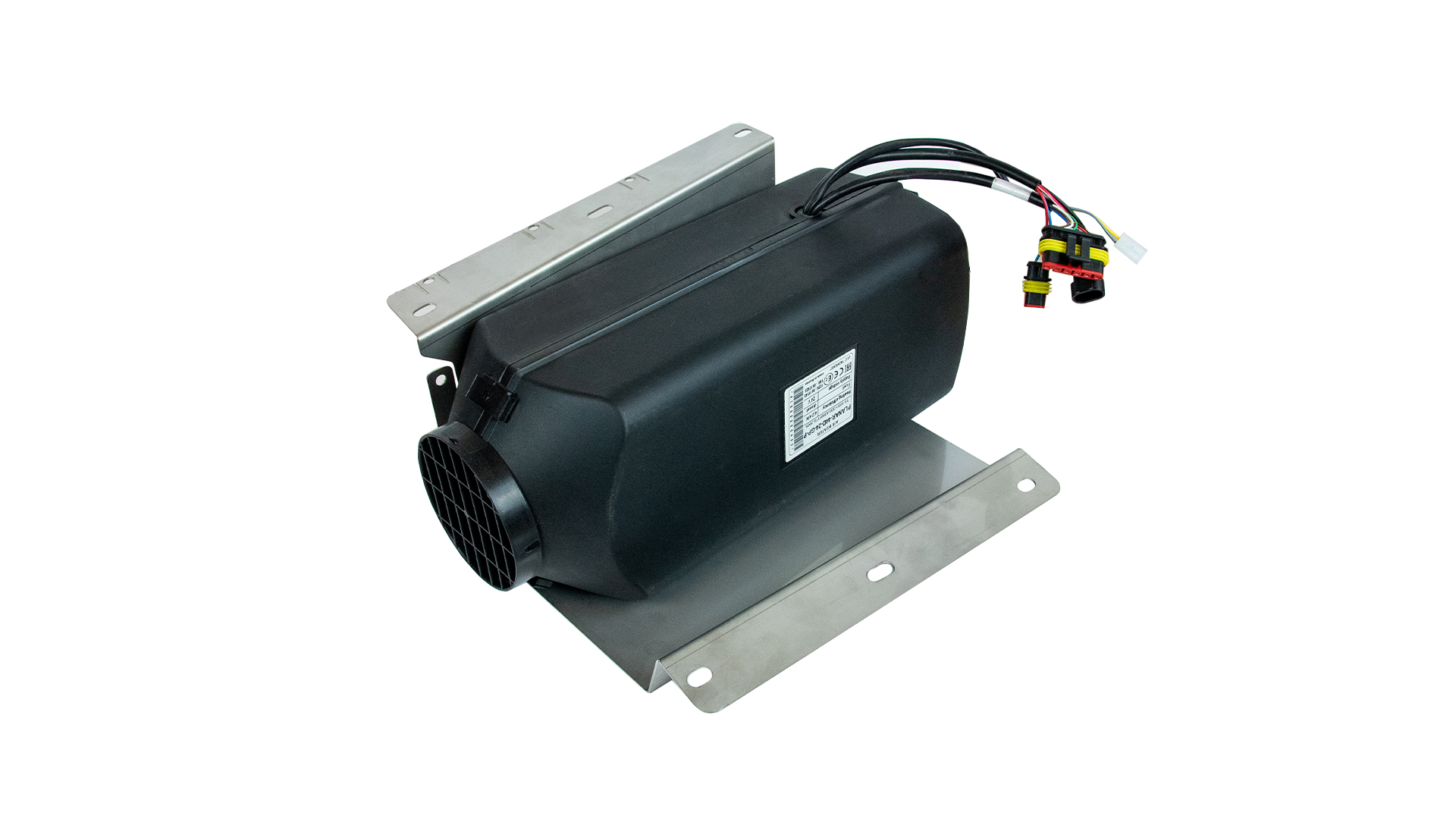

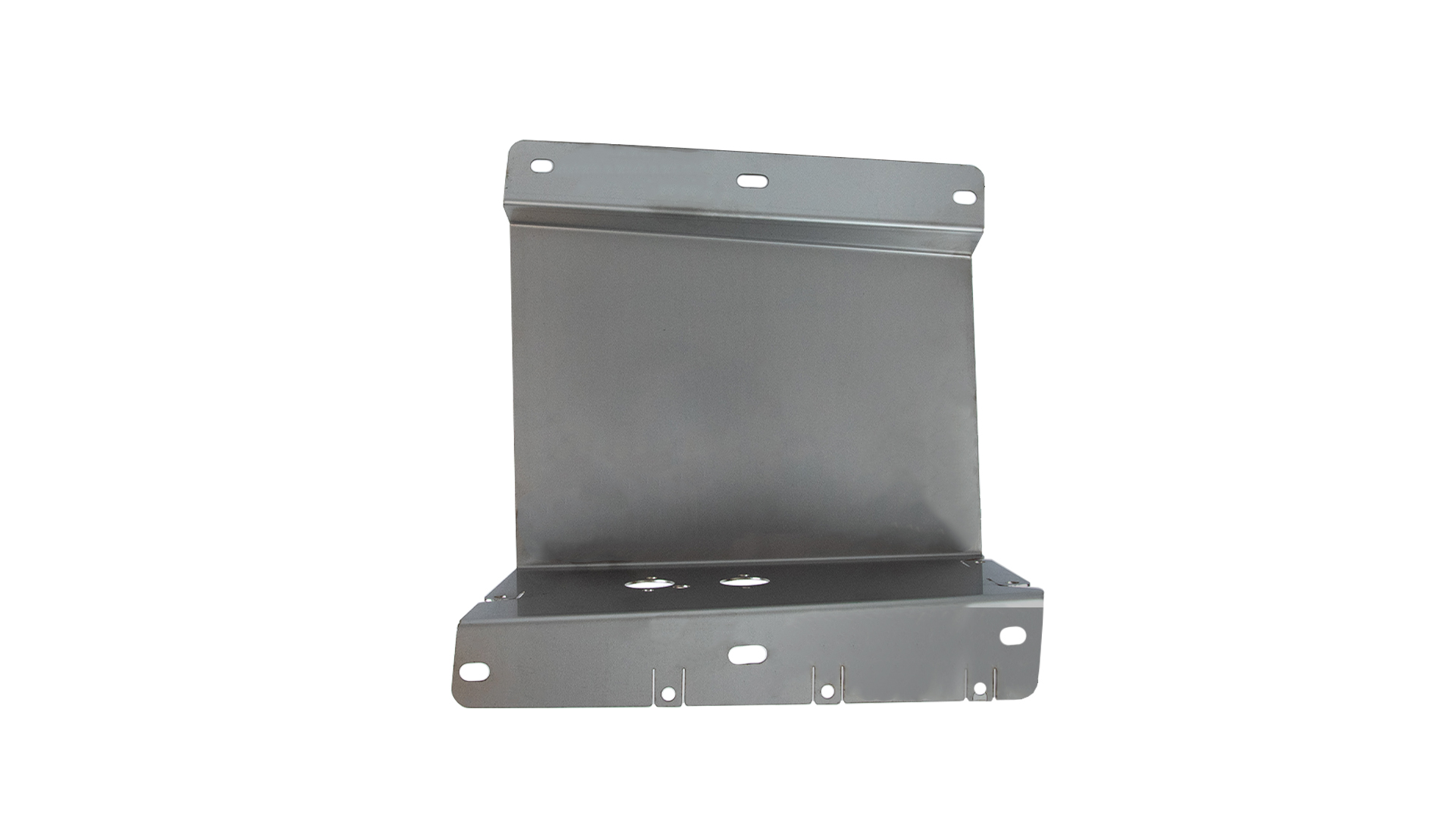

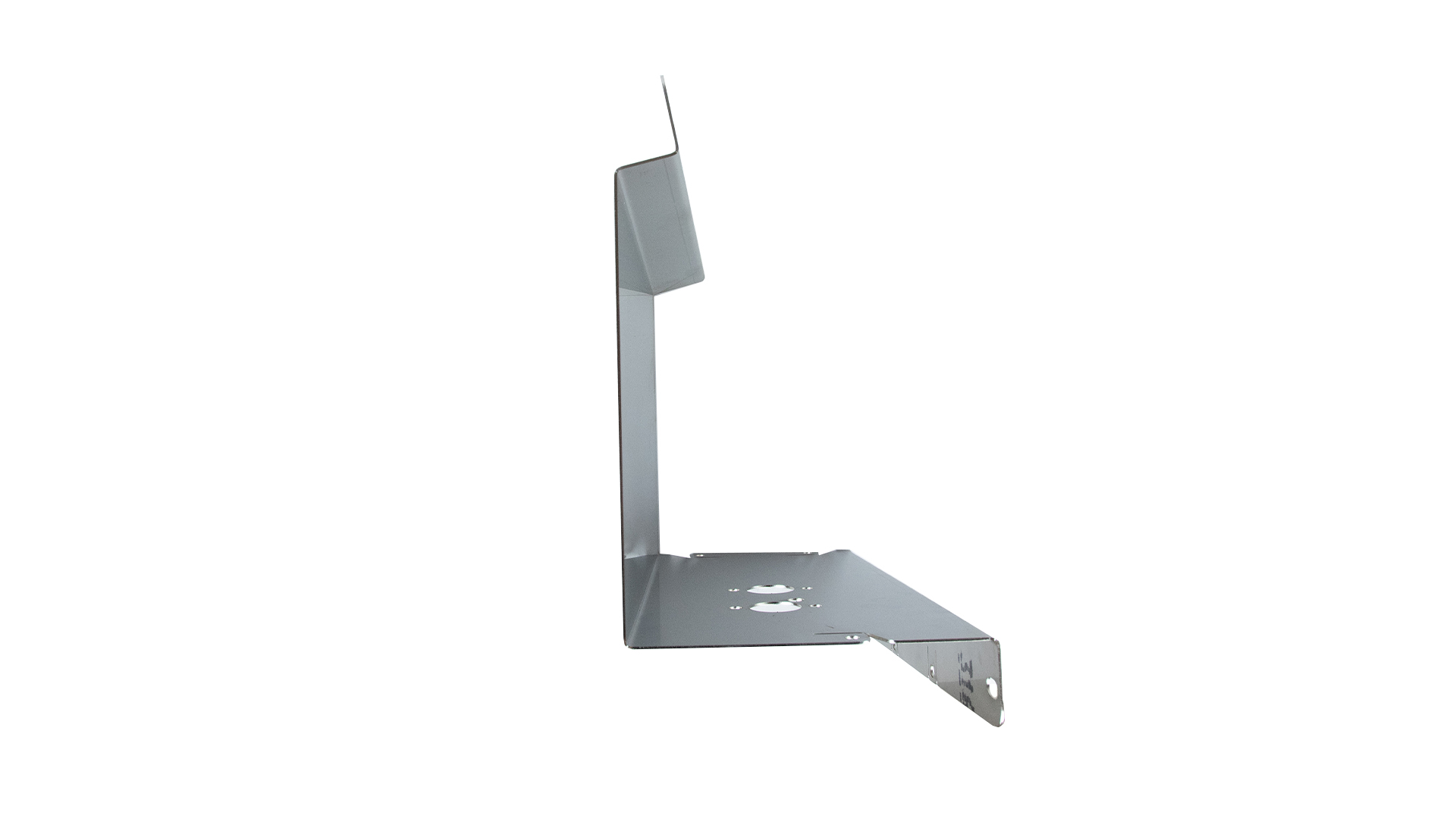

This mounting bracket for the Autoterm Air 2D heaters utilizes the designated factory space, positioned beneath the passenger side floor between the step and B-pillar, that was originally meant for an auxiliary heater installation.
Material: Stainless steel (AISI 316)

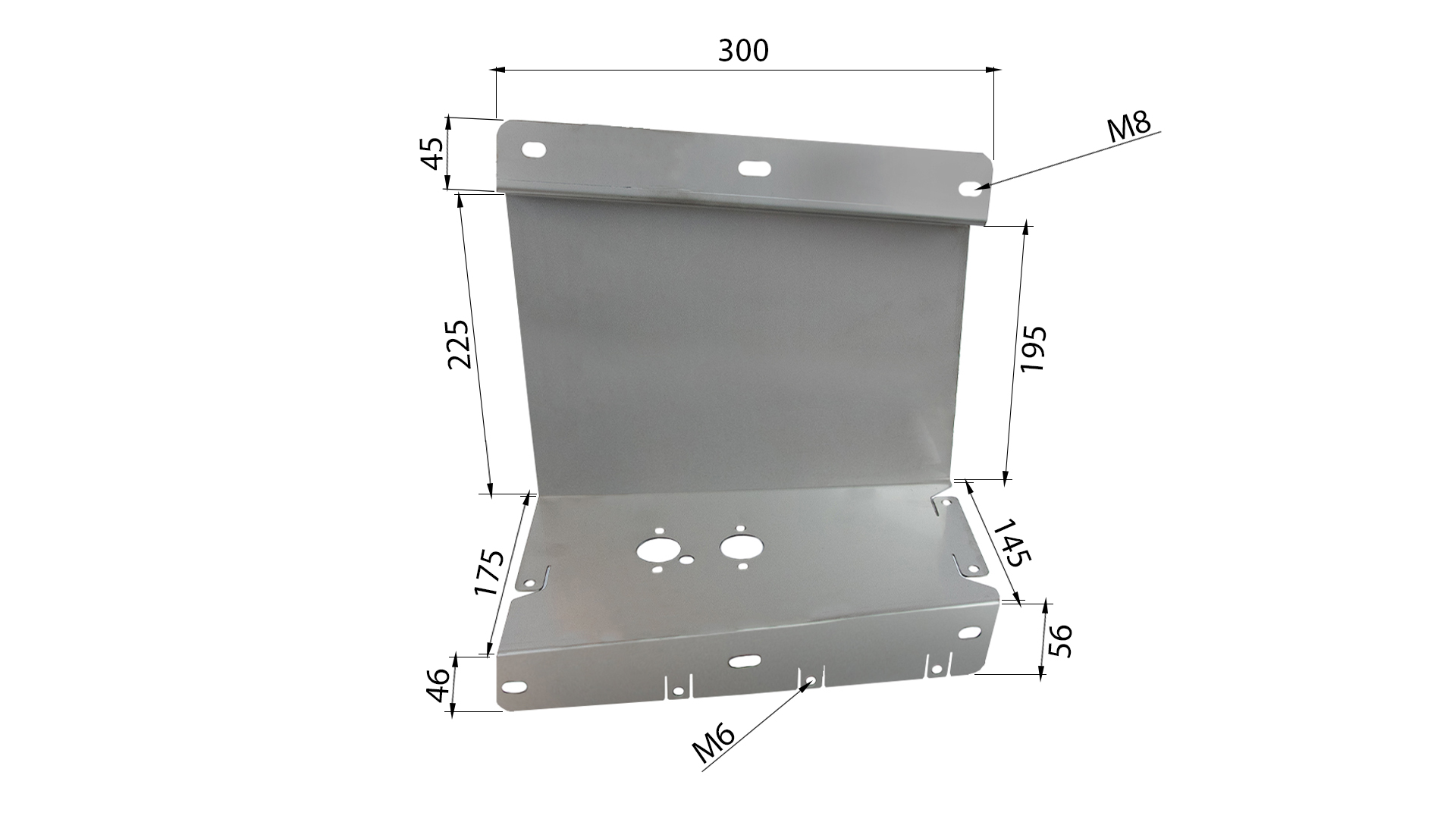

Dimensions: 300x271x175mm
** Please note that the heater's correct/allowed position & angle must be done according to the installation manual of the heaters.
Dimensions
| Weight (kg) | 0.0 |
|---|---|
| Length (cm) | 0.0 |
| Width (cm) | 0.0 |
| Height (cm) | 0.0 |
Attributes
| Category | Air heater |
|---|---|
| Air heater | AUTOTERM Air 2D |
| Accessories | Mounting |
