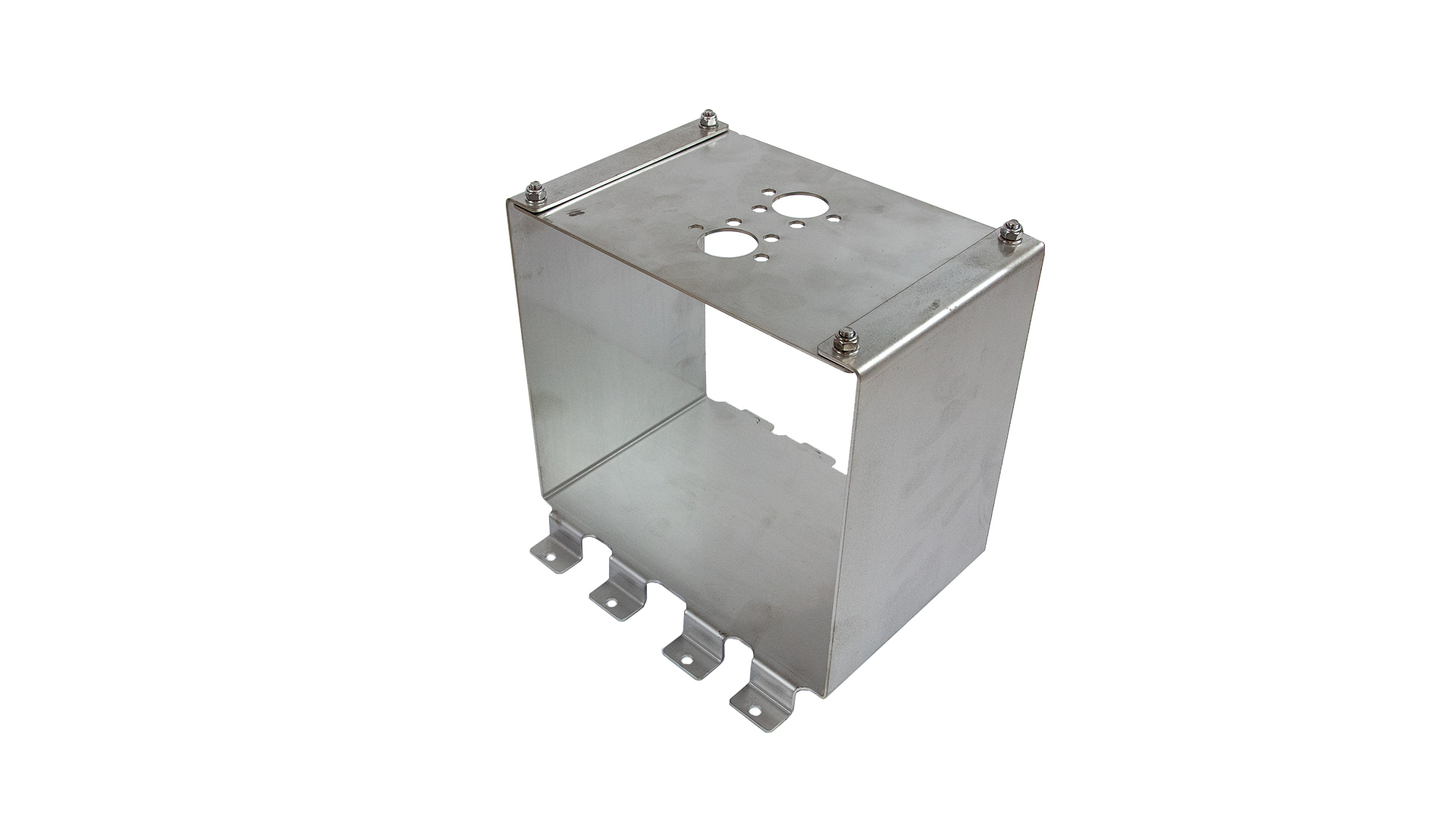

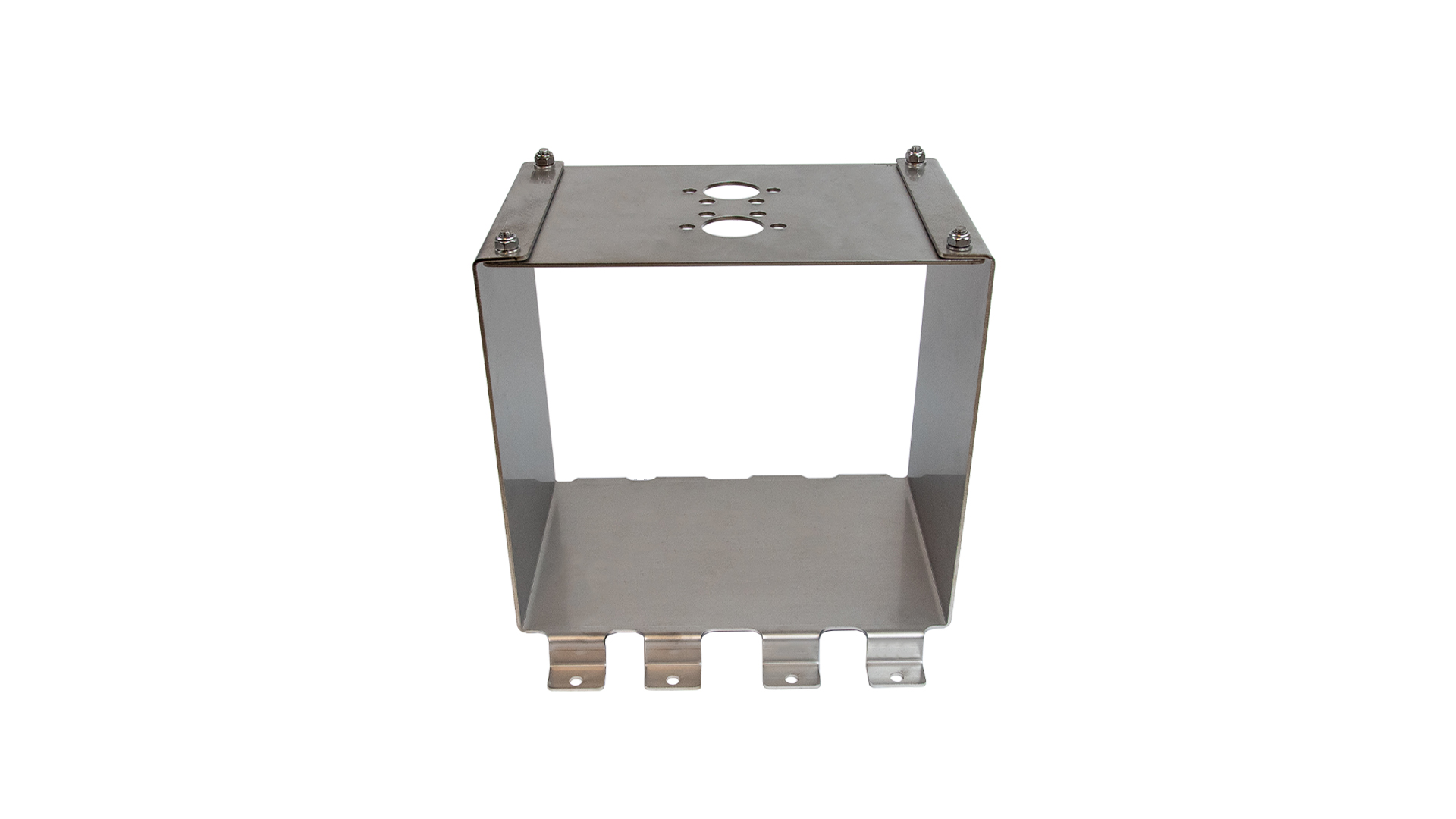

Mounting bracket, Universal
Overview
Technical

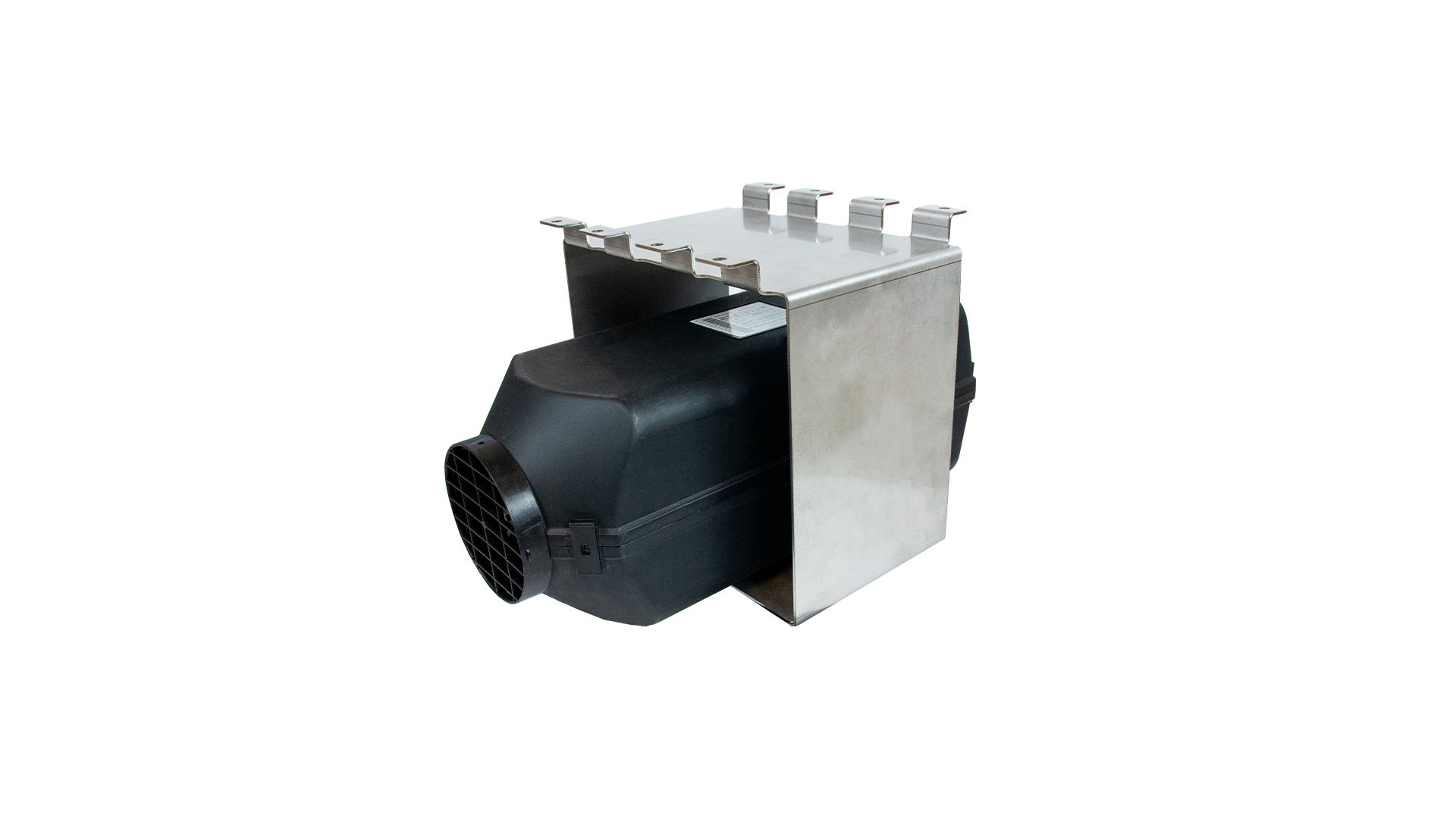

This mounting bracket can be used stand-alone for:
Or as a support mounting bracket for:

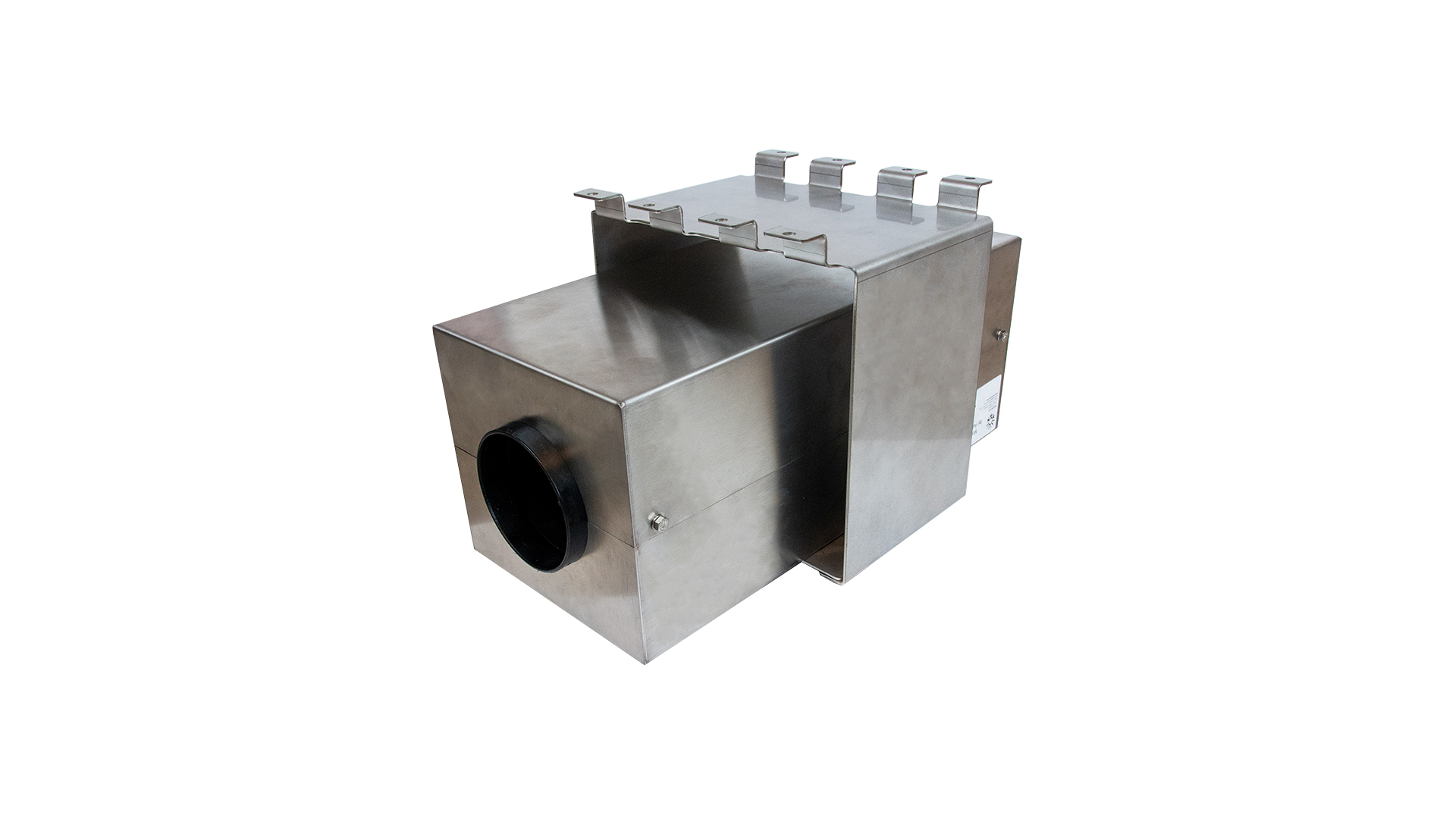

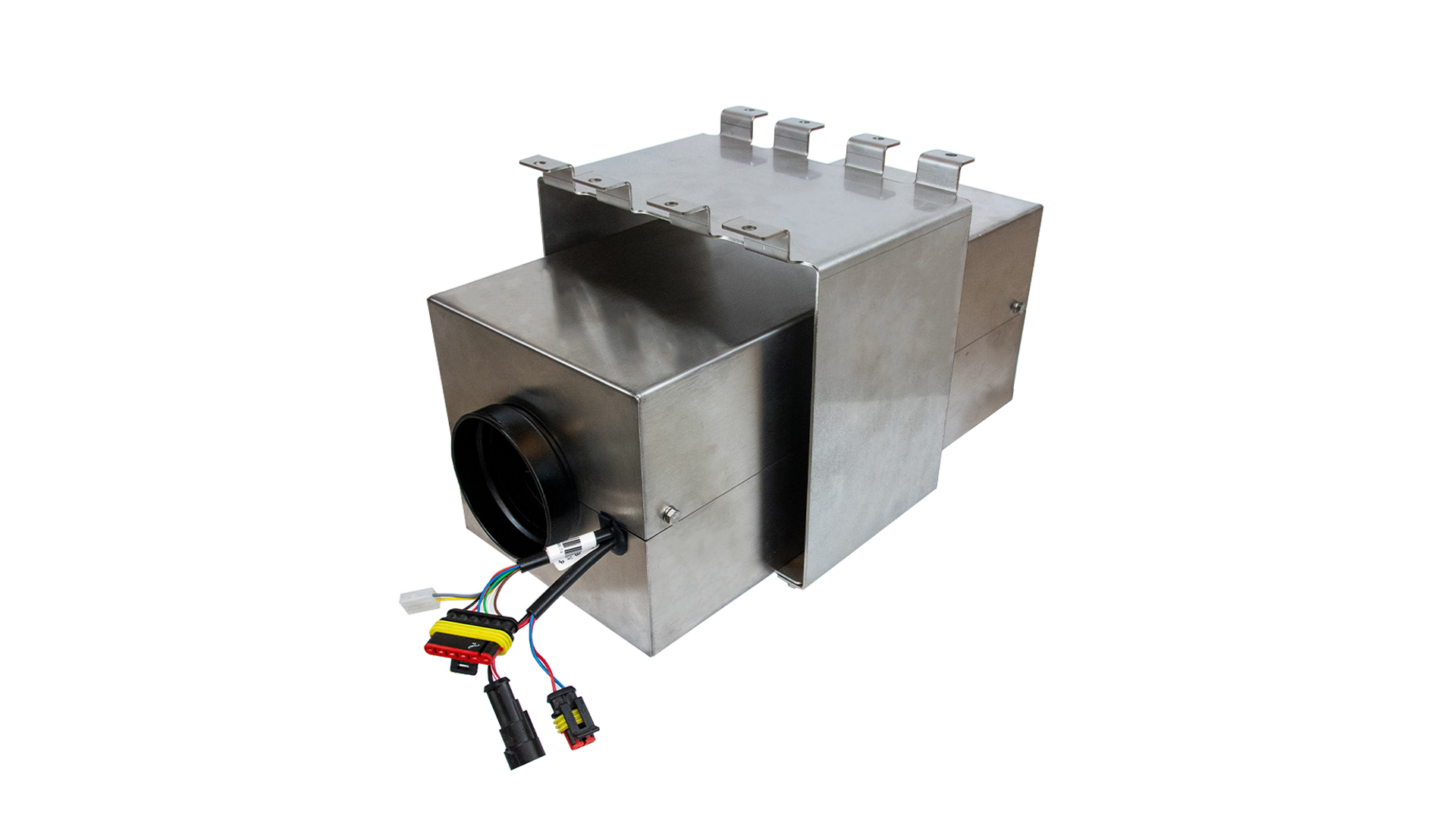

AIR 4D Mounting box (assy.AT5-0025-A24)
AIR 2D Mounting box ( assy. AT0019).
Material: Stainless steel (AISI 316)

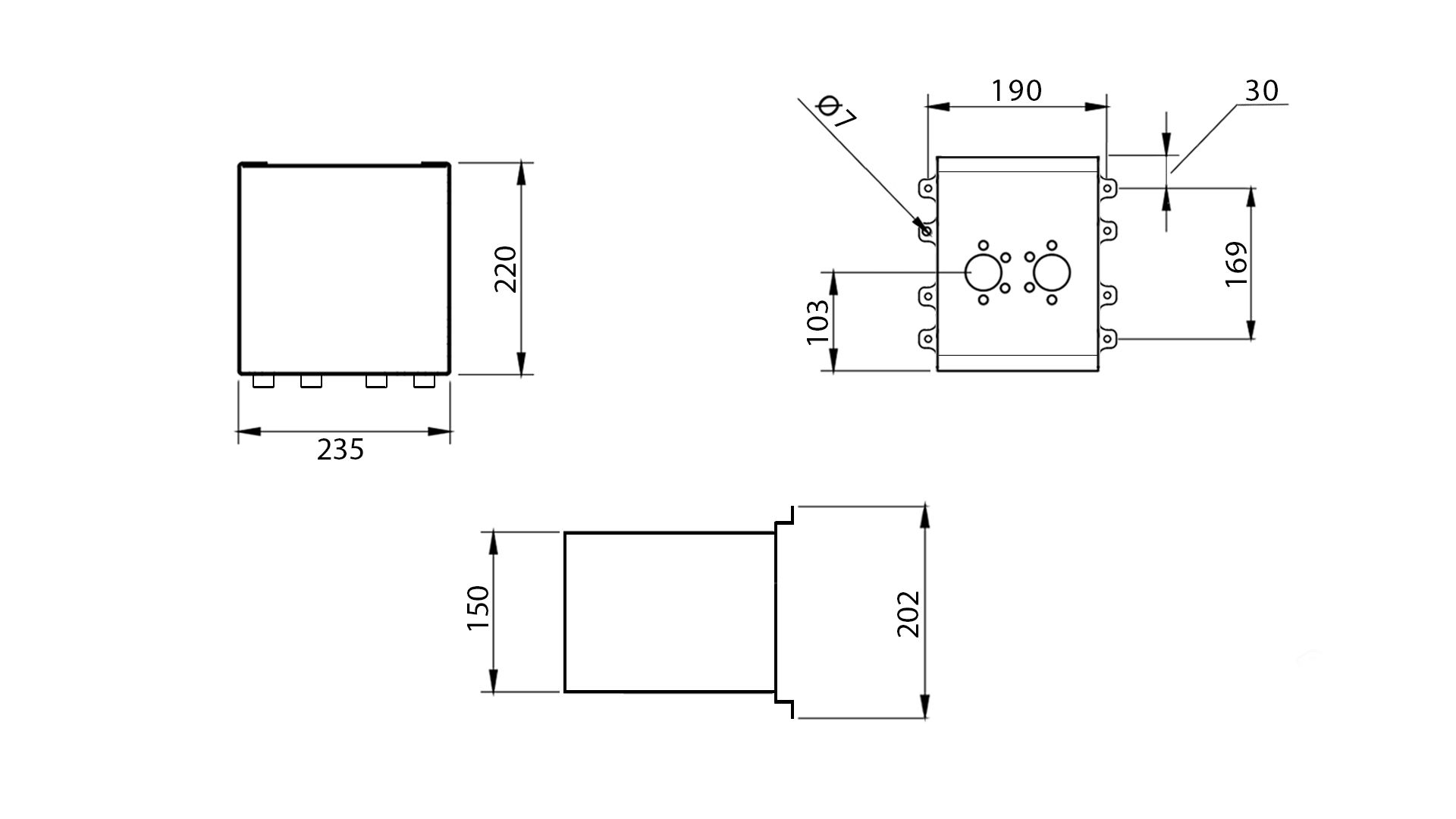

Dimensions: 243x203x235mm
To fit this mounting bracket on uneven surfaces it's possible to mechanically remove 1 peg from each side.
For installations with less space, we suggest checking out our other mounting bracket type (assy. AT0019).
** Please note that the heater's correct/allowed position & angle must be done according to the installation manual of the heaters.
About
Wall installation with combustion air inlet / exhaust outlet positioned downward
Wall installation with combustion air inlet / exhaust outlet positioned to the side
Underfloor installation with combustion air inlet / exhaust outlet positioned downward
Underfloor installation with combustion air inlet / exhaust outlet positioned to the side
Installation above the floor with combustion air inlet / exhaust outlet positioned downward
Installation above the floor with combustion air inlet / exhaust outlet positioned to the side
Ceiling installation with combustion air inlet / exhaust outlet positioned downward
Ceiling installation with combustion air inlet / exhaust outlet positioned to the side
Dimensions
| Weight (kg) | 0.0 |
|---|---|
| Length (cm) | 0.0 |
| Width (cm) | 0.0 |
| Height (cm) | 0.0 |
Attributes
| Category | Air heater |
|---|---|
| Air heater | AUTOTERM Air 4D |
| Accessories | Mounting |
