Expansion tank
Overview
Capacity: 6 L / AISI 304
Technical

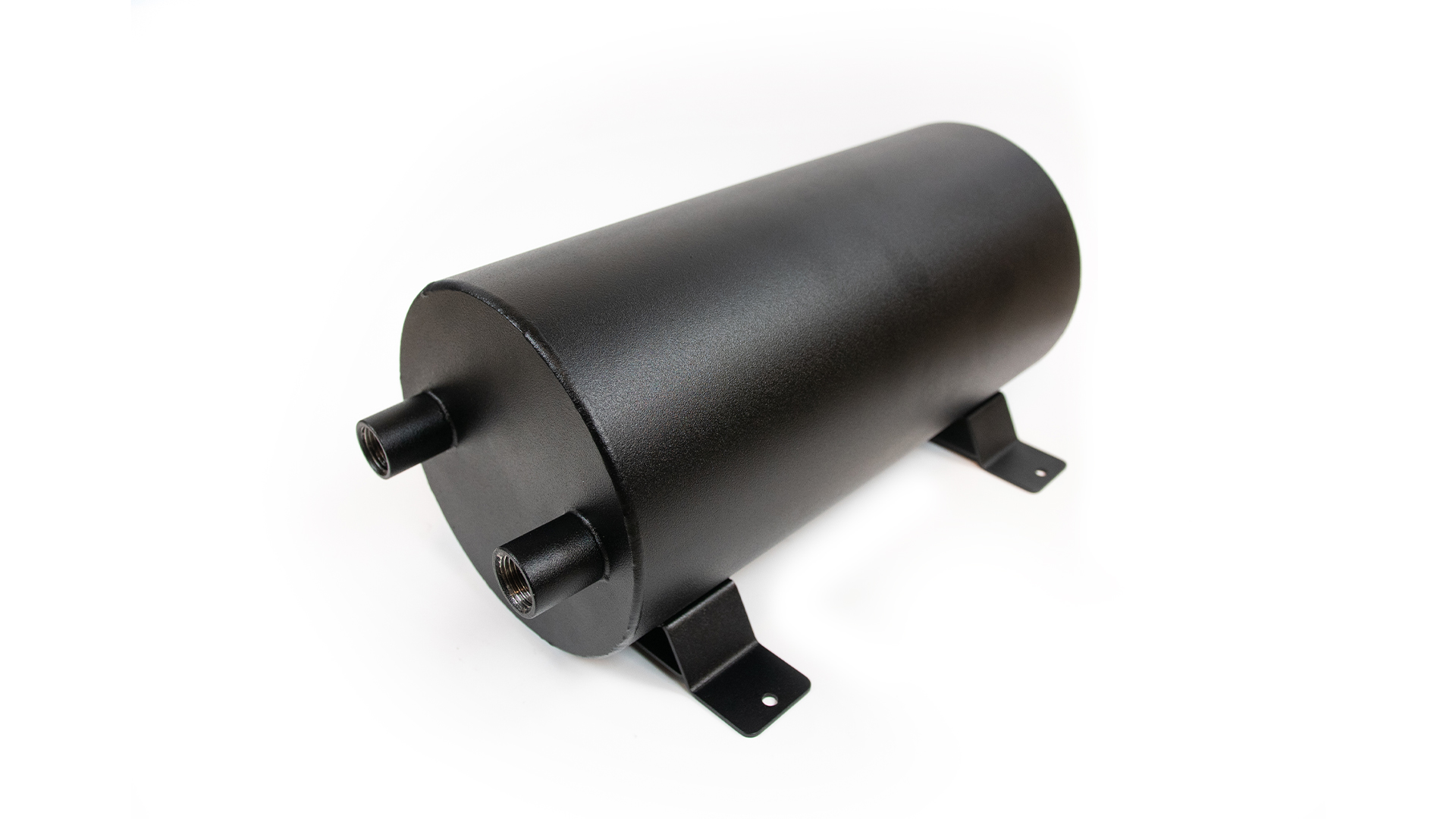

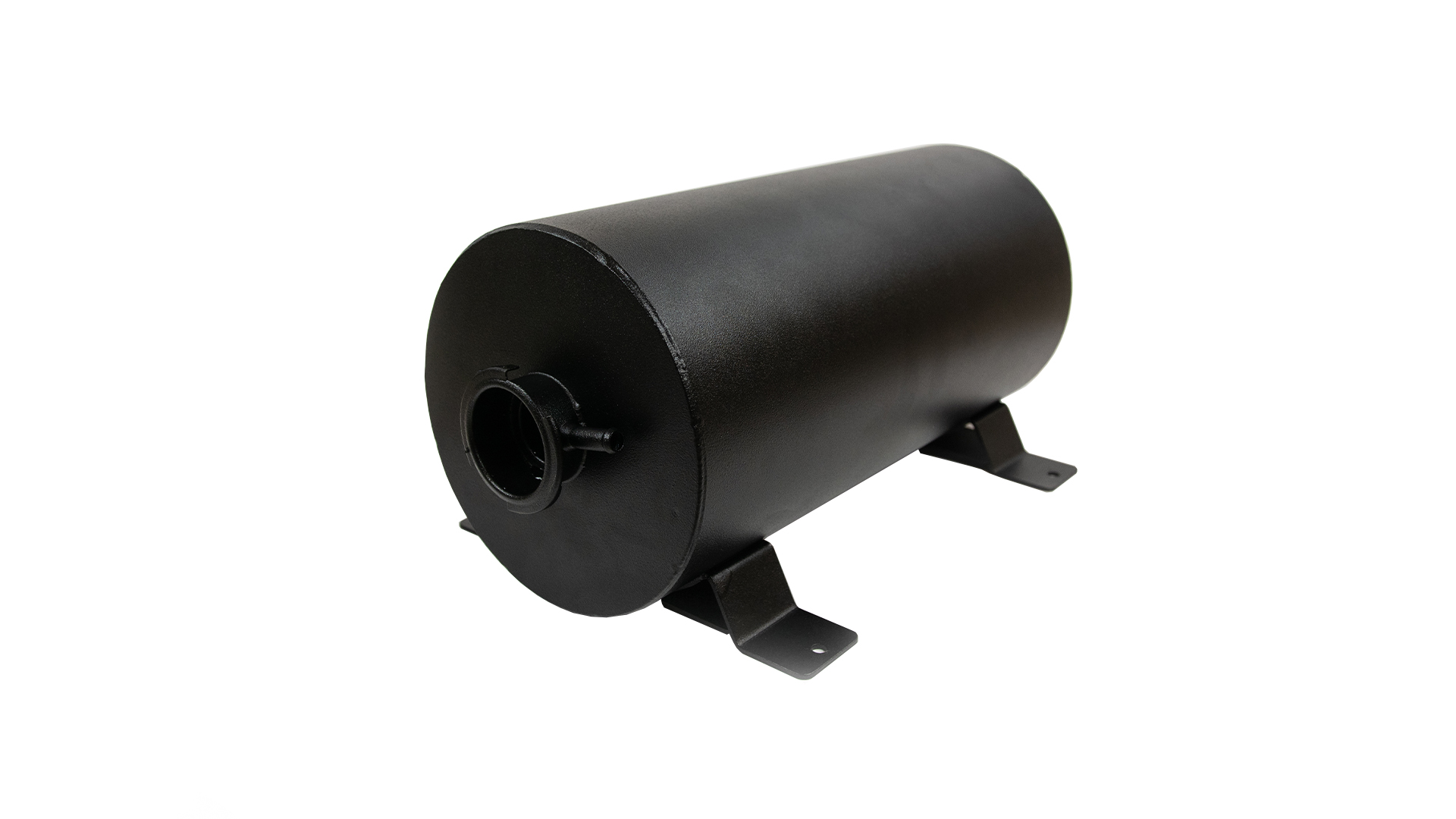

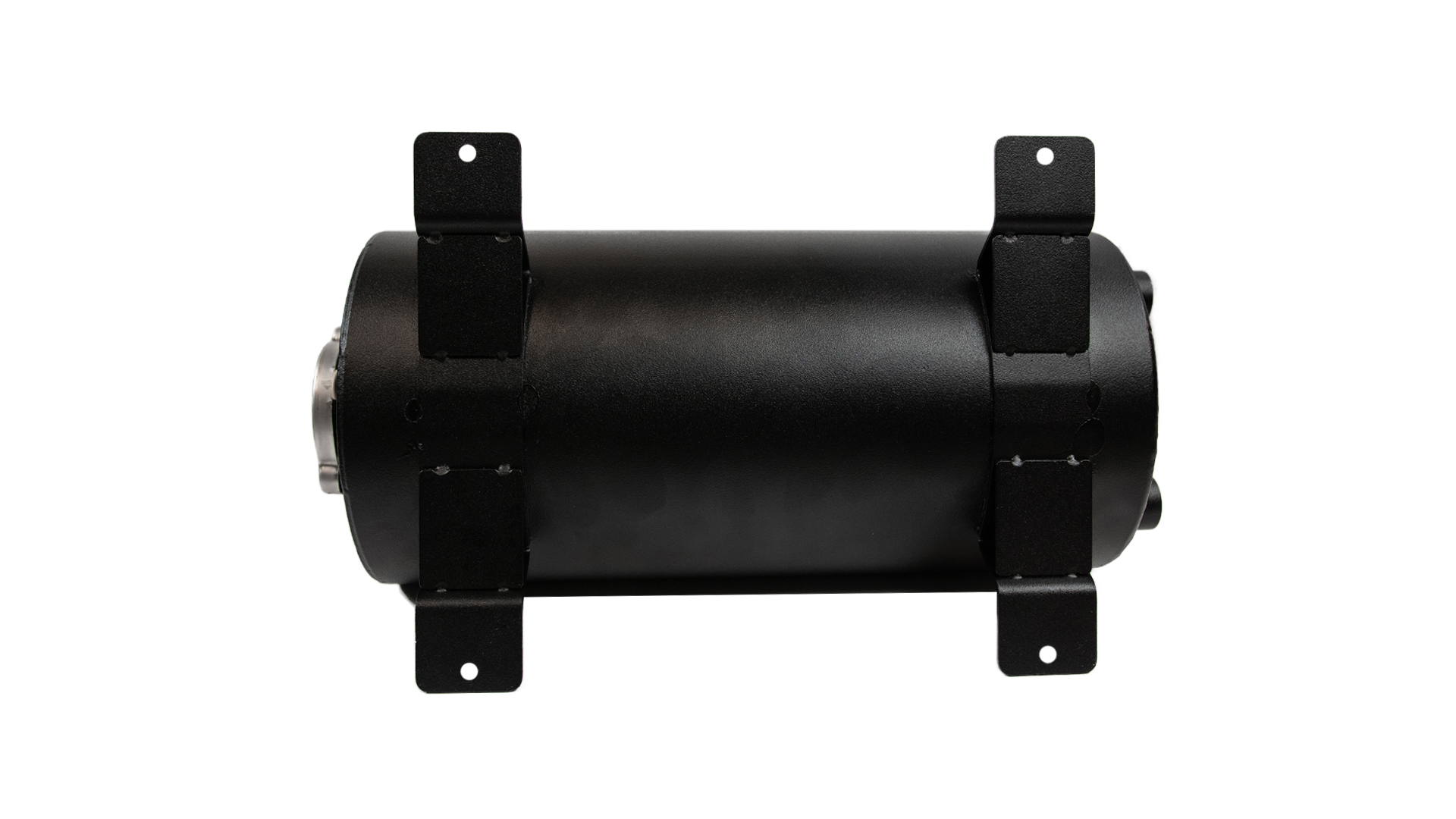

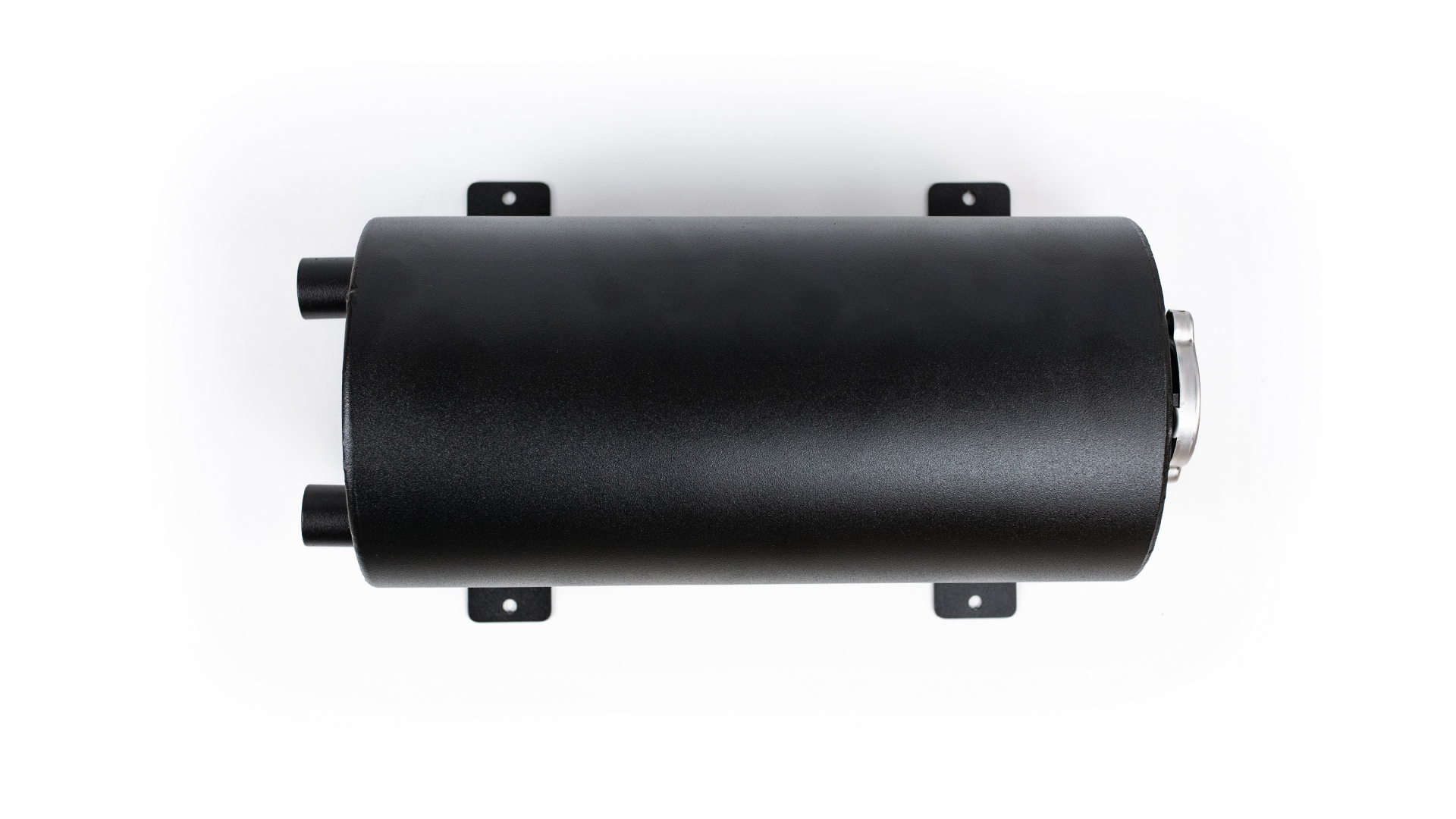

This 6 L expansion tank is meant for use in heating systems that are independent of the vehicle engine.
Use it as an expansion tank or as a hot coolant accumulator tank. Equipped with 2 inlets/outlets with 1/2’’ thread size.

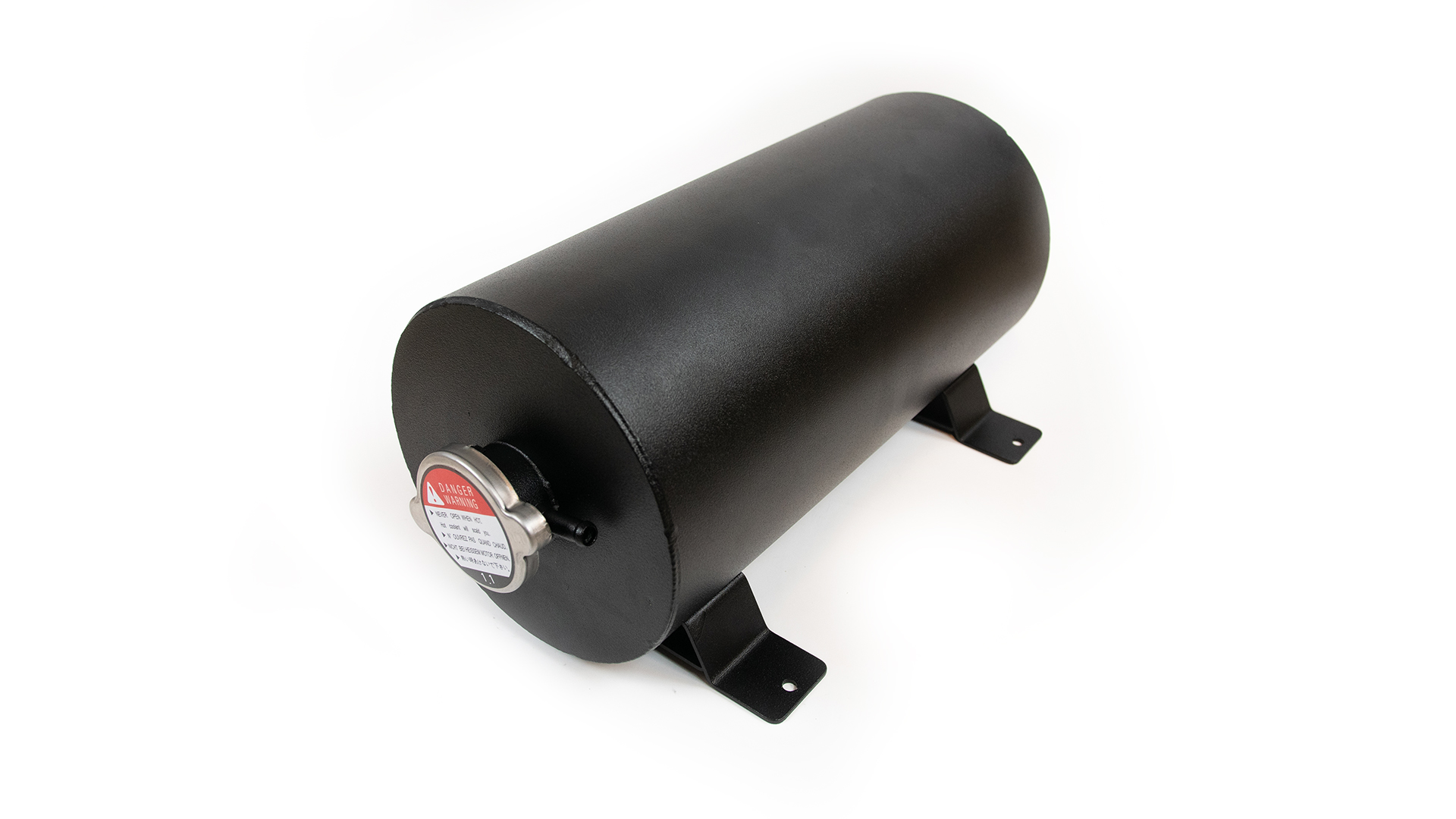

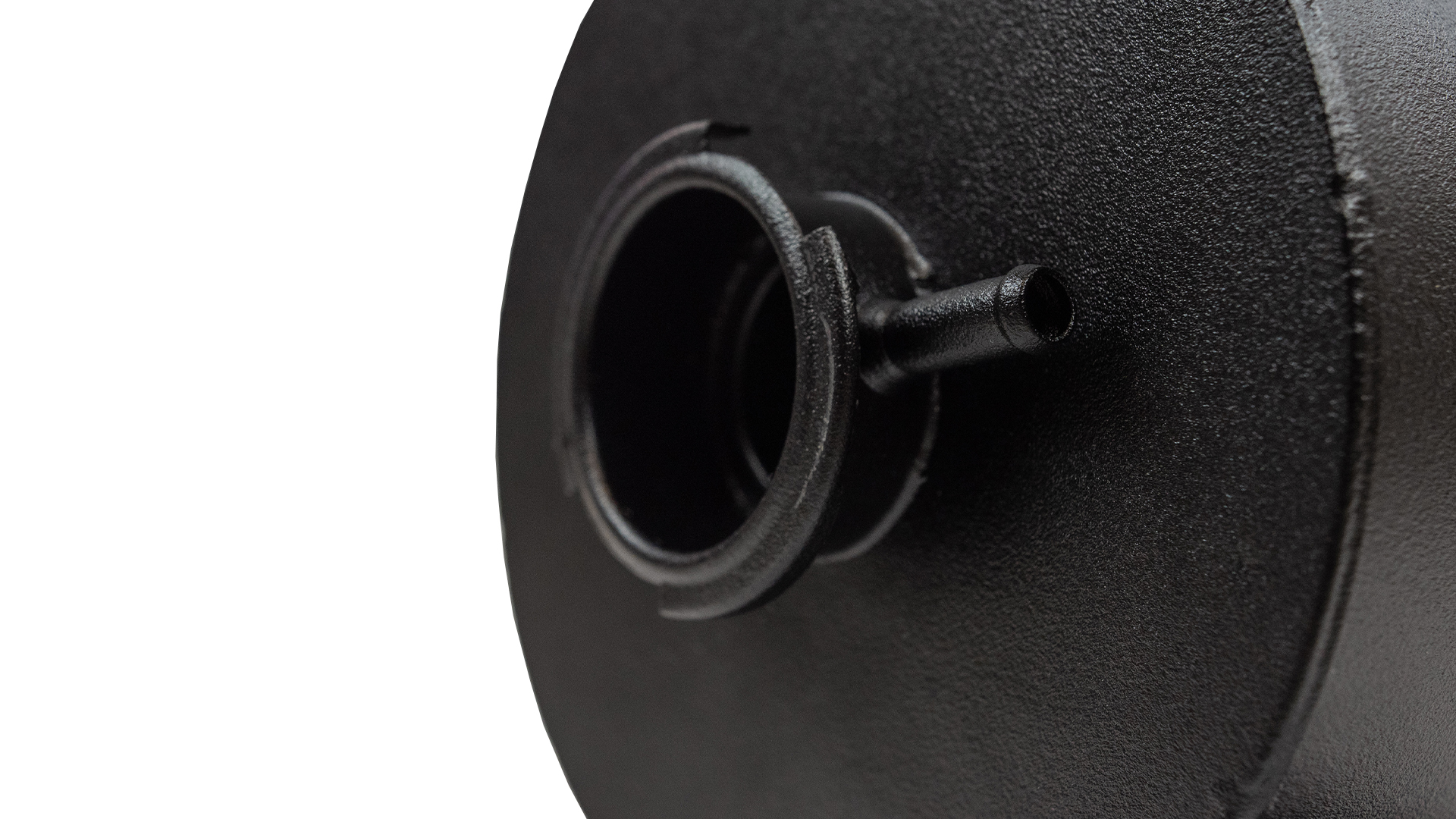

The pressure cap that is included in the supply kit has a pressure release of 1.1 bar.

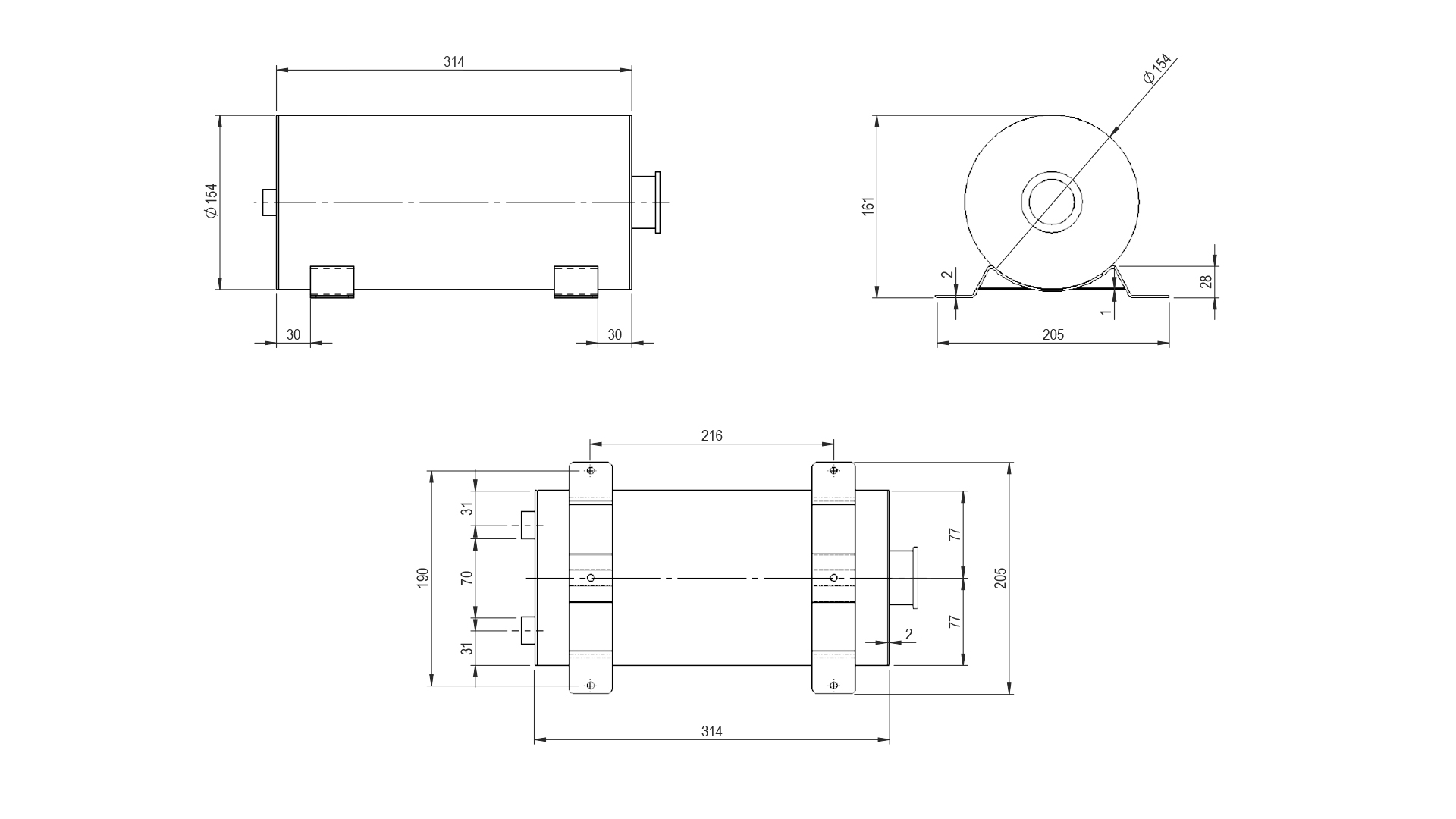

Size: 314x205x161mm
Recommended parts:
AT0063 - Brass hose adapter with thread: 1/2'' / OD: 16 mm
AT0064 - Brass hose adapter with thread: 1/2'' / OD: 18 mm
AT0065 - Brass hose adapter with thread: 1/2'' / OD: 20 mm
AT0066 - Brass cap with thread: 1/2''
* Fittings/plugs for water hose connections are not included in the supply kit.
Dimensions
| Weight (kg) | 0.0 |
|---|---|
| Length (cm) | 0.0 |
| Width (cm) | 0.0 |
| Height (cm) | 0.0 |
Attributes
| Accessories | Coolant system |
|---|
